Ceramic plate

As a ceramic plate types product manufacturer
We produce multi sizes and shapes of the cermaic plates/sheet/dics/board/block
Also can be customized by customers requires

The features of the ceramics:
insulating/wear resistance/high corrosion/high temperature resistance/high thermal conductive...

Optional materials are available:
· 95%--99.99% Alumina (Al2O3)   · Silicon Carbide   · Silicon Nitride
· Zirconia (ZrO2
TTZ /YTZP/ZDY)...
Shape: Rectangle, square, circle, semicircle, irregular, hole, customizable
Sizes:
The thinnest thickness is 0.05mm, the max width is 550mm
Ceramic plate application industries:
Metal industry,Semiconductor processing
Electrical and thermal insulation, Surface treatment
Electronics, sensors,Laser technology, Energy technology
Environmental technology, Fluid technology, Optics
Friction-reduction, wear- and corrosion -protection
High temperature applications, Energy technology
Mechanical and chemical process,Vacuum technology
Other industries
Do not find your need products on this page? and For more details like price,delivery time,precision,samples...please contact us now!!!
Quick Free Quote . Our official E-mail:
admin@cerampart.com

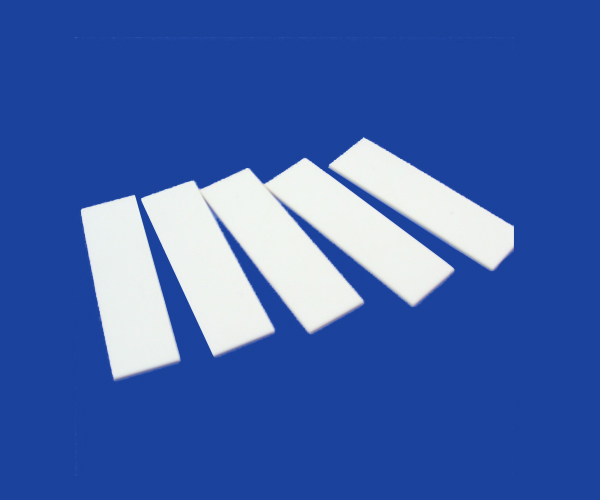

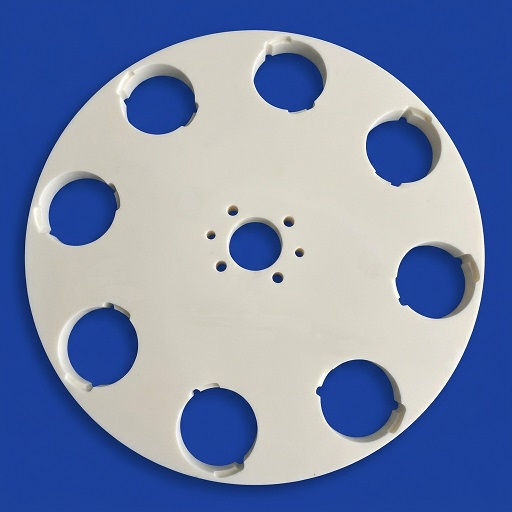

ceramic plate

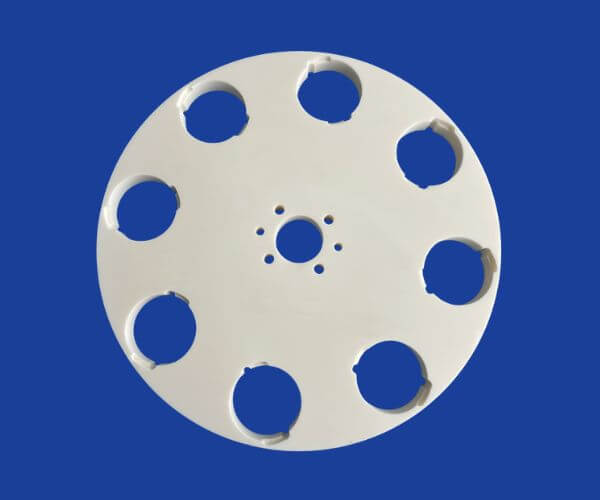

ceramic plate



Free quotes notice:
  • 2020/07/08 - Germany - What is the positioning length of your welding pins?

    2020/07/08 - Malaysia - What's the strength of your ceramic pins?

    2020/07/08 - Italy - How is the insulation of your ceramic plates?

    2020/07/08 - Germany - Can your ceramic parts achieve the accuracy of 0.05mm? I need to make a

    2020/07/08 - Canada - 0.32''ID ceramic sleeve for wire . do you have them. high corrosion res

    2020/07/08 - America - hello, do you have 1/4'' ceramic rods, i need to machining rings...

    2020/07/08 - America - hi, I'm interested in your ceramic tubes, please offer us fob price...

    2020/07/03 - Sweden - hi, how much the ceramic shaft with smoothness...

    2020/07/03 - Slovenia - hello admin, please send the fob price of the custom part for laser to

    2020/07/03 - Sweden - good afternoon, i need 60 pics ceramic rods...

    2020/07/03 - Malaysia - do you produce the zirconia tube with threadhead???

    2020/07/03 - Italy - hi sir, do you offer custom thermal ceramic sheet like the drawing i se

    2020/07/03 - Germany - do you have thermal insulating plate. i need them to machining a 4 hole

    2020/07/03 - Canada - good morning. how much the custom ceramic bushing 0.95'' ID ??

    2020/07/03 - America - 0.21'' id ceramic washer i looking for ....

    2020/07/03 - Malaysia - hi, our projection need 1/6'' ceramic tubes , how much them???

    2020/06/28 - Malaysia - hi, i find who can produce the ceramic parts like this drawing , can yo

    2020/06/28 - Italy - hello admin, do you send the fob price of 0.26'' ceramic washer to me??

    2020/06/28 - Australia - hi factory, can you produce the 50*75mm ceramic sheet prat with high in

    2020/06/28 - Germany - good day, do you have 10.3*13.5*0.2mm alumina sheet?? the strength weat

    2020/06/28 - Canada - what the price of the 9.5*9.5mm alumina plate?? shipping to canada

    2020/06/28 - America - how much the 0.43'' ceramic tubes???

    2020/06/27 - Canada - What's the strength of your ceramic gaskets?? i find 0.23'' OD ceramic

    2020/06/27 - Canada - What's the hardness level of your ceramic bushings??

    2020/06/27 - Italy - Can the flatness of your ceramic plates reach 0.01???

    2020/06/27 - Germany - good afternoon, 0.53'' Id ceramic rods i need 10 sample to machining th

    2020/06/27 - Germany - hello, the 0.32'' ceramic tubing i need 55 pecs...

    2020/06/27 - America - hi, do you have 0.6'' ceramic valve cores???

    2020/06/26 - Italy - hi, how much the 0.32'' ceramic rods...

    2020/06/26 - Malaysia - dear admin, l am looking for the 0.25'' thickness ceramic sheet...

  • Related Products:
    All 1page20records
    • Ceramic materials(include but not limited belows)
      · 95%--99.99% Alumina (Al2O3)   · Silicon Carbide   · Silicon Nitride  · TTZ: Magnesia partially stabilized Zirconia (ZrO2)
      · YTZP: Yttria partially stabilized Zirconia (ZrO2)   · ZDY: Yttria fully stabilized Zirconia (ZrO2)...



      Al 23
      ZrO2/Y2O3 ZrO2/MgO MgO SiC Si3N4 Reaction sintered Si3N4 Hot pressed ALN
      Physical properties
      Density (g/cm3) 3,9 5,9 5,75 3,58 3,2 3,27 3,29 3,26
      Molecular weight (g/mole) 102 - - 40,4 40,1 140 140 41
      Maximum service temperature air (°C) 1700- 1800 1500 1000 2200 1500 1200- 1500 1100- 1600 1000- 1800
      Mechanical properties
      Hardness (Mohs) 9 - - 5,5 9 - - 7
      Modulus of elasticity (GPa) 300-400 200 200 250-300 420 170-220 280-310 318
      Poisson's ratio 0,25 - - 0,18 0,14 0,25-0,26 0,27 0,25
      Fracture toughness (MPa.m1/2) 2-3 7-13 6-10 - 2,5-3,5 3,5-5 6,1 4,5
      Electrical properties
      Dielectric constant 9-10 - - 9-10 - 10 10 9,2
      Electrical resistivity at 20°C (Ohm.cm) >10 14 10 13-10 14 >10 10 - 10 2-10 6 >10 7 10 12- 10 15 >10 14
      Dielectric strength (kV/mm) 10-20 9 2-10 - - - - 15
      Thermal properties
      Specific heat (J/K/kg) 900 400-500 420 870-880 750 690 680-800 800
      Thermal conductivity (W/m/K) at 20°C 26-35 2,2-3,2 1,5-2,5 40-50 63-155 9-30 15-43 180
      Coefficient of thermal expansion ( 10-6) from 20 to 1000°C 8-9 10-11 5-16 10-13 4-5 3 3,3 4,4-5,3
      Melting point (°C) 2050 2590 - 2800 2500 1900 1900 2200


    • Ceramics are oxides, carbides, nitrides and borons of metal ions. Generally speaking, they are inorganic and non-metallic. Ceramics play an important role in our daily life. The development of ceramics has helped to reduce industrial demand. Compared with other materials, ceramics have some unique properties.
      Physical Properties:
      ·Volume

      ·Density
      ·Melting point
      ·Boiling point
      ·Heat capacity
      ·Index of reflection
      ·Porosity (also we refer pore size)
      Mechanical Properties:
      ·compressive strength
      ·shear strength
      ·fracture toughness
      ·elasticity or plasticity
      ·ductility
      ·Hardness

      Electrical Properties:
      ·dielectric strength
      ·electrical conductivity
      ·insulating properties
      ·semiconducting properties
      ·superconducting properties
      ·dielectric constant

      Thermal Properties:
      ·insulating properties
      ·semi-conducting properties
      ·thermal conductivity
      ·thermal expansion
      ·thermal shock resistance
      Chemical Properties:
      ·alkali attack resistance
      ·acid attack resistance
      ·corrosion resistances


      Other ceramic properties...

      Know more details of the ceramics property, contact us : admin@cerampart.com


    • Customization & Machining Service:
      As a ceramic parts manufacturer,us offer a wide of the ceramic specification,and customized&machinables. Get a Quote On Your Customized Now!!  or up a files by (email:admin@cerampart.com).

      Our Custom Capabilities:
      1.High Purity Martoxid Powder
      2.OEM Support, More Than 10 Technicians With 5-Year R&D Experience
      3.35000 ㎡workshop, annual output could reach hundred million pieces.
      4.All crafts are inspected strictly based on drawings,checked each month.
      5.Best Service And Quick Delivery Via Fedex,DHL,UPS,TNT Etc.
      Technical reference of manufacture
      Dimensional accuracy Up to 0.001mm
      Concentricity Up to 0.003mm
      Parallelism Up to 0.002mm
      The inner hole tolerance The minimum  0.005mm
      Straight flute The narrowest 0.1x100mm
      The thickness of the size Minimum to 0.02mm
      The screw thread Minimum internal thread M2
      Cylindricity Up to 0.004mm
      The linear tolerance Up to 0.001mm
      The smallest aperture The minimum 0.07mm
      Precision process CNC maching,grinding,lapping
      Surface finish Glazed,polishing or metallized


    • The general specifications service
      1. Factory price with a discounts
      2. Fast shipment within 24 hours
      3. In stocks for hot sales sizes
      4. MOQ:1qty
      The Custom service
      1. Can be custom for special sizes by drawing
      2. Can offer a samples within 2 days
      3. The delivery time within 20 days after confirmed the order
      4. Factory price and Senior ceramic engineer service
      FAQ
      1. Monthly Capacity: 50,000-60,000 pcs;
      2. Material: OEM or as per your suggestion;
      3. Lead time: about 7-20 days, pls confirm the quantities required;
      4. Incoterm: FOB, CFR, CIF;etc
      5. Delivery Cost: It is determinated by the destination port;
      6. Payment Term: PayPal; T/T; L/C; etc.
      7. Shipment: by sea, by air, by courier, by post, etc.
