Ceramic plate

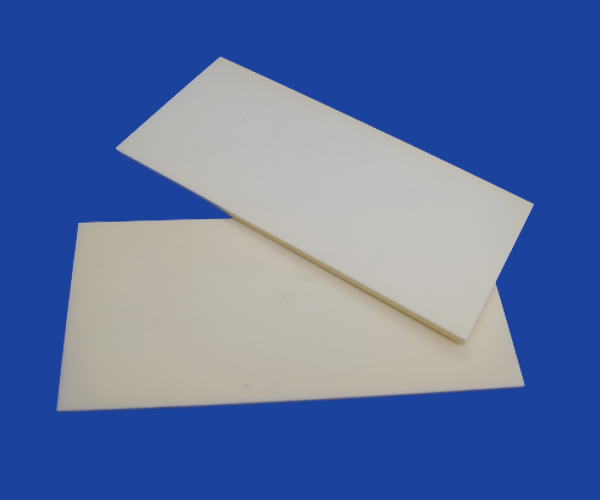

Zirconia Plates YSZ Yttrium Stabilized Zirconia MSZ Magnesium Stabilized Zirconia ZrO2 Ceramic Plates
  • Materials:YSZ MSZ Zirconia(ZrO2)
  • Sizes:Max Length/width:450mmThickness:0.2mm...
  • Delivery times:2 -25 days(depends on the quantity)
  • Precision:Ra 0.1um tolerance: 0.001mm... etc
  • Features:Heat resistance / Wear resistance / High purity / Refractory / High Corrosion / Good Insulation
  • Customized:zirconia ceramic plate can be custom for special sizes and shapes
    1. Factory price and shipment within 24 hours In stocks
    2. MOQ:1qty
    3. Payment Term: PayPal; T/T; L/C etc.
    4. Shipment: by sea by air by courier by post etc.
Free quotes notice:
  • 2020/10/11 - Romania - What's the price for 4"x4"x0.12" (100 mm x 100 mm x 3 mm

    2020/10/11 - Greece - We are looking Ceramic Cylinder. We need 3 pcs item and one repair kit

    2020/10/11 - Italy - Hi We require some ceramic machinery parts for a pump

    2020/10/11 - Spain - Please send updated price list of ceramic welding pins

    2020/10/11 - Germany - I want to buy alumina ceramic tubes: length 250 - 500 mm, OD: ~ 6mm,

    2020/10/08 - Anguilla - Hi i need blue pins but i need my dimensiones.I could send You a drawin

    2020/10/08 - Canada - Hello I am looking for a replacement shaft part for this machine

    2020/10/08 - America - Good day,Please kindly quote us,ceramic ball bearing

    2020/10/08 - Islands - I have drawings for small aluminum parts I would like you to quote on.

    2020/10/08 - Mexico - Dear mam,we have requirement of component attached with this mail.

    2020/10/08 - America - I need this ceramics modling plate to test in a new design machined too

    2020/10/08 - Canada - Hello.I need a sample of 96%Al2O3 bushing...

    2020/10/07 - Turkey - looking for valves with channel .4mm

    2020/10/07 - India - 99 Alumina Ceramic Tube height: 9mmwidth: 10mmhole:

    2020/10/07 - Philippines - Greetings 10 mm outer 5 mm inner 30 mm long piston spindle required pri

    2020/10/07 - Singapore - Hi, I'm looking for Ceramic threaded rod, ØM6 x 45mm Length.

    2020/10/07 - Malaysia - We are in need of thin alumina sheets of dimension 101.5 x 230 mm.

    2020/10/06 - Thailand - Hello,I'm looking for cylinders made of alumina ceramic...

    2020/10/06 - Malaysia - I need for my scientific researh to buy about 10 ceramic rods with

    2020/10/06 - Singapore - we want to purchase porous ceramic rods size 1mm to 1.25 mm round.

    2020/10/06 - Korea - Hi, we have 2 end effects that we need qty 2 of each. Thanks

    2020/10/06 - Japan - working temperature over 1200℃ plate I'm looking for 3 pieces

    2020/10/05 - Ireland - how much a few (60) samples of heat resistant ceramic plates

    2020/10/05 - Switzerland - Dear We need your price offer for blue ZrO2 ceramic centering pins

    2020/10/05 - Germany - Hi I am looking for a ceramic impellar rod with rubber cap

    2020/10/05 - Poland - we are interested in thicker plates that range from 2 mm to 3 mm

    2020/10/05 - Russia - We would be interested in plates with a thickness of 1mm. If possible,

    2020/10/05 - Brazil - Good dayI am interested i a small of ceramicplate about 120 mm long and

    2020/10/05 - Colombia - Please send the quote for Alumina rod size 3.17mm dia x 40 mm length

    2020/09/28 - America - Please send me fob price on White Alumina Ceramic Rod Porcelain Parts


  • YSZ MSZ Zirconia Plates High Strength ZrO2 Zirconia Ceramic Plates


    We are a manufacturer of zirconia ceramic plates. which manufacture and sell different kinds of zirconia ceramic plates.At the same time support custom multi type zirconia plate. Zirconia is a very strong technical ceramic with excellent properties in hardness, fracture toughness, and corrosion resistance.



    Zirconia ceramic plate with different content:
    When CaO, MgO and Y2O3 are used as stabilizers, they are Ca-PSZ, Mg-PSZ and Y-PSZ, respectively.Tetragonal zirconia polycrysta (TZP) is composed of metastable t-zro2.When the added stabilizer is Y2O3 and CeO2, it can be expressed as y-tzp, ce-tzp, etc.

    Zirconia ceramics is a new type of ceramics, which are mainly divided into three types:
    magnesium stabilized zirconia ceramics plate (Mg-ZrO2)
    cerium stabilized zirconia
     plate(ZrO2 + CeO)
    yttrium stabilized zirconia  plate(YSZ)

    zirconia ceramic plate
    For the sizes , application . machining, customizes of the
    zirconia ceramic plate, we can do that.

    Some Zirconia ceramic plate sizes:

    Length Width Thickness
    inch mm inch mm inch mm
    8.66 220 8.66 220 0.011 0.3
    8.19 208 4.33 110 0.019 0.5
    6 152 6 152 0.039 1
    6 152 6 152 0.5 12.7
    6 152 6 152 0.78 2
    5.91 150 3.15 80 0.31 8
    4 102 3 76 0.24 6
    3.54 90 2.56 65 0.095 2.4
    2.36 60 0.39 10 0.2 5
    zirconia  Disk (99.7--99.99%)
    OD Thickness the shapes of zirconia plate we can offer: Square, round, semicircle, flange, polygon,others.
    we can offer machining:hole,polishing,incise,weld,sealing...
                  inch              mm              inch            mm
    1.65 42 0.011 0.3
    3.23 82 0.24 6
    1.26 32 0.039 1
    1.50  38 0.019 0.5
    2.00  51 0.095 2.4
     2.52  64 0.126 3.2
     3.00   76 0.126 3.2
     3.50   89 0.157 4
     3.50   102  0.189  4.8



    Technical Zirconia ceramic plate properties

    Properties Unit CeramaZirc CeramaZirc Plus CeramaZirc Nano-HIP
    Composition   Yttria Stabilized Yttria Stabilized Yttria Stabilized
    Color   Ivory Ivory Grey
    Mechanical
    Density g/cm3 6.05 6.05 6.07
    Youngs Modulus GPa 200 200 200
    Fracture toughness Mpa x m^1/2 8 8 8
    Poissons Ratio   0.30 0.30 0.30
    Compressive Strength MPa 2100 2100 2100
    Flexural Strength MPa 850 1200 1400
    Hardness (Vickers 500g) GPa 12.5 13.5 14.5
    Thermal
    Max Use Temp * °C 1000 1000 1000
    Coefficient of Expansion 10^-6/°C 10 10 10
    Thermal Conductivity, 25°C W/mK 2 2 2
    Thermal Shock Resistance ΔT °C 250 250 250
    Electrical
    Dielectric Strength 6.35mm ac-kV/mm 9.0 9.0 9.0
    Dielectric Constant 25° C 1 MHz 29 29 29
    Volume Resistivity
    25°C Ω cm >1 x 10^13 >1 x 10^13 >1 x 10^13
    300°C Ω cm 1 x 10^10 1 x 10^10 1 x 10^10
    500°C Ω cm 1 x 10^6 1 x 10^6 1 x 10^6
    700°C Ω cm 5 x 10 ^3 5 x 10 ^3 5 x 10 ^3



    Customization & Machining Service:
    As a zirconia ceramic plate manufacturer,us offer a wide of the zirconia ceramic plate specification,and customized&machinables. Get a Quote On Your Customized Now!!  or up a files by EMAIL.

    Our Custom Capabilities:
    1.High Purity Martoxid Powder
    2.OEM Support, More Than 10 Technicians With 5-Year R&D Experience
    3.35000 ㎡workshop, annual output could reach hundred million pieces.
    4.All crafts are inspected strictly based on drawings,checked each month.
    5.Best Service And Quick Delivery Via Fedex,DHL,UPS,TNT Etc.



    Technical reference of manufacture
    Dimensional accuracy Up to 0.001mm
    Concentricity Up to 0.003mm
    Parallelism Up to 0.002mm
    The inner hole tolerance The minimum  0.005mm
    Straight flute The narrowest 0.1x100mm
    The thickness of the size Minimum to 0.02mm
    The screw thread Minimum internal thread M2
    Cylindricity Up to 0.004mm
    The linear tolerance Up to 0.001mm
    The smallest aperture The minimum 0.07mm
    Precision process CNC maching,grinding,lapping
    Surface finish Glazed,polishing or metallized
