Zirconia is a white, crystalline oxide with a melting point of approximately 2715°C and excellent chemical inertness and mechanical properties. According to the Encyclopædia Britannica, zirconia is widely known for its outstanding high-temperature stability and strength. However, pure zirconia undergoes phase transitions between monoclinic, tetragonal, and cubic crystal phases at different temperatures; these phase transitions are accompanied by a volume expansion of approximately 3–5%, which can cause cracking during the cooling process.



To overcome this structural instability, scientists incorporate yttrium oxide (Y2O3) into the zirconia lattice to form yttria stabilized zirconia (YSZ). Yttrium ions replace some of the zirconium ions, creating oxygen vacancies that stabilize the tetragonal or cubic phases, allowing the material to maintain a stable crystal structure over a temperature range from room temperature to 1400°C. The coefficient of thermal expansion is reduced to 10.5 × 10⁻⁶/°C (20–1000°C), while the fracture toughness reaches as high as 6–12 MPa·m¹/², . This significantly enhances the material’s mechanical toughness, thermal shock resistance, ionic conductivity, and chemical stability. Therefore, yttrium-stabilized zirconia has become an ideal high-performance material suitable for harsh environments.



We have already discussed the types and comparisons of YSZ ceramics in detail in previous articles, so we will not repeat them here. Here is a brief summary.


Partially Stabilized Zirconia (PSZ): Combines cubic and tetragonal phases, resulting in enhanced toughness.



YSZ possesses the following comprehensive properties:

    * High oxygen ion conductivity (a core property for electrochemical devices)
    * Extremely high thermal stability, capable of withstanding extremely high temperatures
    * Low thermal conductivity, providing excellent thermal insulation properties
    * Outstanding mechanical toughness and crack resistance
    * High chemical inertness, resistant to acid and alkali corrosion
    * Excellent wear resistance, suitable for high load dynamic application
    * These characteristics make YSZ a versatile material for extreme environments.

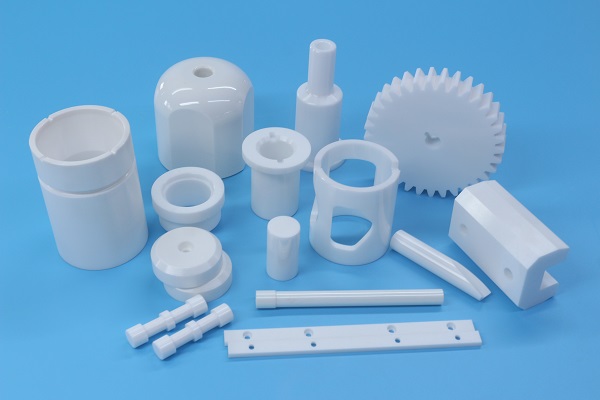

Yttria Stabilized Zirconia YSZ Ceramic Parts    Source: Mingrui Ceramic




1. The Core of Solid Oxide Fuel Cells (SOFCs)—the Electrolyte

At high temperatures, it precisely allows only oxygen ions to pass through, acting like a smart gate that efficiently and cleanly converts the chemical energy of fuels (such as hydrogen) into electrical energy, without combustion or pollution. With the surging demand for electricity in data centers, particularly the need for rapid response off-grid power generation in Europe and the United States, the commercial advantages of SOFCs have become evident. The global SOFC market is ready for explosive growth, and YSZ will play a unique role in this development.



As noted by the U.S. Department of Energy, SOFCs using YSZ electrolytes offer high efficiency and fuel flexibility. Mingrui Ceramic has extensive experience in manufacturing ceramic components for SOFCs, and some of our customers are the key players in this field.



2. Wear-Resistant Components

Components such as YSZ rods, ceramic pump seals, cutting tools, and bearings maintain a long service life in high temperature or chemically corrosive environments. The high hardness, high toughness, and resistance to wear and corrosion properties make YSZ suitable for use as ultrafine grinding ceramic balls to pulverize high-hardness materials, as well as for ceramic cutting tools capable of high speed machining of difficult-to-machine metals.



3. Refractory Materials

Glass melting furnaces have extremely stringent requirements on refractory materials, and any contamination from the furnace lining can result in the entire batch of glass being scrapped. Therefore, in critical areas such as the walls and bottom of the melt pool, YSZ ceramics are necessary. Their dense structure and extremely low glass phase leaching rate ensure the purity of the molten glass. In the upper structure of the furnace and in the production of specialty glass, high-purity zirconia refractories are also the optimal choice for their erosion resistance and low contamination.



4. Aircraft—Heat Shield Coatings

During operation, jet and rocket engines reach internal temperatures exceeding 1,500°C, which metal blades simply cannot withstand. What is the solution? Engineers have coated the blades with an ultra-thin layer of YSZ ceramic—a thermal barrier coating (TBC). YSZ has extremely low thermal conductivity, allowing the temperature of the metal substrate to drop by hundreds of degrees Celsius while withstanding severe thermal shock. Without it, the performance and service life of modern aircraft engines would be significantly compromised.



5. Oxygen Sensors

YSZ’s ionic conductivity makes it the core material for automotive exhaust sensors and industrial oxygen sensors, which are used to maintain the ideal air-fuel ratio in engines.



6. Medical and Dental Implants

YSZ offers excellent biocompatibility, strength, and aesthetic appeal, making it a common material for dental crowns, bridges, and hip and knee joint replacements.



6. Thin-Film Applications

YSZ thin films are used as buffer layers in high-temperature superconductors, integrated circuits, and photovoltaic devices to reduce lattice mismatch and improve crystal quality.



7. Catalytic Support

In automotive catalytic converters and high-temperature catalytic processes, YSZ serves as a support material with excellent oxygen ion migration properties.



From traditional industries to the new energy sector, from defense applications to everyday life, YSZ ceramic parts can be found virtually everywhere. It is a remarkable material that truly has the power to change the world!
