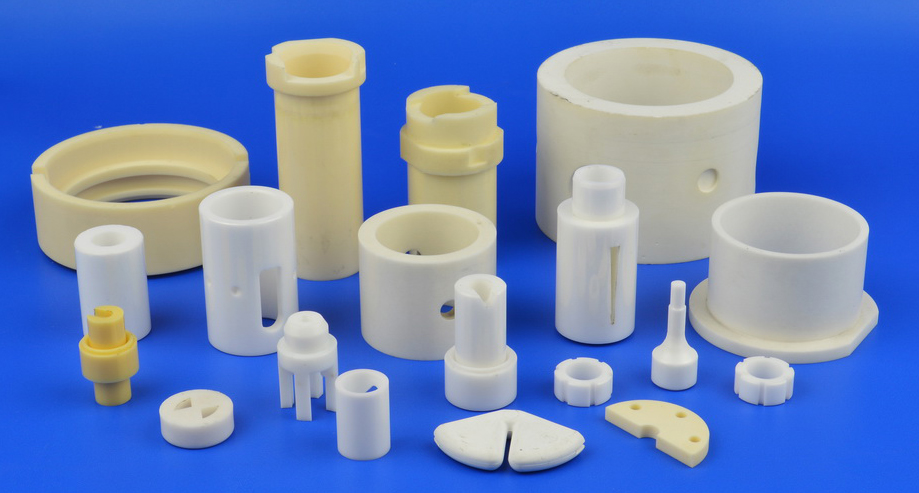

Customized precision ceramic parts& components for mould injection Sample mould injection Ceramic Applications: ·Parts for guide positioning(Guide pins, Guide bushings and Support pins) ·Control parts of mold opening(Tension links, Parting locks, Puller bolts,Mold opening prevention plates) ·Parts for ejector space(Ejector guide pins) ·Components for ejector space(Return pins, Support pillars) ·Locating rings ·Runner lock pins ·Sprue bushings ·Screws, Coil spring and parts ·Heat insulator sheets |
Fields of application:
Sanding machines, airflow textile machines, electronic cigarettes, wire stretching machines, etc... |
|
|
Al 2O 3 |
ZrO2/Y2O3 | ZrO2/MgO | MgO | SiC | Si3N4 Reaction sintered | Si3N4 Hot pressed | ALN |
| Physical properties | ||||||||
| Density (g/cm3) | 3,9 | 5,9 | 5,75 | 3,58 | 3,2 | 3,27 | 3,29 | 3,26 |
| Molecular weight (g/mole) | 102 | - | - | 40,4 | 40,1 | 140 | 140 | 41 |
| Maximum service temperature air (°C) | 1700- 1800 | 1500 | 1000 | 2200 | 1500 | 1200- 1500 | 1100- 1600 | 1000- 1800 |
| Mechanical properties | ||||||||
| Hardness (Mohs) | 9 | - | - | 5,5 | 9 | - | - | 7 |
| Modulus of elasticity (GPa) | 300-400 | 200 | 200 | 250-300 | 420 | 170-220 | 280-310 | 318 |
| Poisson's ratio | 0,25 | - | - | 0,18 | 0,14 | 0,25-0,26 | 0,27 | 0,25 |
| Fracture toughness (MPa.m1/2) | 2-3 | 7-13 | 6-10 | - | 2,5-3,5 | 3,5-5 | 6,1 | 4,5 |
| Electrical properties | ||||||||
| Dielectric constant | 9-10 | - | - | 9-10 | - | 10 | 10 | 9,2 |
| Electrical resistivity at 20°C (Ohm.cm) | >10 14 | 10 13-10 14 | >10 10 | - | 10 2-10 6 | >10 7 | 10 12- 10 15 | >10 14 |
| Dielectric strength (kV/mm) | 10-20 | 9 | 2-10 | - | - | - | - | 15 |
| Thermal properties | ||||||||
| Specific heat (J/K/kg) | 900 | 400-500 | 420 | 870-880 | 750 | 690 | 680-800 | 800 |
| Thermal conductivity (W/m/K) at 20°C | 26-35 | 2,2-3,2 | 1,5-2,5 | 40-50 | 63-155 | 9-30 | 15-43 | 180 |
| Coefficient of thermal expansion ( 10-6) from 20 to 1000°C | 8-9 | 10-11 | 5-16 | 10-13 | 4-5 | 3 | 3,3 | 4,4-5,3 |
| Melting point (°C) | 2050 | 2590 | - | 2800 | 2500 | 1900 | 1900 |
2200 |
|
Physical Properties:
·Volume ·Density ·Melting point ·Boiling point ·Heat capacity ·Index of reflection ·Porosity (also we refer pore size) |
Mechanical Properties: ·compressive strength ·shear strength ·fracture toughness ·elasticity or plasticity ·ductility ·Hardness |
Electrical Properties: ·dielectric strength ·electrical conductivity ·insulating properties ·semiconducting properties ·superconducting properties ·dielectric constant |
|
Thermal Properties:
·insulating properties ·semi-conducting properties ·thermal conductivity ·thermal expansion ·thermal shock resistance |
Chemical Properties: ·alkali attack resistance ·acid attack resistance ·corrosion resistances |
Other ceramic properties... |
Know more details of the ceramics property, contact us ： admin@cerampart.com
|
Customization & Machining Service:
As a ceramic parts manufacturer,us offer a wide of the ceramic specification,and customized&machinables. Get a Quote On Your Customized Now!! or up a files by (email:admin@cerampart.com). Our Custom Capabilities: 1.High Purity Martoxid Powder 2.OEM Support, More Than 10 Technicians With 5-Year R&D Experience 3.35000 ㎡workshop, annual output could reach hundred million pieces. 4.All crafts are inspected strictly based on drawings,checked each month. 5.Best Service And Quick Delivery Via Fedex,DHL,UPS,TNT Etc. |
|
||||||||||||||||||||||||||
|
The general specifications service
1. Factory price with a discounts 2. Fast shipment within 24 hours 3. In stocks for hot sales sizes 4. MOQ:1qty |
The Custom service 1. Can be custom for special sizes by drawing 2. Can offer a samples within 2 days 3. The delivery time within 20 days after confirmed the order 4. Factory price and Senior ceramic engineer service |
