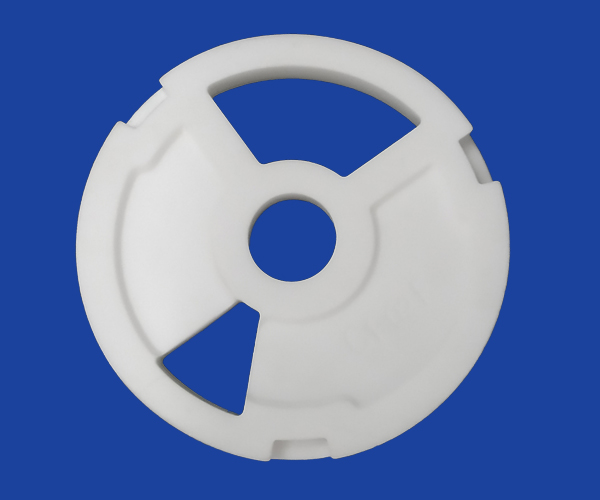

Alumina ceramic moving disc have a best ceramic performance than other moving disc.
Our alumina ceramic moving dsic made by alumina ceramics AL2O3 and other ceramic raws. the main ceramics is alumina. we produce and sales multi sizes alumian moving discs, and also offer custom multi types alumina moving disc for our customer.
As a pro alumina disc factory, us can produce multi types ceramic disc or other ceramic product for our customer.
Alumina moving disc Al2O3 Properties:
Excellent electrical insulation
Relatively low strength and fracture toughness
Resistance to wear and corrosive
Excellent thermal stability
Resistance to high temperatures
High electrical resistivity
Good chemical stability
High corrosion resistance
Specification of the popular ceramic disc:
OD: 12.5mm---36.2mm ceramic discs
The frictional times is 300, 000 to 500, 000
Rigidity is 84~86 HRA.
The thickness tolerance is less than 0.05mm, the diameter tolerance is less than 0.05mm
Other sizes we can offer customized
Other ceramic raws disc plates
· Silicon Carbide disc
· Silicon Nitride disc
· TTZ: Magnesia partially stabilized Zirconia (ZrO2) disc
· YTZP: Yttria partially stabilized Zirconia (ZrO2) disc
· ZDY: Yttria fully stabilized Zirconia (ZrO2) disc
| Technical reference of manufacture | |
| Dimensional accuracy | Up to 0.001mm |
| Concentricity | Up to 0.003mm |
| Parallelism | Up to 0.002mm |
| The inner hole tolerance | The minimum 0.005mm |
| Straight flute | The narrowest 0.1x100mm |
| The thickness of the size | Minimum to 0.02mm |
| The screw thread | Minimum internal thread M2 |
| Cylindricity | Up to 0.004mm |
| The linear tolerance | Up to 0.001mm |
| The smallest aperture | The minimum 0.07mm |
| Precision process | CNC maching,grinding,lapping |
| Surface finish | Glazed,polishing or metallized |
FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-20 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.
Feedback
1. For any query or doubt, please contact us firstly, we will update with you soon;
2. For any other satisfaction, please also feedback to us, which could improve our service better and better.
| For more information about ceramics disc parts,please contact our engineers in time >>> |
  |
