Email: admin@cerampart.comSkype: admin@cerampart.comWechat: +86 18122974730| · Flexural strength | · Chemical resistance | · Electrical insulation | · Corrosion resistance | · Dielectric strength |
| · Wear resistance | · Temperature resistance | · Thermal conductivity | · High voltage | · Hardness... |
 |
Ceramic pump liners combine the strength of a forged steel outer shell with the abrasion and corrosion resistance of a high chrome inner sleeve. These liners feature a centrifugally cast high chrome iron sleeve which is machined and heat treated to a minimum uniform bore hardness of 59-65HRC. Bi-metal Liners is the main expendable parts of the mud pump, it adapts double metal fix together.
yield strength is δs≥450Mpa,elongation hardness is E≥17%,hardness is HRC180-200 Liner inner sleeve :high chromium cast iron(centrifugal forged). Annealing hardness is HRC≤ 40.Quenching hardness is HRC59-6 Ceramic pump liners are including metal Liners and Ceramic Liners. Sizes of 6 1/2”, 7”, 140mm, 150mm,160mm, 170mm, 200mm, 230mm liners. (the special sizes can be oem) |
|

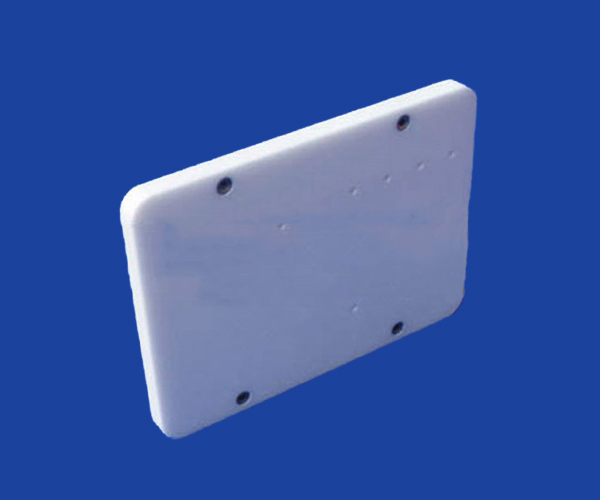

Mine Ceramic Wear Liners are made of extremely hard ceramics that provide unsurpassed resistance to abrasive wear while the rubber effectively dampens the impact forces that can crack the ceramic rods. Wide Range of mine ceramic wear liner is mainly used in the mining and quarrying industries, where severe abrasion occurs and the angles of impact are low. Excellent Wear Protection for tough mining conditions were there is a need for both wear protection and low noise materials. 1/4″ Steel Backing is suitable for stud welding, plug welding or self-tapping screws. Plates are available with factory-welded mounting studs for ease of installation. |
 |
|
Dimension and tolerance
·Diameter as small as 0.2mm， depends on length ·Length as long as 400mm, as short as 0.5mm ·Diameter tolerance we could make as fine as 0.001mm ·The length and special sizes can be customized |
Additional Information
·Discounts on large quantities of Ceramic Liner
·In stock items will typically ship in a few working days. ·Unit price and estimated ship dates will be calculated when the sizes and quantity are specified. |
| Precision of manufacture | |
| Dimensional accuracy | Up to 0.001mm |
| Smoothness | Highest possible mirror |
| Concentricity | Up to 0.003mm |
| Parallelism | Up to 0.002mm |
| The inner hole tolerance | The minimum 0.005mm |
| Straight flute | The narrowest 0.1x100mm |
| The thickness of the size | Minimum to 0.02mm |
| The screw thread | Minimum internal thread M2 |
| Cylindricity | Up to 0.004mm |
| The linear tolerance | Up to 0.001mm |
| The smallest aperture | The minimum 0.07mm |
| Precision process | CNC maching,grinding,lapping |
| Surface finish | Glazed,polishing or metallized |
|
Visual quality: 1. No cracks, no dark dots, no contamination and sharp edges; 2. Evenly distributed glaze with very smooth surface |
|
Customization & Machining Service
As a professional manufacturer of industrial ceramic components.We can custom the sepcial specifications of ceramic liner, plate,tubes or other ceramic parts.High quality,Factory price, on-time delivery, High composition of ceramics
FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-10 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.
Feedback
1. For any query or doubt, please contact us firstly, we will update with you soon;
2. For any other satisfaction, please also feedback to us, which could improve our service better and better.
