Zirconia ceramic products (ZrO2)

Manufacturing of zirconia ceramics using high-purity zirconia materials, insulation at room temperature, and high temperature has electrical conductivity and other excellent properties.High temperature resistance Melting point is 2715 ℃,1200mpa hardness.
Zirconia ceramics material:
· TTZ: Magnesia partially stabilized Zirconia (ZrO2) · YTZP: Yttria partially stabilized Zirconia (ZrO2) · ZDY: Yttria fully stabilized Zirconia (ZrO2)

Zirconia ceramic products by shape:

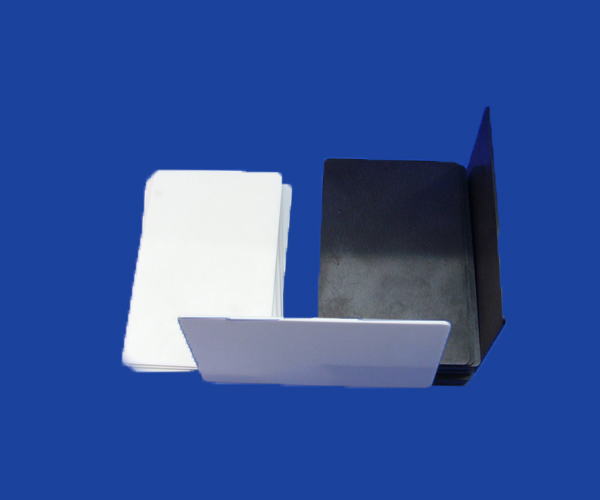

1.Zirconia Plate types: plate,piece,sheet,substrates,lining,boards etc.
2.Zirconia Rod/Tube types: tube,rod,bar,pins,stick,shaft,plunger,liner,nozzle.etc
3.Zirconia Ring types: washer,ring,gasket,spacer,bushing,sleeve,disc,disk, etc
4.Other shape Zirconia products can be customized.like punching, external thread, internal thread, polishing, hollowing out, concave and convex, bending, etc.

For more detail of Zirconia ceramic like price,shipping,samples...
Quick Free Quote . Our official E-mail: admin@cerampart.com (Mr admin).thanks

The zirconium oxide ceramic ZrO2 features:

1. Zirconia ceramics wear resistance, high hardness, low noise, impact resistance, easy to provide constant service quality, long service life.

2. Zirconia ceramics can increase the space around the wire, increase torque, increase speed, increase blade space, and improve fan efficiency.

3. Zirconia ceramic high-temperature resistance, ≤1000℃, no deformation, no distortion, no lubrication at high speed.

4. Zirconia ceramics are more suitable for working in harsh environments.Such as acid, alkaline environment, oxidation environment, etc.

5. Zirconia ceramics have low density, non-magnetic properties and strong insulation.

6. Zirconia ceramics with low heat conduction, low CTE, wear resistance only second with diamond.

>>More Properties and Parameters...

We offer zirconia ceramic material types:

· Zirconia (ZrO2) · TTZ: Magnesia partially stabilized Zirconia (ZrO2)
· YTZP: Yttria partially stabilized Zirconia (ZrO2) · ZDY: Yttria fully stabilized Zirconia (ZrO2)

Item	Unit	zirconia
Density	g/cm3	6.05
Water absorption	%	0
Coefficient of thermal expansion	10-6 /k	10.5
Young's elastic modulus	Gpa	210
Poisson-Pine ratio	/	0.3
Hardness (HV)	MPa	1200
Bending strength (room temperature)	MPa	950
Bending Strength (700 ℃)	MPa	210
Compressive strength (room temperature)	MPa	2000
Fracture toughness	Mpa.m1/2	10
Thermal conductivity (room temperature)	W/m.k	2
Specific resistivity (room temperature)	Ω.mm2/m	＞1015
Corrosion resistance of acid and alkali resistance	/	strength

Products made from Zirconium Oxide Ceramic(ZrO2)

Zirnoia Ceramic Tubes
Bearing Technology in Automotive Engineering
Zirnoia Cutters
Dental Zirnoia Ceramics
Drawing Tools
Forming Applications
Pumps, Components for

Seal Rings, Bearings and Sealing
Sealing Technology (Seal Rings, Bearings)
Technical Cutters
Zirnoia Tubes and Pipes
Zirnoia Valves, Components for
Wire Drawing, Components for
Zirconium Oxide-stabilized Substrates

Zirconia Ceramic parts machining technical parameters:

Dimensional accuracy：Up to 0.001mm
Smoothness：Highest possible mirror
Concentricity：Up to 0.003mm
The inner hole tolerance： 0.005mm
Straight flute：The narrowest 0.1x100mm
The thickness of the size：Minimum to 0.02mm
The screw thread：Minimum thread M2
Cylindricity：Up to 0.004mm
The smallest aperture：The minimum 0.07mm
Visual quality:No cracks, no dark dots, no contamination...etc;

Lead time: 2-20 working days for the mass with free sample of mass ; MOQ : 1 qty

For more details.please contact us soon, our ceramic engineer online service.thanks
