Email: admin@cerampart.comThe properties of ceramic disc
| · Flexural strength | · Chemical resistance | · Electrical insulation | · Corrosion resistance | · Dielectric strength |
| · Wear resistance | · Temperature resistance | · Thermal conductivity | · High voltage | · Hardness... |
|

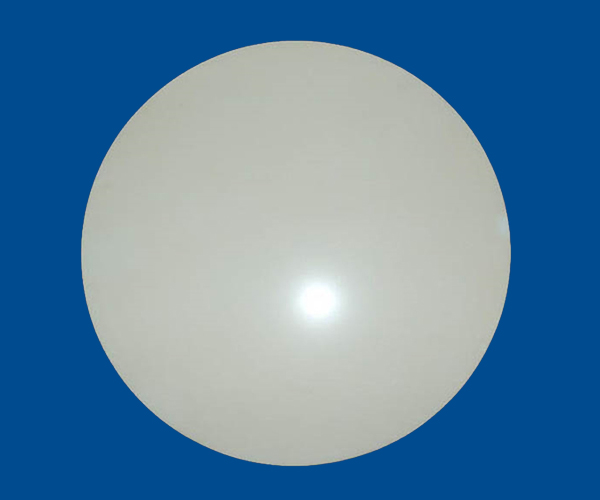

Description Ceramic disc plates can withstand high temperature and maintain high strength and hardness. zirconia plates also have superb performances in electrical insulation, high chemical resistance and low thermal expansion. We have various sizes of semi finished shapes in stock and are able to conduct custom manufacturing for all kinds of zirconia components. Other type of ceramic disc/ core/ plates · Ttz: Magnesia Partially Stabilized Zirconia (Zro2) disc · Ytzp: Yttria Partially Stabilized Zirconia (Zro2) disc/ Plate/ · Zdy: Yttria Fully Stabilized Zirconia (Zro2) disc/ Plate/ · Silicon Carbide disc/ Plate/ · Silicon Nitride disc/ Plate/ |
Ceramic materials for ceramic disc plate: · 95%--99.99% Alumina (Al2O3) · Silicon Carbide · Silicon Nitride · TTZ: Magnesia partially stabilized Zirconia (ZrO2) · YTZP: Yttria partially stabilized Zirconia (ZrO2) · ZDY: Yttria fully stabilized Zirconia (ZrO2) We offer a range of sizes for ceramic disc Outside diameter: max 250mm; mini 0.5mm Inside diameter:max 230mm; mini 0.2mm
Thickness:max 50mm; mini 0.2mm |
|
User industries: Automotive, aviation, space travel Electrical and thermal insulation Electronics and sensors Energy technology, power generation Environmental technology Fluid technology Friction-reduction, wear- and corrosion -protection High temperature applications Laboratory technology Laser technology Mechanical and chemical process engineering Metal industry Optics Semiconductor processing equipment Surface treatment Vacuum technology Other industries |
Specification:
1. Refractory, High Temperature Resistance, Maximum Used Temperature: 1800 ºC (3272ºF)...
2. Hardness Strength, Wear Resistance Up To Mohz 9.0; HRA 80-90...
3. High Voltage, Good Insulation Performance ,Electrical Resistivity Up To 10∧14 Ohm.Cm...
4. High Polished Surface Up To Rz0.8(Ra0.1) ...
5. Superior Mechanical Strength, Max 10 MPa.m1/2 Fracture toughness,
6. Pressure Resistance, Max 2300MPa compressive strength...
7. Anti-High Corrosion Resistance, Such As Acid Alkali Resistance...
8. Long Service Life...
9. Thermal conductivity
10. Other excellent property
|
|
Custom and machining for ceramic disc plate We can produce different sizes and shapes of the ceramic disc for specific applications to different custom products.Such as drilling, polishing, stripes, concave and convex, screw holes, metal parts position and so on. High hardness, fast heat dissipation, high flexural strength, good fracture toughness, strong wear resistance, smooth skin-friendly, small signal shielding, etc. Processing items: |
 |
punching, external thread, internal thread, polishing, hollowing out, concave and convex, bending, etc. According to the customer requirement or the drawing. |
|
||||||||||||||||||||||||||
|
Our Customers
OEM ceramic washer spacer ring and enjoys on-going relationships with businesses of all sizes in dozens of industries, in addition to the markets showcased at the top of this page, including: |
Contact us CEO : Mr Admin Mobile : +86 18122974730 Tel : +86 0769-85090316-8038 E-mail : admin@cerampart.com Skype: admin@cerampart.com We chat: +86 18122974730 Address：No. 21, Chuangxing Road, Shangsha SecondIndustrial Zone, Chang'an Town, Dongguan City,Guangdong Province,China For more details of the ceramic washer spacer ring , please contact us soon. Our ceramic engineer will be always online. Thanks |
|
The general specifications service 1. Factory price with a discounts 2. Fast shipment within 24 hours 3. In stocks for hot sales sizes 4. MOQ:1qty 5. Online service  |
The Custom service 1. Can be custom for special sizes by drawing 2. Can offer a samples within 2 days 3. The delivery time within 20 days after confirmed the order 4. Factory price and Senior ceramic engineer service 5. Online service  |
|
|
Al 2O 3 |
ZrO2/Y2O3 | ZrO2/MgO | MgO | SiC | Si3N4 Reaction sintered | Si3N4 Hot pressed | ALN |
| Physical properties | ||||||||
| Density (g/cm3) | 3,9 | 5,9 | 5,75 | 3,58 | 3,2 | 3,27 | 3,29 | 3,26 |
| Molecular weight (g/mole) | 102 | - | - | 40,4 | 40,1 | 140 | 140 | 41 |
| Maximum service temperature air (°C) | 1700- 1800 | 1500 | 1000 | 2200 | 1500 | 1200- 1500 | 1100- 1600 | 1000- 1800 |
| Mechanical properties | ||||||||
| Hardness (Mohs) | 9 | - | - | 5,5 | 9 | - | - | 7 |
| Modulus of elasticity (GPa) | 300-400 | 200 | 200 | 250-300 | 420 | 170-220 | 280-310 | 318 |
| Poisson's ratio | 0,25 | - | - | 0,18 | 0,14 | 0,25-0,26 | 0,27 | 0,25 |
| Fracture toughness (MPa.m1/2) | 2-3 | 7-13 | 6-10 | - | 2,5-3,5 | 3,5-5 | 6,1 | 4,5 |
| Electrical properties | ||||||||
| Dielectric constant | 9-10 | - | - | 9-10 | - | 10 | 10 | 9,2 |
| Electrical resistivity at 20°C (Ohm.cm) | >10 14 | 10 13-10 14 | >10 10 | - | 10 2-10 6 | >10 7 | 10 12- 10 15 | >10 14 |
| Dielectric strength (kV/mm) | 10-20 | 9 | 2-10 | - | - | - | - | 15 |
| Thermal properties | ||||||||
| Specific heat (J/K/kg) | 900 | 400-500 | 420 | 870-880 | 750 | 690 | 680-800 | 800 |
| Thermal conductivity (W/m/K) at 20°C | 26-35 | 2,2-3,2 | 1,5-2,5 | 40-50 | 63-155 | 9-30 | 15-43 | 180 |
| Coefficient of thermal expansion ( 10-6) from 20 to 1000°C | 8-9 | 10-11 | 5-16 | 10-13 | 4-5 | 3 | 3,3 | 4,4-5,3 |
| Melting point (°C) | 2050 | 2590 | - | 2800 | 2500 | 1900 | 1900 | 2200 |
|
Customization & Machining Service: As a ceramic parts manufacturer,us offer a wide of the ceramic specification,and customized&machinables. Get a Quote On Your Customized Now!! or up a files by EMAIL. Our Custom Capabilities: 1.High Purity Martoxid Powder 2.OEM Support, More Than 10 Technicians With 5-Year R&D Experience 3.35000 ㎡workshop, annual output could reach hundred million pieces. 4.All crafts are inspected strictly based on drawings,checked each month. 5.Best Service And Quick Delivery Via Fedex,DHL,UPS,TNT Etc. |
