Ceramic structure parts

Zirconia ceramic metal base
  • Materials:Alumina (Al2O3)/ Zirconia(ZrO2) /Si3N4 /SiC
  • Sizes:Custom according to the drawings
  • Delivery times:2 -25 days(depends on the quantity)
  • Precision:Ra 0.1um tolerance: 0.001mm... etc
  • Features:Heat resistance / Wear resistance / High purity / Refractory / High Corrosion / Good Insulation
  • Customized:Zirconia ceramic metal base can be custom for special sizes and shapes
    1. Factory price and shipment within 24 hours In stocks
    2. MOQ:1qty
    3. Payment Term: PayPal; T/T; L/C etc.
    4. Shipment: by sea by air by courier by post etc.
Free quotes notice:
  • 2020/10/11 - Romania - What's the price for 4"x4"x0.12" (100 mm x 100 mm x 3 mm

    2020/10/11 - Greece - We are looking Ceramic Cylinder. We need 3 pcs item and one repair kit

    2020/10/11 - Italy - Hi We require some ceramic machinery parts for a pump

    2020/10/11 - Spain - Please send updated price list of ceramic welding pins

    2020/10/11 - Germany - I want to buy alumina ceramic tubes: length 250 - 500 mm, OD: ~ 6mm,

    2020/10/08 - Anguilla - Hi i need blue pins but i need my dimensiones.I could send You a drawin

    2020/10/08 - Canada - Hello I am looking for a replacement shaft part for this machine

    2020/10/08 - America - Good day,Please kindly quote us,ceramic ball bearing

    2020/10/08 - Islands - I have drawings for small aluminum parts I would like you to quote on.

    2020/10/08 - Mexico - Dear mam,we have requirement of component attached with this mail.

    2020/10/08 - America - I need this ceramics modling plate to test in a new design machined too

    2020/10/08 - Canada - Hello.I need a sample of 96%Al2O3 bushing...

    2020/10/07 - Turkey - looking for valves with channel .4mm

    2020/10/07 - India - 99 Alumina Ceramic Tube height: 9mmwidth: 10mmhole:

    2020/10/07 - Philippines - Greetings 10 mm outer 5 mm inner 30 mm long piston spindle required pri

    2020/10/07 - Singapore - Hi, I'm looking for Ceramic threaded rod, ØM6 x 45mm Length.

    2020/10/07 - Malaysia - We are in need of thin alumina sheets of dimension 101.5 x 230 mm.

    2020/10/06 - Thailand - Hello,I'm looking for cylinders made of alumina ceramic...

    2020/10/06 - Malaysia - I need for my scientific researh to buy about 10 ceramic rods with

    2020/10/06 - Singapore - we want to purchase porous ceramic rods size 1mm to 1.25 mm round.

    2020/10/06 - Korea - Hi, we have 2 end effects that we need qty 2 of each. Thanks

    2020/10/06 - Japan - working temperature over 1200℃ plate I'm looking for 3 pieces

    2020/10/05 - Ireland - how much a few (60) samples of heat resistant ceramic plates

    2020/10/05 - Switzerland - Dear We need your price offer for blue ZrO2 ceramic centering pins

    2020/10/05 - Germany - Hi I am looking for a ceramic impellar rod with rubber cap

    2020/10/05 - Poland - we are interested in thicker plates that range from 2 mm to 3 mm

    2020/10/05 - Russia - We would be interested in plates with a thickness of 1mm. If possible,

    2020/10/05 - Brazil - Good dayI am interested i a small of ceramicplate about 120 mm long and

    2020/10/05 - Colombia - Please send the quote for Alumina rod size 3.17mm dia x 40 mm length

    2020/09/28 - America - Please send me fob price on White Alumina Ceramic Rod Porcelain Parts

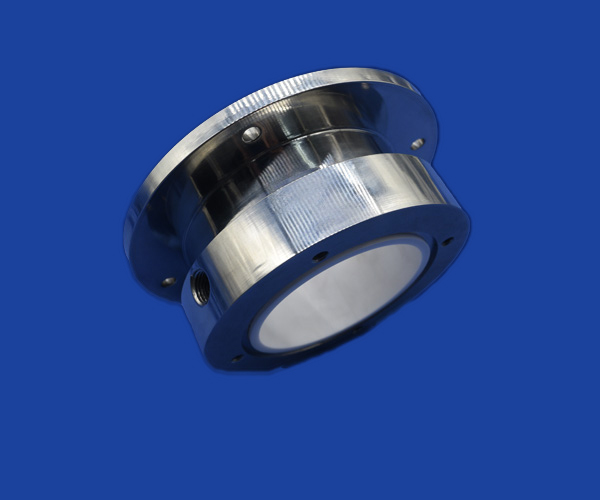

  • Zirconia ceramic metal base



    Zirconia ceramic metal base is made of high quality zirconia ceramics.It has good wear resistance and use time.



    Properties

    High strength, high hardness, crash resistance, wear resistance, corrosion resistance, smooth surface, low thermal conductivity, nonmagnetic etc.



    Data Sheet↓

    Item

    Unit

    Typical Values

    Physical Properties

    Color

    Customized

    Density

    g/cm3

    6.0

    Zirconia Content

    %

    94.4%

    Gas permeability

    0

    Water Absorption

    0

    Crystal Size

    um

    0.5

    Mechanical Properties

    Rockwell Hardness(45N)

    R45N

    78

    Vickers Hardness (Load 500g)

    Gpa(Kg/mm²)

    11.5(1175)

    Flexural Strength(20°C)

    Mpa

    800

    Compressive Strength(20°C)

    Mpa

    2000

    Modulus of Elasticity(20°C)

    Gpa

    >200

    Fracture Toughness(20°C)

    MPam1/2

    9.0

    Thermal Properties

    Thermal Conductivity(20°C-400°C)

    W(m.K)

    2.5

    Thermal Expansion Coefficient

    10-6/°C

    9.6

    Thermal Shock Resistance

    T°C

    250



    Application industry:

    Machinery, fiber optic, knife, medical, food, petroleum etc.
    Specific application:

    plunger, ceramic shaft, fiber optic bushing, stub, grinding, ceramic knife, ceramic slide guide, machined plunger, mobile phone shell, watch case, haircut razor blade etc.
