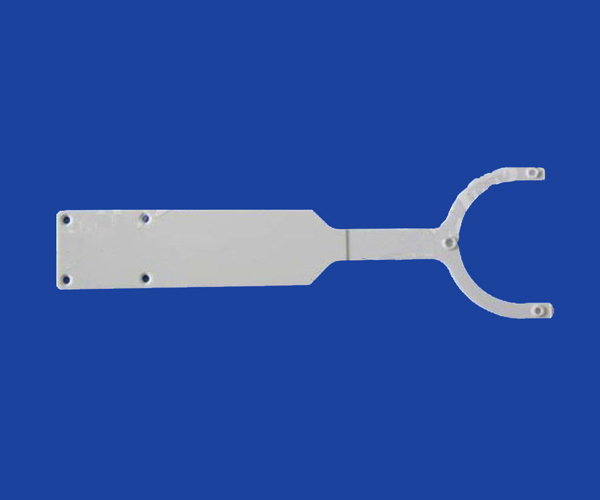

Alumina Ceramic Handling Arm Ceramic End Effectors for Semiconductor Wafer Handling

Materials：Alumina (Al2O3)/ Zirconia(ZrO2) /Si3N4 /SiC ...etc
Sizes：Custom according to the drawings
Delivery times：2 -25 days(depends on the quantity)
Precision：Ra 0.1um tolerance: 0.001mm... etc
Features：Heat resistance / Wear resistance / High purity / Refractory / High Corrosion / Good Insulation
Customized：Custom available
1. Factory price
2. MOQ:1qty
3. Payment Term: PayPal; T/T; L/C etc.
4. Shipment: as per your requirement

Free quotes notice:

2020/10/11 - Romania - What's the price for 4"x4"x0.12" (100 mm x 100 mm x 3 mm

2020/10/11 - Greece - We are looking Ceramic Cylinder. We need 3 pcs item and one repair kit

2020/10/11 - Italy - Hi We require some ceramic machinery parts for a pump

2020/10/11 - Spain - Please send updated price list of ceramic welding pins

2020/10/11 - Germany - I want to buy alumina ceramic tubes: length 250 - 500 mm, OD: ~ 6mm,

2020/10/08 - Anguilla - Hi i need blue pins but i need my dimensiones.I could send You a drawin

2020/10/08 - Canada - Hello I am looking for a replacement shaft part for this machine

2020/10/08 - America - Good day,Please kindly quote us,ceramic ball bearing

2020/10/08 - Islands - I have drawings for small aluminum parts I would like you to quote on.

2020/10/08 - Mexico - Dear mam,we have requirement of component attached with this mail.

2020/10/08 - America - I need this ceramics modling plate to test in a new design machined too

2020/10/08 - Canada - Hello.I need a sample of 96%Al2O3 bushing...

2020/10/07 - Turkey - looking for valves with channel .4mm

2020/10/07 - India - 99 Alumina Ceramic Tube height: 9mmwidth: 10mmhole:

2020/10/07 - Philippines - Greetings 10 mm outer 5 mm inner 30 mm long piston spindle required pri

2020/10/07 - Singapore - Hi, I'm looking for Ceramic threaded rod, ØM6 x 45mm Length.

2020/10/07 - Malaysia - We are in need of thin alumina sheets of dimension 101.5 x 230 mm.

2020/10/06 - Thailand - Hello,I'm looking for cylinders made of alumina ceramic...

2020/10/06 - Malaysia - I need for my scientific researh to buy about 10 ceramic rods with

2020/10/06 - Singapore - we want to purchase porous ceramic rods size 1mm to 1.25 mm round.

2020/10/06 - Korea - Hi, we have 2 end effects that we need qty 2 of each. Thanks

2020/10/06 - Japan - working temperature over 1200℃ plate I'm looking for 3 pieces

2020/10/05 - Ireland - how much a few (60) samples of heat resistant ceramic plates

2020/10/05 - Switzerland - Dear We need your price offer for blue ZrO2 ceramic centering pins

2020/10/05 - Germany - Hi I am looking for a ceramic impellar rod with rubber cap

2020/10/05 - Poland - we are interested in thicker plates that range from 2 mm to 3 mm

2020/10/05 - Russia - We would be interested in plates with a thickness of 1mm. If possible,

2020/10/05 - Brazil - Good dayI am interested i a small of ceramicplate about 120 mm long and

2020/10/05 - Colombia - Please send the quote for Alumina rod size 3.17mm dia x 40 mm length

2020/09/28 - America - Please send me fob price on White Alumina Ceramic Rod Porcelain Parts

Ceramic Handling Arm Ceramic End Effectors for Semiconductor Wafer Handling

Semiconductor Ceramic Parts and components manufacturer,OEM
High Quality, High Precision, Delivery on time, Factory Price

A heat-resistant, non-destructive ceramic operating handling arm. We use advanced ceramic materials to manufacture semiconductor ceramic arms to enhance functionality, reduce damage to wafers/glass panels, and prevent pollution from spreading.

In robotics, an end-effector is a device or toll connected to the end of a robot arm. The structure of an end effector and the nature of the programming and hardware that drives it, depends on the intended task.
A robot arm can accommodate only certain end-effector task modes without changes to the ancillary hardware and/or programming.

The properties of ceramics handling arm

· Flexural strength	· Chemical resistance	· Electrical insulation	· Corrosion resistance	· Dielectric strength
· Wear resistance	· Temperature resistance	· Thermal conductivity	· High voltage	· Hardness...

We are skilled at producing ceramic semiconductor components with complex geometry and designs. Our goal is to provide high-quality, low-cost semiconductor ceramic parts by leveraging our innovative manufacturing processes and techniques. please contact us

High heat and temperature resistant
The ceramic handling arm have a excellent high heat temperature resistant ability. ceramic handling arm can be used under 2200 ℃ high temperature environment.Coefficient of thermal expansion up to 13* 10^∧⁶from 20°C -1000°C. up to 2800°C Melting point.

Wear and hardness resistant
The ceramic handling arm is better wear and abrasion resistant property than metal. The ceramic handling arm hardness (mohs)up to 9, HRA 80 - 90. ceramic handling arm hardness is not second only to diamond, but far beyond the wear resistance of steel and stainless steel.

Ceramic materials
· 95%--99.99% Alumina (Al2O3) · Silicon Carbide · Silicon Nitride · TTZ: Magnesia partially stabilized Zirconia (ZrO2)
· YTZP: Yttria partially stabilized Zirconia (ZrO2) · ZDY: Yttria fully stabilized Zirconia (ZrO2)...

	Al ₂O ₃	ZrO2/Y2O3	ZrO2/MgO	MgO	SiC	Si3N4 Reaction sintered	Si3N4 Hot pressed	ALN
Physical properties
Density (g/cm3)	3,9	5,9	5,75	3,58	3,2	3,27	3,29	3,26
Molecular weight (g/mole)	102	-	-	40,4	40,1	140	140	41
Maximum service temperature air (°C)	1700- 1800	1500	1000	2200	1500	1200- 1500	1100- 1600	1000- 1800
Mechanical properties
Hardness (Mohs)	9	-	-	5,5	9	-	-	7
Modulus of elasticity (GPa)	300-400	200	200	250-300	420	170-220	280-310	318
Poisson's ratio	0,25	-	-	0,18	0,14	0,25-0,26	0,27	0,25
Fracture toughness (MPa.m1/2)	2-3	7-13	6-10	-	2,5-3,5	3,5-5	6,1	4,5
Electrical properties
Dielectric constant	9-10	-	-	9-10	-	10	10	9,2
Electrical resistivity at 20°C (Ohm.cm)	>10 ₁₄	10 ₁₃-10 ₁₄	>10 ₁₀	-	10 ₂-10 ₆	>10 ₇	10 ₁₂- 10 ₁₅	>10 ₁₄
Dielectric strength (kV/mm)	10-20	9	2-10	-	-	-	-	15
Thermal properties
Specific heat (J/K/kg)	900	400-500	420	870-880	750	690	680-800	800
Thermal conductivity (W/m/K) at 20°C	26-35	2,2-3,2	1,5-2,5	40-50	63-155	9-30	15-43	180
Coefficient of thermal expansion ( 10-6) from 20 to 1000°C	8-9	10-11	5-16	10-13	4-5	3	3,3	4,4-5,3
Melting point (°C)	2050	2590	-	2800	2500	1900	1900	2200

Precision of manufacture
Dimensional accuracy	Up to 0.001mm
Smoothness	Highest possible mirror
Concentricity	Up to 0.003mm
Parallelism	Up to 0.002mm
The inner hole tolerance	The minimum 0.005mm
Straight flute	The narrowest 0.1x100mm
The thickness of the size	Minimum to 0.02mm
The screw thread	Minimum internal thread M2
Cylindricity	Up to 0.004mm
The linear tolerance	Up to 0.001mm
The smallest aperture	The minimum 0.07mm
Precision process	CNC maching,grinding,lapping
Surface finish	Glazed,polishing or metallized
Visual quality: 1. No cracks, no dark dots, no contamination and sharp edges; 2. Evenly distributed glaze with very smooth surface

Customization & Machining Service
As a professional manufacturer of industrial ceramic components.We can custom the sepcial specifications of ceramic handling arm or other ceramic parts.High quality,Factory price, on-time delivery, High composition of ceramics

FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-10 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.

Feedback
1. For any query or doubt, please contact us firstly, we will update with you soon;
2. For any other satisfaction, please also feedback to us, which could improve our service better and better.

For more information about ceramics parts,please contact our engineers in time >>>
