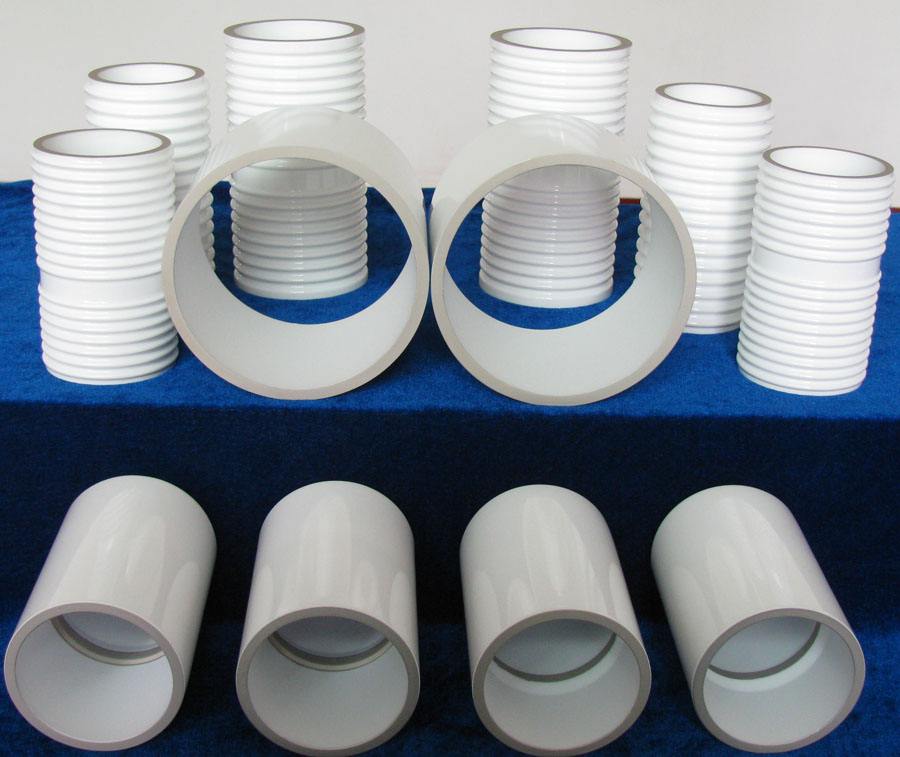

This product is made of advanced special ceramic materials, and can be brazed to achieve the ceramic-metal sealing of the cutting material similar to the linear expansion coefficient of ceramic or the non-oxygen copper parts and the metallized ceramic parts. The sealing parts can be welded with stainless steel by argon arc welding, so as to realize the airtight connection between ceramic parts and metal structural parts.The ceramic - metal sealing structure has the characteristics of high sealing strength, good air tightness and high reliability.It is characterized by energy saving, material saving, fire prevention, explosion proof, small size, long life, low maintenance cost, reliable operation and no pollution.
Application: used in vacuum switch tube, various speed regulating tube, travelling wave tube, microwave tube, magnetron, thyratron, trigger, vacuum regulator, microwave night vision and other related vacuum insulation industry.The operating temperature up to max 1700℃.
By purpose:
Vacuum arc extinguishing chamber for circuit breakers, load switches, contactors, recalibrators, sectionals and other special usages.
| Rated voltages | up to 52 kV |
| Short-circuit currents | up to 72 kA |
| Rated currents | up to 6300 A |
| Life-time circuit-breaker applications | up to 30.000 switching cycles |
| Life-time contactor applications | up to 5 million switching cycles |
|
Features of our vacuum interrupters and related services include: 2. vacuum circuit breakers available for emergency or while yours is being service 3. Compact Design 4. Individual Vacuum / Bottle Interrupters or Complete Pole Assemblies · In shop replacement at our facility · Field replacement at your facility Local replacement at nearest Group CBS affiliate service location |
 |
|
The general specifications service 1. Factory price with a discounts 2. Fast shipment within 24 hours 3. In stocks for hot sales sizes 4. MOQ:1qty 5. Online service  |
The Custom service 1. Can be custom for special sizes by drawing 2. Can offer a samples within 2 days 3. The delivery time within 20 days after confirmed the order 4. Factory price and Senior ceramic engineer service 5. Online service  |
|
|
Al 2O 3 |
ZrO2/Y2O3 | ZrO2/MgO | MgO | SiC | Si3N4 Reaction sintered | Si3N4 Hot pressed | ALN |
| Physical properties | ||||||||
| Density (g/cm3) | 3,9 | 5,9 | 5,75 | 3,58 | 3,2 | 3,27 | 3,29 | 3,26 |
| Molecular weight (g/mole) | 102 | - | - | 40,4 | 40,1 | 140 | 140 | 41 |
| Maximum service temperature air (°C) | 1700- 1800 | 1500 | 1000 | 2200 | 1500 | 1200- 1500 | 1100- 1600 | 1000- 1800 |
| Mechanical properties | ||||||||
| Hardness (Mohs) | 9 | - | - | 5,5 | 9 | - | - | 7 |
| Modulus of elasticity (GPa) | 300-400 | 200 | 200 | 250-300 | 420 | 170-220 | 280-310 | 318 |
| Poisson's ratio | 0,25 | - | - | 0,18 | 0,14 | 0,25-0,26 | 0,27 | 0,25 |
| Fracture toughness (MPa.m1/2) | 2-3 | 7-13 | 6-10 | - | 2,5-3,5 | 3,5-5 | 6,1 | 4,5 |
| Electrical properties | ||||||||
| Dielectric constant | 9-10 | - | - | 9-10 | - | 10 | 10 | 9,2 |
| Electrical resistivity at 20°C (Ohm.cm) | >10 14 | 10 13-10 14 | >10 10 | - | 10 2-10 6 | >10 7 | 10 12- 10 15 | >10 14 |
| Dielectric strength (kV/mm) | 10-20 | 9 | 2-10 | - | - | - | - | 15 |
| Thermal properties | ||||||||
| Specific heat (J/K/kg) | 900 | 400-500 | 420 | 870-880 | 750 | 690 | 680-800 | 800 |
| Thermal conductivity (W/m/K) at 20°C | 26-35 | 2,2-3,2 | 1,5-2,5 | 40-50 | 63-155 | 9-30 | 15-43 | 180 |
| Coefficient of thermal expansion ( 10-6) from 20 to 1000°C | 8-9 | 10-11 | 5-16 | 10-13 | 4-5 | 3 | 3,3 | 4,4-5,3 |
| Melting point (°C) | 2050 | 2590 | - | 2800 | 2500 | 1900 | 1900 | 2200 |
|
Customization & Machining Service: As a ceramic parts manufacturer,us offer a wide of the ceramic specification,and customized&machinables. Get a Quote On Your Customized Now!! or up a files by EMAIL. Our Custom Capabilities: 1.High Purity Martoxid Powder 2.OEM Support, More Than 10 Technicians With 5-Year R&D Experience 3.35000 ㎡workshop, annual output could reach hundred million pieces. 4.All crafts are inspected strictly based on drawings,checked each month. 5.Best Service And Quick Delivery Via Fedex,DHL,UPS,TNT Etc. |
|
|||||||||||||||||||||||||||
FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-20 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.
