The properties of ceramics liner
1. Refractory, High Temperature Resistance, Maximum Used Temperature: 1800 ºC (3272ºF)...
2. Hardness Strength, Wear Resistance Up To Mohz 9.0 Levels...
3. High Voltage, Good Insulation Performance ,Electrical Resistivity Up To 10∧14 Ohm.Cm...
4. High Polished Surface Up To Rz0.8(Ra0.1) ...
5. Superior Mechanical Strength, MAX 10 MPa.m1/2 Fracture toughness,
6. Pressure Resistance, Max 2300MPa compressive strength...
7. Anti-High Corrosion Resistance, Such As Acid Alkali Resistance...
8. Long Service Life...
9. Other excellent property

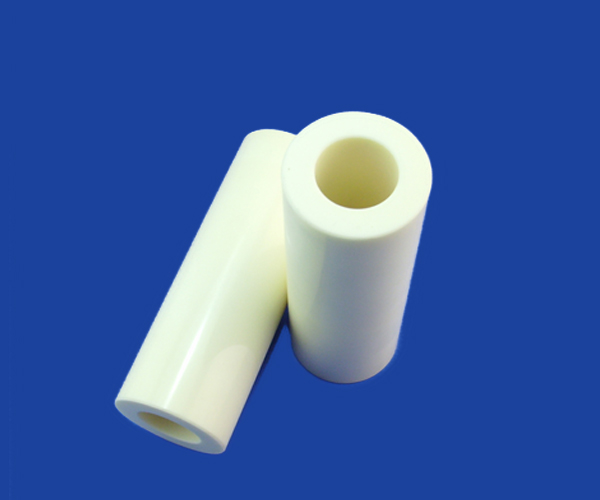

Mingrui Ceramic provides technical ceramic tubes such as wear alumina ceramic tubes with high purity, tight dimensional tolerance and competitive price.
Us manufactures the cermaic lining tube wiith advance technical ceramics,like:95%--99.99% Alumina(Al2O3), Zirconia(ZrO2) ,Silicon Carbide,Silicon Nitride ...etc which have a excellent Physical properties,Mechanical properties,Electrical properties,Thermal properties. Wear hardness strength resistance.
Wear and hardness and abrasion
The wear ceramic liner tubes is better wear and abrasion resistant property than metal. The ceramic hardness (mohs)up to 9, HRA 80-90. Abrasion Ceramic liner of the hardness is not second only to diamond, but far beyond the wear resistance of steel and stainless steel.
Available shapes
Our Alumina Ceramic products can be made into different shapes like ceramic rods, ceramic bars, ceramic tubes/tubings, ceramic bushings/ceramic bushing, ceramic sleeves, ceramic seal rings, ceramic washers, ceramic ball valves, ceramic pistons, ceramic disks, ceramic plates/sheets/substrates or other customized shapes.
|
Dimension : ·Inside Diameter as small as 0.3 mm ·Longth as long as 400mm, as short as 0.5mm ·Inside Diameter tolerance we could make as fine as 0.002mm ·Outside Diameter tolerance as fine as 0.001mm ·We can be custom / OEM For the liner tube / pipes Tip: For different industries, equipment,and environment, ceramic tube have different function,We can manufacturing ceramic tube by drawing, such as surface polishing, internal and external pipe wall threads, metal parts bonded, different shapes etc by custom requirement. |
 |
|
The general specifications service 1. Factory price with a discounts 2. Fast shipment within 24 hours 3. In stocks for hot sales sizes 4. MOQ:1qty 5. Online service  |
The Custom service 1. Can be custom for special sizes by drawing 2. Can offer a samples within 2 days 3. The delivery time within 20 days after confirmed the order 4. Factory price and Senior ceramic engineer service 5. Online service  |
|
|
Al 2O 3 |
ZrO2/Y2O3 | ZrO2/MgO | MgO | SiC | Si3N4 Reaction sintered | Si3N4 Hot pressed | ALN |
| Physical properties | ||||||||
| Density (g/cm3) | 3,9 | 5,9 | 5,75 | 3,58 | 3,2 | 3,27 | 3,29 | 3,26 |
| Molecular weight (g/mole) | 102 | - | - | 40,4 | 40,1 | 140 | 140 | 41 |
| Maximum service temperature air (°C) | 1700- 1800 | 1500 | 1000 | 2200 | 1500 | 1200- 1500 | 1100- 1600 | 1000- 1800 |
| Mechanical properties | ||||||||
| Hardness (Mohs) | 9 | - | - | 5,5 | 9 | - | - | 7 |
| Modulus of elasticity (GPa) | 300-400 | 200 | 200 | 250-300 | 420 | 170-220 | 280-310 | 318 |
| Poisson's ratio | 0,25 | - | - | 0,18 | 0,14 | 0,25-0,26 | 0,27 | 0,25 |
| Fracture toughness (MPa.m1/2) | 2-3 | 7-13 | 6-10 | - | 2,5-3,5 | 3,5-5 | 6,1 | 4,5 |
| Electrical properties | ||||||||
| Dielectric constant | 9-10 | - | - | 9-10 | - | 10 | 10 | 9,2 |
| Electrical resistivity at 20°C (Ohm.cm) | >10 14 | 10 13-10 14 | >10 10 | - | 10 2-10 6 | >10 7 | 10 12- 10 15 | >10 14 |
| Dielectric strength (kV/mm) | 10-20 | 9 | 2-10 | - | - | - | - | 15 |
| Thermal properties | ||||||||
| Specific heat (J/K/kg) | 900 | 400-500 | 420 | 870-880 | 750 | 690 | 680-800 | 800 |
| Thermal conductivity (W/m/K) at 20°C | 26-35 | 2,2-3,2 | 1,5-2,5 | 40-50 | 63-155 | 9-30 | 15-43 | 180 |
| Coefficient of thermal expansion ( 10-6) from 20 to 1000°C | 8-9 | 10-11 | 5-16 | 10-13 | 4-5 | 3 | 3,3 | 4,4-5,3 |
| Melting point (°C) | 2050 | 2590 | - | 2800 | 2500 | 1900 | 1900 | 2200 |
|
Customization & Machining Service: As a ceramic parts manufacturer,us offer a wide of the ceramic specification,and customized&machinables. Get a Quote On Your Customized Now!! or up a files by EMAIL. Our Custom Capabilities: 1.High Purity Martoxid Powder 2.OEM Support, More Than 10 Technicians With 5-Year R&D Experience 3.35000 ㎡workshop, annual output could reach hundred million pieces. 4.All crafts are inspected strictly based on drawings,checked each month. 5.Best Service And Quick Delivery Via Fedex,DHL,UPS,TNT Etc. |
|
|||||||||||||||||||||||||||
FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-20 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.
Feedback
1. For any query or doubt, please contact us firstly, we will update with you soon;
2. For any other satisfaction, please also feedback to us, which could improve our service better and better.
| For more information about ceramics parts,please contact our engineers in time >>> |
  |
