Ceramic tube

Location：Home > Ceramic Product > Ceramic structure parts > Ceramic tube >

Threaded Ceramic Tube

Materials：Alumina (Al2O3)/ Zirconia(ZrO2) /Si3N4 /SiC ...etc
Sizes：Mini ID:0.3mm;Mini length:0.5mm;Max length: 400mm
Delivery times：2 -25 days(depends on the quantity)
Precision：Ra 0.1um tolerance: 0.001mm... etc
Features：Heat resistance / Wear resistance / High purity / Refractory / High Corrosion / Good Insulation
Customized：threaded ceramic tube Can be custom for special sizes and shapes
1. Factory price and shipment within 24 hours In stocks
2. MOQ:1qty
3. Payment Term: PayPal; T/T; L/C etc.
4. Shipment: by sea by air by courier by post etc.

Free quotes notice:

2020/10/11 - Romania - What's the price for 4"x4"x0.12" (100 mm x 100 mm x 3 mm

2020/10/11 - Greece - We are looking Ceramic Cylinder. We need 3 pcs item and one repair kit

2020/10/11 - Italy - Hi We require some ceramic machinery parts for a pump

2020/10/11 - Spain - Please send updated price list of ceramic welding pins

2020/10/11 - Germany - I want to buy alumina ceramic tubes: length 250 - 500 mm, OD: ~ 6mm,

2020/10/08 - Anguilla - Hi i need blue pins but i need my dimensiones.I could send You a drawin

2020/10/08 - Canada - Hello I am looking for a replacement shaft part for this machine

2020/10/08 - America - Good day,Please kindly quote us,ceramic ball bearing

2020/10/08 - Islands - I have drawings for small aluminum parts I would like you to quote on.

2020/10/08 - Mexico - Dear mam,we have requirement of component attached with this mail.

2020/10/08 - America - I need this ceramics modling plate to test in a new design machined too

2020/10/08 - Canada - Hello.I need a sample of 96%Al2O3 bushing...

2020/10/07 - Turkey - looking for valves with channel .4mm

2020/10/07 - India - 99 Alumina Ceramic Tube height: 9mmwidth: 10mmhole:

2020/10/07 - Philippines - Greetings 10 mm outer 5 mm inner 30 mm long piston spindle required pri

2020/10/07 - Singapore - Hi, I'm looking for Ceramic threaded rod, ØM6 x 45mm Length.

2020/10/07 - Malaysia - We are in need of thin alumina sheets of dimension 101.5 x 230 mm.

2020/10/06 - Thailand - Hello,I'm looking for cylinders made of alumina ceramic...

2020/10/06 - Malaysia - I need for my scientific researh to buy about 10 ceramic rods with

2020/10/06 - Singapore - we want to purchase porous ceramic rods size 1mm to 1.25 mm round.

2020/10/06 - Korea - Hi, we have 2 end effects that we need qty 2 of each. Thanks

2020/10/06 - Japan - working temperature over 1200℃ plate I'm looking for 3 pieces

2020/10/05 - Ireland - how much a few (60) samples of heat resistant ceramic plates

2020/10/05 - Switzerland - Dear We need your price offer for blue ZrO2 ceramic centering pins

2020/10/05 - Germany - Hi I am looking for a ceramic impellar rod with rubber cap

2020/10/05 - Poland - we are interested in thicker plates that range from 2 mm to 3 mm

2020/10/05 - Russia - We would be interested in plates with a thickness of 1mm. If possible,

2020/10/05 - Brazil - Good dayI am interested i a small of ceramicplate about 120 mm long and

2020/10/05 - Colombia - Please send the quote for Alumina rod size 3.17mm dia x 40 mm length

2020/09/28 - America - Please send me fob price on White Alumina Ceramic Rod Porcelain Parts

Ceramic Threaded Tube Hardness Strength And Wear Abrasion Resistance Alumina Zirconia Tubes

As a Professional Advanced Technology Ceramic Manufacturers,
Us Support To Customize Different Specifications Of Ceramic Components

The properties of threaded ceramic tube

· Flexural strength	· Chemical resistance	· Electrical insulation	· Corrosion resistance	· Dielectric strength
· Wear resistance	· Temperature resistance	· Thermal conductivity	· High voltage	· Hardness...

Ceramic threaded tube has high strength, good toughness, impact resistance, good welding performance and corundum porcelain high hardness, high wear resistance, corrosion resistance, heat resistance, overcome the low hardness of steel pipe, poor wear resistance and ceramic toughness.

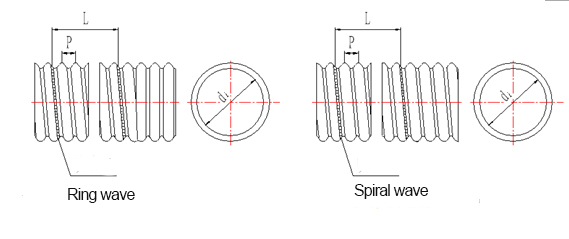

Ceramic threaded tube can be unilateral threaded pipe, pipe body full thread, pipe internal thread.

The Ceramic threaded tube is divided into outer thread pipe and inner thread pipe, and the inner thread pipe is also called dry steam pipe, inner rib pipe or inner fin pipe.It is mainly used in dry evaporator in central air conditioner.
threaded ceramic tube

The ceramic inner threaded tube is also called dry steam pipe, inner rib pipe or inner fin pipe.In the central air conditioning machine it is mainly used in dry internal threaded tube evaporator, heat exchange, outside the pipe who is cooled by the tube evaporative expansion of the refrigerant;It is also used in home and commercial air-conditioning heat exchangers or for high heat tubes.The internal surface area per unit length of internal threaded pipe is 1.5-2 times that of plain copper pipe, and its heat transfer coefficient is 1.5-2.4 times that of plain copper pipe of the same specification.

Dimension
·Inside Diameter as small as 0.3 mm
·Longth as long as 400mm, as short as 0.5mm
·Inside Diameter tolerance we could make as fine as 0.002mm
·Outside Diameter tolerance as fine as 0.001mm

Additional Information
·Discounts on large quantities of threaded ceramic tube
·In stock items will typically ship in a few working days.
·Unit price and estimated ship dates will be calculated when the length and quantity are specified.
·The length and special sizes can be customized

User industries
automotive, aviation, space travel
electrical and thermal insulation
electronics and sensors
energy technology, power generation
environmental technology
fluid technology
friction-reduction, wear- and corrosion -protection
high temperature applications
laboratory technology
laser technology
mechanical and chemical process engineering
metal industry
optics
semiconductor processing equipment
surface treatment
vacuum technology
threaded ceramic tube

Ceramic materials
· 95%--99.99% Alumina (Al2O3) · Silicon Carbide · Silicon Nitride · TTZ: Magnesia partially stabilized Zirconia (ZrO2)
· YTZP: Yttria partially stabilized Zirconia (ZrO2) · ZDY: Yttria fully stabilized Zirconia (ZrO2)...

	Al ₂O ₃	ZrO2/Y2O3	ZrO2/MgO	MgO	SiC	Si3N4 Reaction sintered	Si3N4 Hot pressed	ALN
Physical properties
Density (g/cm3)	3,9	5,9	5,75	3,58	3,2	3,27	3,29	3,26
Molecular weight (g/mole)	102	-	-	40,4	40,1	140	140	41
Maximum service temperature air (°C)	1700- 1800	1500	1000	2200	1500	1200- 1500	1100- 1600	1000- 1800
Mechanical properties
Hardness (Mohs)	9	-	-	5,5	9	-	-	7
Modulus of elasticity (GPa)	300-400	200	200	250-300	420	170-220	280-310	318
Poisson's ratio	0,25	-	-	0,18	0,14	0,25-0,26	0,27	0,25
Fracture toughness (MPa.m1/2)	2-3	7-13	6-10	-	2,5-3,5	3,5-5	6,1	4,5
Electrical properties
Dielectric constant	9-10	-	-	9-10	-	10	10	9,2
Electrical resistivity at 20°C (Ohm.cm)	>10 ₁₄	10 ₁₃-10 ₁₄	>10 ₁₀	-	10 ₂-10 ₆	>10 ₇	10 ₁₂- 10 ₁₅	>10 ₁₄
Dielectric strength (kV/mm)	10-20	9	2-10	-	-	-	-	15
Thermal properties
Specific heat (J/K/kg)	900	400-500	420	870-880	750	690	680-800	800
Thermal conductivity (W/m/K) at 20°C	26-35	2,2-3,2	1,5-2,5	40-50	63-155	9-30	15-43	180
Coefficient of thermal expansion ( 10-6) from 20 to 1000°C	8-9	10-11	5-16	10-13	4-5	3	3,3	4,4-5,3
Melting point (°C)	2050	2590	-	2800	2500	1900	1900	2200

Precision of manufacture threaded ceramic tube
Dimensional accuracy	Up to 0.001mm
Smoothness	Highest possible mirror
Concentricity	Up to 0.003mm
Parallelism	Up to 0.002mm
The inner hole tolerance	The minimum 0.005mm
Straight flute	The narrowest 0.1x100mm
The thickness of the size	Minimum to 0.02mm
The screw thread	Minimum internal thread M2
Cylindricity	Up to 0.004mm
The linear tolerance	Up to 0.001mm
The smallest aperture	The minimum 0.07mm
Precision process	CNC maching,grinding,lapping
Surface finish	Glazed,polishing or metallized
Visual quality: 1. No cracks, no dark dots, no contamination and sharp edges; 2. Evenly distributed glaze with very smooth surface

Customization & Machining Service
As a professional manufacturer of threaded ceramic tube.We can custom the sepcial specifications of threaded ceramic tube, rod or other ceramic parts.High quality,Factory price, on-time delivery, High composition of ceramics

FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-10 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.

Feedback
1. For any query or doubt, please contact us firstly, we will update with you soon;
2. For any other satisfaction, please also feedback to us, which could improve our service better and better.

For more information about threaded ceramic tube,please contact our engineers in time >>>
