As a Professional Advanced Technology Ceramic Manufacturers,
Us Support To Customize Different Specifications Of Ceramic Components
|
Dimension and tolerance: ·Diameter as small as 0.2mm， depends on length ·Length as long as 400mm, as short as 0.5mm ·Diameter tolerance we could make as fine as 0.001mm |
Additional Information:
·Discounts on large quantities of Ceramic Rod ·In stock items will typically ship in a few working days. ·Unit price and estimated ship dates will be calculated when the length and quantity are specified. ·The length and special sizes can be customized |
High heat and temperature:
The ceramic have a excellent high heat temperature resistant ability. Small ceramic rod can be used under 1800 ℃ high temperature environment.up to 10∧13 Coefficient of thermal expansion ( 10∧6) from 20 - 1000°C. up to 2800°C Melting point.
Wear Hardness abrasion:
The ceramic is better wear and abrasion resistant property than metal. The ceramic hardness (mohs)up to 9, HRA 80-90. Ceramic hardness is not second only to diamond, but far beyond the wear resistance of steel and stainless steel

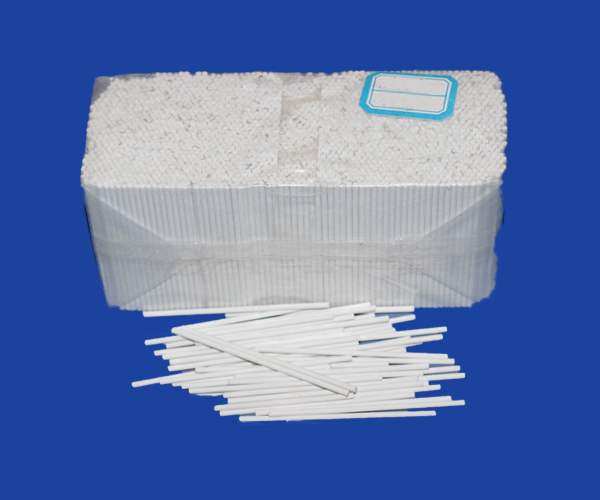

Application Of Small Ceramic Rod Stick:
1. mining industry
2. Cement industry
3. Coal handling industry
4. Steel industry
5. Port industry
6. Power plant
7. Others
| · Flexural strength | · Chemical resistance | · Electrical insulation | · Corrosion resistance | · Dielectric strength |
| · Wear resistance | · Temperature resistance | · Thermal conductivity | · High voltage | · Hardness... |
| Properties | Units | AL2O3 | ZrO2 | SiC | Si3N4 |
| Density | g/cm3 | 3.65-3.93 | 5.95-6.0 | 3.12 | 3.23 |
| Water absorption | 0 | 0 | 0 | 0 | 0 |
| Coefficientof thermal expansion | 10-16/k | 7.9-8.5 | 10.5 | 3 | 3.2 |
| Modulus of elasticity young`s mod | GPa | 280-340 | 210 | 440 | 300 |
| Poission`s ratio | / | 0.21-0.22 | 0.3 | 0.17 | 0.26 |
| HV hardness hv | MPa | 1650 | 1300-1365 | 2800 | 1500 |
| Flexural strength | MPa | 310 | 950 | 390 | 720 |
| Flexural strength(700℃) | MPa | 230 | 210 | 380 | 450 |
| Compressive strength | MPa | 2200 | 2000 | 1800 | 2300 |
| Fracture toughness | MPa*m1/2 | 4.2 | 10 | 3.9 | 6.2 |
| Heat conductivity | W/m*k | 26-30 | 2-2.2 | 120 | 25 |
| Electrical resistivity | Ω*mm2/m | >1016 | >1015 | >103 | >1013 |
| Max use temperature | ℃ | 1750 | 1050 | 1550 | 1050 |
| Resistance to acid alkaline | / | high | high | high | high |
| Dielectric constant | / | 9.6 | 29 | 9.66-10.03 | / |
| Dielectric strength | KV/mm | 8.7 | 9 | / | / |
| Thermal shock resistance | △T（℃） | 180-220 | 280-350 | 230-260 | / |
| Tensile strength | MPa | 248 | 250 | / | / |
| Precision of manufacture | |
| Dimensional accuracy | Up to 0.001mm |
| Smoothness | Highest possible mirror |
| Concentricity | Up to 0.003mm |
| Parallelism | Up to 0.002mm |
| The inner hole tolerance | The minimum 0.005mm |
| Straight flute | The narrowest 0.1x100mm |
| The thickness of the size | Minimum to 0.02mm |
| The screw thread | Minimum internal thread M2 |
| Cylindricity | Up to 0.004mm |
| The linear tolerance | Up to 0.001mm |
| The smallest aperture | The minimum 0.07mm |
| Precision process | CNC maching,grinding,lapping |
| Surface finish | Glazed,polishing or metallized |
|
Visual quality: 1. No cracks, no dark dots, no contamination and sharp edges; 2. Evenly distributed glaze with very smooth surface |
|
Customization & Machining Service
As a professional manufacturer of industrial ceramic components.We can custom the sepcial specifications of ceramic plates,blocks or other ceramic parts.High quality,Factory price, on-time delivery, High composition of ceramics
FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-10 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.
Feedback
1. For any query or doubt, please contact us firstly, we will update with you soon;
2. For any other satisfaction, please also feedback to us, which could improve our service better and better.
| For more information about ceramics parts,please contact our engineers in time >>> |
  |
