Ceramic rod

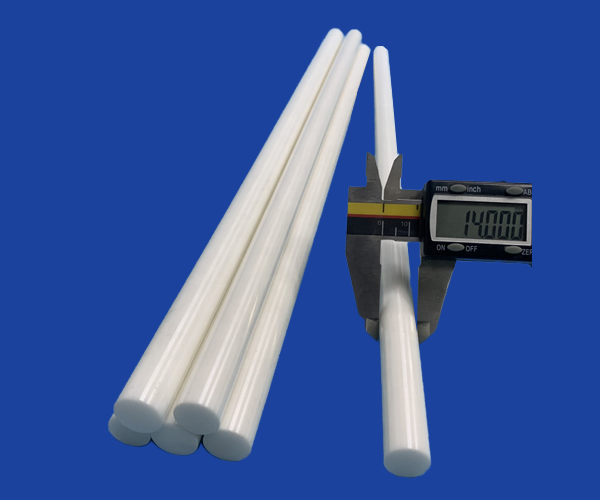

Ceramic Pin Rod High Ceramic Component Pin Rod By Ceramic Rod Factory
  • Materials:Alumina (Al2O3)/ Zirconia(ZrO2) /Si3N4 /SiC ...etc
  • Sizes:Mini OD: 0.02mm; Max length: 500mm
  • Delivery times:2 -25 days(depends on the quantity)
  • Precision:Ra 0.1um tolerance: 0.001mm... etc
  • Features:Heat resistance / Wear resistance / High purity / Refractory / High Corrosion / Good Insulation...
  • Customized:Can be custom for special sizes and shapes
    1. Factory price and shipment within 24 hours In stocks
    2. MOQ:1qty
    3. Payment Term: PayPal; T/T; L/C etc.
    4. Shipment: by sea by air by courier by post etc.
Free quotes notice:
  • 2020/10/11 - Romania - What's the price for 4"x4"x0.12" (100 mm x 100 mm x 3 mm

    2020/10/11 - Greece - We are looking Ceramic Cylinder. We need 3 pcs item and one repair kit

    2020/10/11 - Italy - Hi We require some ceramic machinery parts for a pump

    2020/10/11 - Spain - Please send updated price list of ceramic welding pins

    2020/10/11 - Germany - I want to buy alumina ceramic tubes: length 250 - 500 mm, OD: ~ 6mm,

    2020/10/08 - Anguilla - Hi i need blue pins but i need my dimensiones.I could send You a drawin

    2020/10/08 - Canada - Hello I am looking for a replacement shaft part for this machine

    2020/10/08 - America - Good day,Please kindly quote us,ceramic ball bearing

    2020/10/08 - Islands - I have drawings for small aluminum parts I would like you to quote on.

    2020/10/08 - Mexico - Dear mam,we have requirement of component attached with this mail.

    2020/10/08 - America - I need this ceramics modling plate to test in a new design machined too

    2020/10/08 - Canada - Hello.I need a sample of 96%Al2O3 bushing...

    2020/10/07 - Turkey - looking for valves with channel .4mm

    2020/10/07 - India - 99 Alumina Ceramic Tube height: 9mmwidth: 10mmhole:

    2020/10/07 - Philippines - Greetings 10 mm outer 5 mm inner 30 mm long piston spindle required pri

    2020/10/07 - Singapore - Hi, I'm looking for Ceramic threaded rod, ØM6 x 45mm Length.

    2020/10/07 - Malaysia - We are in need of thin alumina sheets of dimension 101.5 x 230 mm.

    2020/10/06 - Thailand - Hello,I'm looking for cylinders made of alumina ceramic...

    2020/10/06 - Malaysia - I need for my scientific researh to buy about 10 ceramic rods with

    2020/10/06 - Singapore - we want to purchase porous ceramic rods size 1mm to 1.25 mm round.

    2020/10/06 - Korea - Hi, we have 2 end effects that we need qty 2 of each. Thanks

    2020/10/06 - Japan - working temperature over 1200℃ plate I'm looking for 3 pieces

    2020/10/05 - Ireland - how much a few (60) samples of heat resistant ceramic plates

    2020/10/05 - Switzerland - Dear We need your price offer for blue ZrO2 ceramic centering pins

    2020/10/05 - Germany - Hi I am looking for a ceramic impellar rod with rubber cap

    2020/10/05 - Poland - we are interested in thicker plates that range from 2 mm to 3 mm

    2020/10/05 - Russia - We would be interested in plates with a thickness of 1mm. If possible,

    2020/10/05 - Brazil - Good dayI am interested i a small of ceramicplate about 120 mm long and

    2020/10/05 - Colombia - Please send the quote for Alumina rod size 3.17mm dia x 40 mm length

    2020/09/28 - America - Please send me fob price on White Alumina Ceramic Rod Porcelain Parts


  • Ceramic Pin Rod High Ceramic Component Pin Rod By Ceramic Rod Factory


    We can offer a best ceramic pin rod with advance technical ceramics. the shape or sizes of ceramic pin rod can be custom by drawing, and the standard sizes sales with factory price.

    Type of ceramic rods us manufacturer (including but not only belows)

    Shaft plunger Center rod Other materials:
    · 95%--99.99% Alumina (Al2O3)
    · Silicon Carbide   · Silicon Nitride
    · TTZ: Magnesia partially stabilized Zirconia (ZrO2)
    · YTZP: Yttria partially stabilized Zirconia (ZrO2)
    · ZDY: Yttria fully stabilized Zirconia (ZrO2)
    Wear rod bar stick Pump plunger rod
    Pins rod Positoning bar
    Piston rod Plunger rod
    Rail bar Sleeve and bushing plunger
    Machinable rods Other type rods
    Tip:
    For different industries, equipment,and environment, ceramic rods have different function,We can manufacturing ceramic rod by drawing, such as surface polishing, internal and external pipe wall threads, metal parts bonded, different shapes etc by custom requirement.

    Application
    1). Gas cooker,Water heater,Gas oven, Gas boiler,Air-conditioning and so on.
    2). As ceramic parts of flexible pad and channel heaters at operations of pre and postweld heat treatment; Welding process, stress-relieving, pre-heating & post heating, other resistance-heating environment
    3). halogen lamps, high and low pressure uv lamps, mercury lamps, uv lamp holders and heating tubes.

    4). high-power electrical applicance and all kinds of insulation device.

    Specification:
    1. Refractory, High Temperature Resistance, Maximum Used Temperature: 1800 ºC (3272ºF)...
    2. Hardness Strength, Wear Resistance Up To Mohz 9.0; HRA 80-90...
    3. High Voltage, Good Insulation Performance ,Electrical Resistivity Up To 10∧14 Ohm.Cm...
    4. High Polished Surface Up To Rz0.8(Ra0.1) ...
    5. Superior Mechanical Strength, Max 10 MPa.m1/2 Fracture toughness,
    6. Pressure Resistance, Max 2300MPa compressive strength...
    7. Anti-High Corrosion Resistance, Such As Acid  Alkali Resistance...
    8. Long Service Life...
    9. Other excellent property
    The general specifications service
    1. Factory price with a discounts
    2. Fast shipment within 24 hours
    3. In stocks for hot sales sizes
    4. MOQ:1qty
    5. Online service
    The Custom service
    1. Can be custom for special sizes by drawing
    2. Can offer a samples within 2 days
    3. The delivery time within 20 days after confirmed the order
    4. Factory price and Senior ceramic engineer service
    5. Online service


    The properties of ceramics

    · Flexural strength · Chemical resistance · Electrical insulation · Corrosion resistance · Dielectric strength
    · Wear resistance · Temperature resistance · Thermal conductivity · High voltage · Hardness...



    Ceramic materials(include but not limited belows)
    · 95%--99.99% Alumina (Al2O3)   · Silicon Carbide   · Silicon Nitride  · TTZ: Magnesia partially stabilized Zirconia (ZrO2)
    · YTZP: Yttria partially stabilized Zirconia (ZrO2)   · ZDY: Yttria fully stabilized Zirconia (ZrO2)...



    Al 23
    ZrO2/Y2O3 ZrO2/MgO MgO SiC Si3N4 Reaction sintered Si3N4 Hot pressed ALN
    Physical properties
    Density (g/cm3) 3,9 5,9 5,75 3,58 3,2 3,27 3,29 3,26
    Molecular weight (g/mole) 102 - - 40,4 40,1 140 140 41
    Maximum service temperature air (°C) 1700- 1800 1500 1000 2200 1500 1200- 1500 1100- 1600 1000- 1800
    Mechanical properties
    Hardness (Mohs) 9 - - 5,5 9 - - 7
    Modulus of elasticity (GPa) 300-400 200 200 250-300 420 170-220 280-310 318
    Poisson's ratio 0,25 - - 0,18 0,14 0,25-0,26 0,27 0,25
    Fracture toughness (MPa.m1/2) 2-3 7-13 6-10 - 2,5-3,5 3,5-5 6,1 4,5
    Electrical properties
    Dielectric constant 9-10 - - 9-10 - 10 10 9,2
    Electrical resistivity at 20°C (Ohm.cm) >10 14 10 13-10 14 >10 10 - 10 2-10 6 >10 7 10 12- 10 15 >10 14
    Dielectric strength (kV/mm) 10-20 9 2-10 - - - - 15
    Thermal properties
    Specific heat (J/K/kg) 900 400-500 420 870-880 750 690 680-800 800
    Thermal conductivity (W/m/K) at 20°C 26-35 2,2-3,2 1,5-2,5 40-50 63-155 9-30 15-43 180
    Coefficient of thermal expansion ( 10-6) from 20 to 1000°C 8-9 10-11 5-16 10-13 4-5 3 3,3 4,4-5,3
    Melting point (°C) 2050 2590 - 2800 2500 1900 1900 2200



    Customization & Machining Service:
    As a ceramic parts manufacturer,us offer a wide of the ceramic specification,and customized&machinables. Get a Quote On Your Customized Now!!  or up a files by EMAIL.

    Our Custom Capabilities:
    1.High Purity Martoxid Powder
    2.OEM Support, More Than 10 Technicians With 5-Year R&D Experience
    3.35000 ㎡workshop, annual output could reach hundred million pieces.
    4.All crafts are inspected strictly based on drawings,checked each month.
    5.Best Service And Quick Delivery Via Fedex,DHL,UPS,TNT Etc.



    Technical reference of manufacture
    Dimensional accuracy Up to 0.001mm
    Concentricity Up to 0.003mm
    Parallelism Up to 0.002mm
    The inner hole tolerance The minimum  0.005mm
    Straight flute The narrowest 0.1x100mm
    The thickness of the size Minimum to 0.02mm
    The screw thread Minimum internal thread M2
    Cylindricity Up to 0.004mm
    The linear tolerance Up to 0.001mm
    The smallest aperture The minimum 0.07mm
    Precision process CNC maching,grinding,lapping
    Surface finish Glazed,polishing or metallized



    FAQ
    1. Monthly Capacity: 50,000-60,000 pcs;
    2. Material: OEM or as per your suggestion;
    3. Lead time: about 7-20 days, pls confirm the quantities required;
    4. Incoterm: FOB, CFR, CIF;
    5. Delivery Cost: It is determinated by the destination port;
    6. Payment Term: PayPal; T/T; L/C.
    7. Shipment: by sea, by air, by courier, by post, etc.
