Custom ceramic spare parts
High precision Advance Technical Ceramic Parts OEM

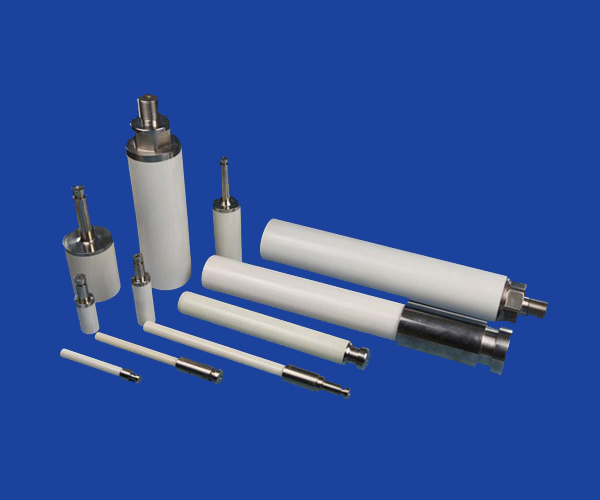

Ceramic cylinder plunger as one of the main parts of the plunger pump cylinder, with the plunger cylinder sleeve, this part is the shaft parts, shape rules, size accuracy, shape accuracy requirements are relatively high, especially its wear resistance and corrosion resistance is very important.
Type of ceramic plunger shaft piston rod us manufacturer (including but not only belows)
| Shaft plunger | Pump plunger |
| Wear Plunger rod | Filling Pump plunger |
| Pins rod | Water Pump plunger |
| Pump piston rod | Plunger rod |
| Pump shaft rod | Sleeve and bushing plunger |
| Machinable plunger | Piston plunger |
|
Tip: For different industries, equipment,and environment, ceramic plunger have different function, We can machining ceramic plunger shaft piston rod , such as surface polishing, internal and external pipe wall threads, metal parts bonded, different shapes etc by custom requirement. |
|
| Cylinder bore D (φ) | L (mm) | Environment temperature (℃) | Working pressure (MPa) |
| 8 | 10 ～ 150 | -20～70 | 0.1～1.0 |
| 8 | 10 ～ 150 | -20～70 | 0.1～1.0 |
| 10 | 10 ～ 200 | -20～70 | 0.1～1.0 |
| 10 | 10 ～ 200 | -20～70 | 0.1～1.0 |
| 12 | 10 ～ 250 | -20～70 | 0.1～1.0 |
| 12 | 10 ～ 250 | -20～70 | 0.1～1.0 |
| 16 | 10 ～ 300 | -20～70 | 0.1～1.0 |
| 16 | 10 ～ 300 | -20～70 | 0.1～1.0 |
| 20 | 10 ～ 600 | -20～70 | 0.1～1.0 |
| 20 | 10 ～ 600 | -20～70 | 0.1～1.0 |
| 25 | 10 ～ 600 | -20～70 | 0.1～1.0 |
| 25 | 10 ～ 600 | -20～70 | 0.1～1.0 |
| 32 | 10 ～ 600 | -20～70 | 0.1～1.0 |
| 32 | 10 ～ 600 | -20～70 | 0.1～1.0 |
| 40 | 10 ～ 600 | -20～70 | 0.1～1.0 |
| 40 | 10 ～ 600 | -20～70 | 0.1～1.0 |
Applied to the pump
| Rotary lobe pump | Diaphragm pump | Vane pump | Progressing cavity pump |
| Rotary gear pump | Screw pump | Peristaltic hose | Plunger Pumps |
| Piston pump | Gear pump | Bladder Pumps | Double Diaphragm Pumps |
| Peristaltic Pumps | Rotary Lobe Pumps | Rotary Vane Vacuum Pumps |
Others... |
|
|
Al 2O 3 |
ZrO2/Y2O3 | ZrO2/MgO | MgO | SiC | Si3N4 Reaction sintered | Si3N4 Hot pressed | ALN |
| Physical properties | ||||||||
| Density (g/cm3) | 3,9 | 5,9 | 5,75 | 3,58 | 3,2 | 3,27 | 3,29 | 3,26 |
| Molecular weight (g/mole) | 102 | - | - | 40,4 | 40,1 | 140 | 140 | 41 |
| Maximum service temperature air (°C) | 1700- 1800 | 1500 | 1000 | 2200 | 1500 | 1200- 1500 | 1100- 1600 | 1000- 1800 |
| Mechanical properties | ||||||||
| Hardness (Mohs) | 9 | - | - | 5,5 | 9 | - | - | 7 |
| Modulus of elasticity (GPa) | 300-400 | 200 | 200 | 250-300 | 420 | 170-220 | 280-310 | 318 |
| Poisson's ratio | 0,25 | - | - | 0,18 | 0,14 | 0,25-0,26 | 0,27 | 0,25 |
| Fracture toughness (MPa.m1/2) | 2-3 | 7-13 | 6-10 | - | 2,5-3,5 | 3,5-5 | 6,1 | 4,5 |
| Electrical properties | ||||||||
| Dielectric constant | 9-10 | - | - | 9-10 | - | 10 | 10 | 9,2 |
| Electrical resistivity at 20°C (Ohm.cm) | >10 14 | 10 13-10 14 | >10 10 | - | 10 2-10 6 | >10 7 | 10 12- 10 15 | >10 14 |
| Dielectric strength (kV/mm) | 10-20 | 9 | 2-10 | - | - | - | - | 15 |
| Thermal properties | ||||||||
| Specific heat (J/K/kg) | 900 | 400-500 | 420 | 870-880 | 750 | 690 | 680-800 | 800 |
| Thermal conductivity (W/m/K) at 20°C | 26-35 | 2,2-3,2 | 1,5-2,5 | 40-50 | 63-155 | 9-30 | 15-43 | 180 |
| Coefficient of thermal expansion ( 10-6) from 20 to 1000°C | 8-9 | 10-11 | 5-16 | 10-13 | 4-5 | 3 | 3,3 | 4,4-5,3 |
| Melting point (°C) | 2050 | 2590 | - | 2800 | 2500 | 1900 | 1900 | 2200 |
|
Customization & Machining Service: As a ceramic plunger manufacturer,us offer a wide of the ceramic plunger specification,and customized&machinables. Get a Quote On Your Customized Plunger Now!! or up a files by EMAIL. Our Custom Capabilities: 1.High Purity Martoxid Powder 2.OEM Support, More Than 10 Technicians With 5-Year R&D Experience 3.35000 ㎡workshop, annual output could reach hundred million pieces. 4.All crafts are inspected strictly based on drawings,checked each month. 5.Best Service And Quick Delivery Via Fedex,DHL,UPS,TNT Etc. Lead time: within 20 working days after comfirmed order. the samples within 3 days |
|
|||||||||||||||||||||||||||
FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-20 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.
Feedback
1. For any query or doubt, please contact us firstly, we will update with you soon;
2. For any other satisfaction, please also feedback to us, which could improve our service better and better.
| For more information about ceramics parts,please contact our engineers in time >>> |
  |
