Ceramic standoff are ideally suited for high temperature applications and have exceptional strength in compression and tension. Our ceramic standoff can withstand very high voltage without flashover. They are available in a variety of diameters ranging from 0.250" (6,35mm) to 1.000" (25.4mm); in lengths from 0.250" (6,35mm) to 4.000" (101,60mm); and with internal threads from 6-32 to 10-32 and 1/4-20.
Ceramic Standoffs are used in a wide range of industries, due to their excellent mechanical, electrical, thermal and biochemical properties. We offer many types of ceramic finished parts from porcelain, steatite, cordierite, zirconia, mullite and various percentages of alumina.
Thread metric: M3,M4,M5,M6
|
User industries: automotive, aviation, space travel electrical and thermal insulation electronics and sensors energy technology, power generation environmental technology fluid technology friction-reduction, wear- and corrosion -protection high temperature applications laboratory technology laser technology mechanical and chemical process engineering metal industry optics semiconductor processing equipment surface treatment vacuum technology |
Features of ceramic: 1. Refractory, High Temperature Resistance, Maximum Used Temperature: 1800 ºC (3272ºF)... 2. Hardness Strength Up To Mohs 9.0; HRA 80-90, Wear Resistance wear rate 0.68 mm3·m-2·h-1.... 3. High Voltage, Good Insulation Performance ,Electrical Resistivity Up To 10∧14 Ohm.Cm... 4. High Polished Surface Up To Rz0.8(Ra0.1) ... 5. Superior Mechanical Strength, Max 10 MPa.m1/2 Fracture toughness, 6. Pressure Resistance, Max 2300MPa compressive strength... 7. Anti-High Corrosion Resistance, Such As Acid Alkali Resistance... 8. Long Service Life... 9. Other excellent property |

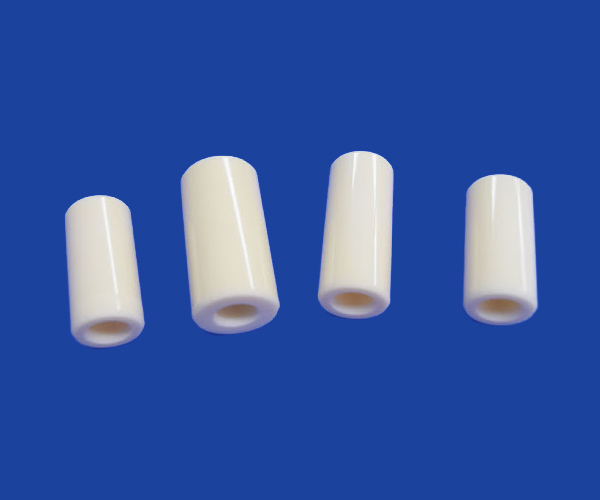

Multi type ceramic standoff showcase:
Application engineering services are available to meet special customer requirements.
|
The general specifications service 1. Factory price with a discounts 2. Fast shipment within 24 hours 3. In stocks for hot sales sizes 4. MOQ:1qty 5. Online service  |
The Custom service 1. Can be custom for special sizes by drawing 2. Can offer a samples within 2 days 3. The delivery time within 20 days after confirmed the order 4. Factory price and Senior ceramic engineer service 5. Online service  |
Other type ceramic standoff:
ceramic standoff terminal
thermal standoff
thermal insulating standoffs
high temp standoff
threaded standoffs spacers
alumina standoff
|
|
Al 2O 3 |
ZrO2/Y2O3 | ZrO2/MgO | MgO | SiC | Si3N4 Reaction sintered | Si3N4 Hot pressed | ALN |
| Physical properties | ||||||||
| Density (g/cm3) | 3,9 | 5,9 | 5,75 | 3,58 | 3,2 | 3,27 | 3,29 | 3,26 |
| Molecular weight (g/mole) | 102 | - | - | 40,4 | 40,1 | 140 | 140 | 41 |
| Maximum service temperature air (°C) | 1700- 1800 | 1500 | 1000 | 2200 | 1500 | 1200- 1500 | 1100- 1600 | 1000- 1800 |
| Mechanical properties | ||||||||
| Hardness (Mohs) | 9 | - | - | 5,5 | 9 | - | - | 7 |
| Modulus of elasticity (GPa) | 300-400 | 200 | 200 | 250-300 | 420 | 170-220 | 280-310 | 318 |
| Poisson's ratio | 0,25 | - | - | 0,18 | 0,14 | 0,25-0,26 | 0,27 | 0,25 |
| Fracture toughness (MPa.m1/2) | 2-3 | 7-13 | 6-10 | - | 2,5-3,5 | 3,5-5 | 6,1 | 4,5 |
| Electrical properties | ||||||||
| Dielectric constant | 9-10 | - | - | 9-10 | - | 10 | 10 | 9,2 |
| Electrical resistivity at 20°C (Ohm.cm) | >10 14 | 10 13-10 14 | >10 10 | - | 10 2-10 6 | >10 7 | 10 12- 10 15 | >10 14 |
| Dielectric strength (kV/mm) | 10-20 | 9 | 2-10 | - | - | - | - | 15 |
| Thermal properties | ||||||||
| Specific heat (J/K/kg) | 900 | 400-500 | 420 | 870-880 | 750 | 690 | 680-800 | 800 |
| Thermal conductivity (W/m/K) at 20°C | 26-35 | 2,2-3,2 | 1,5-2,5 | 40-50 | 63-155 | 9-30 | 15-43 | 180 |
| Coefficient of thermal expansion ( 10-6) from 20 to 1000°C | 8-9 | 10-11 | 5-16 | 10-13 | 4-5 | 3 | 3,3 | 4,4-5,3 |
| Melting point (°C) | 2050 | 2590 | - | 2800 | 2500 | 1900 | 1900 | 2200 |
|
Customization & Machining Service: As a ceramic insulator manufacturer,us offer a wide of the ceramic specification,and customized&machinables. Get a Quote On Your Customized Now!! or up a files by EMAIL. Our Custom Capabilities: 1.High Purity Martoxid Powder 2.OEM Support, More Than 10 Technicians With 5-Year R&D Experience 3.35000 ㎡workshop, annual output could reach hundred million pieces. 4.All crafts are inspected strictly based on drawings,checked each month. 5.Best Service And Quick Delivery Via Fedex,DHL,UPS,TNT Etc. |
|
|||||||||||||||||||||||||||
