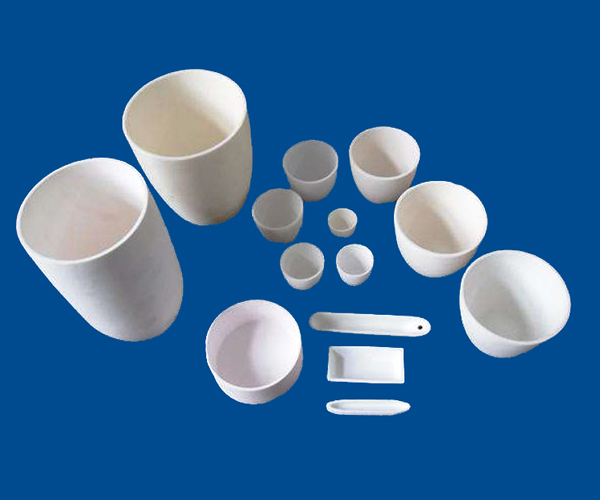

Type 1: Cylinder ceramic crucible
| Outer diameter(mm) | Height(mm) | Wall thickness(mm) | Volume(ml) |
| 20 | 30 | 1.5 | 10 |
| 30 | 30 | 1.8 | 15 |
| 30 | 60 | 1.8 | 30 |
| 36 | 45 | 2.5 | 30 |
| 40 | 32 | 1.6 | 30 |
| 40 | 50 | 2.5 | 45 |
| 43 | 42 | 1.8 | 50 |
| 60 | 60 | 2.5 | 130 |
| 59 | 90 | 2.5 | 200 |
| 100 | 40 | 5.5 | 200 |
| 80 | 80 | 3.3 | 350 |
| 100 | 100 | 4.0 | 550 |
| 135 | 160 | 6.0 | 2000 |
| Upper OD(mm | Bottom OD (mm) | Height(mm) | Wall thickness (mm) | Volume (ml) |
| 25 | 14 | 20 | 1.5 | 5 |
| 30 | 18 | 30 | 1.7 | 10 |
| 34 | 20 | 38 | 1.9 | 20 |
| 46 | 25 | 40 | 2 | 30 |
| 56 | 30 | 45 | 2.9 | 50 |
| 55 | 48 | 53 | 2.5 | 90 |
| 47 | 37 | 68 | 3.5 | 100 |
| 55 | 48 | 72 | 2.6 | 140 |
| 70 | 44 | 85 | 2.9 | 200 |
| 75 | 50 | 90 | 2.9 | 300 |
| 80 | 65 | 110 | 3.3 | 400 |
| 100 | 70 | 120 | 3.5 | 600 |
| 105 | 70 | 150 | 4.5 | 800 |
| 113 | 75 | 160 | 3.5 | 1200 |
| 125 | 80 | 155 | 3.5 | 1200 |
| Shape | Length(mm) | Width(mm) | Height(mm) | Wall thickness(mm) | Volume(ml) |
| Rectangular | 27 | 23 | 10 | 2 | 5 |
| Rectangular | 97 | 17 | 12 | 2 | 7 |
| Rectangular | 60 | 30 | 15 | 2 | 20 |
| Rectangular | 100 | 20 | 20 | 2 | 25 |
| Square | 75 | 75 | 40 | 2.5 | 130 |
| Square | 85 | 85 | 40 | 3 | 200 |
| Rectangular | 155 | 120 | 55 | 5.5 | 550 |
| Square | 100 | 100 | 40 | 4 | 550 |
| Square | 160 | 160 | 78 | 6 .5 |
1400 |
|
|
Al 2O 3 |
ZrO2/Y2O3 | ZrO2/MgO | MgO | SiC | Si3N4 Reaction sintered | Si3N4 Hot pressed | ALN |
| Physical properties | ||||||||
| Density (g/cm3) | 3,9 | 5,9 | 5,75 | 3,58 | 3,2 | 3,27 | 3,29 | 3,26 |
| Molecular weight (g/mole) | 102 | - | - | 40,4 | 40,1 | 140 | 140 | 41 |
| Maximum service temperature air (°C) | 1700- 1800 | 1500 | 1000 | 2200 | 1500 | 1200- 1500 | 1100- 1600 | 1000- 1800 |
| Mechanical properties | ||||||||
| Hardness (Mohs) | 9 | - | - | 5,5 | 9 | - | - | 7 |
| Modulus of elasticity (GPa) | 300-400 | 200 | 200 | 250-300 | 420 | 170-220 | 280-310 | 318 |
| Poisson's ratio | 0,25 | - | - | 0,18 | 0,14 | 0,25-0,26 | 0,27 | 0,25 |
| Fracture toughness (MPa.m1/2) | 2-3 | 7-13 | 6-10 | - | 2,5-3,5 | 3,5-5 | 6,1 | 4,5 |
| Electrical properties | ||||||||
| Dielectric constant | 9-10 | - | - | 9-10 | - | 10 | 10 | 9,2 |
| Electrical resistivity at 20°C (Ohm.cm) | >10 14 | 10 13-10 14 | >10 10 | - | 10 2-10 6 | >10 7 | 10 12- 10 15 | >10 14 |
| Dielectric strength (kV/mm) | 10-20 | 9 | 2-10 | - | - | - | - | 15 |
| Thermal properties | ||||||||
| Specific heat (J/K/kg) | 900 | 400-500 | 420 | 870-880 | 750 | 690 | 680-800 | 800 |
| Thermal conductivity (W/m/K) at 20°C | 26-35 | 2,2-3,2 | 1,5-2,5 | 40-50 | 63-155 | 9-30 | 15-43 | 180 |
| Coefficient of thermal expansion ( 10-6) from 20 to 1000°C | 8-9 | 10-11 | 5-16 | 10-13 | 4-5 | 3 | 3,3 | 4,4-5,3 |
| Melting point (°C) | 2050 | 2590 | - | 2800 | 2500 | 1900 | 1900 | 2200 |
|
Customization & Machining Service: As a ceramic plates manufacturer,us offer a wide of the ceramic specification,and customized&machinables. Get a Quote On Your Customized Now!! or up a files by EMAIL. Our Custom Capabilities: 1.High Purity Martoxid Powder 2.OEM Support, More Than 10 Technicians With 5-Year R&D Experience 3.35000 ㎡workshop, annual output could reach hundred million pieces. 4.All crafts are inspected strictly based on drawings,checked each month. 5.Best Service And Quick Delivery Via Fedex,DHL,UPS,TNT Etc. |
|
|||||||||||||||||||||||||||
FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-20 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.
