Dispensing nozzle ceramic customized zirconia alumina ceramic dispensing nozzle

Materials：Alumina (Al2O3)/ Zirconia(ZrO2) /Si3N4 /SiC ...etc
Sizes：Custom according to the drawings
Delivery times：2 -25 days(depends on the quantity)
Precision：Ra 0.1um tolerance: 0.001mm... etc
Features：Heat resistance / Wear resistance / High purity / Refractory / High Corrosion / Good Insulation
Customized：Can be custom for special sizes and shapes
1. Factory price and shipment within 24 hours In stocks
2. MOQ:1qty
3. Payment Term: PayPal; T/T; L/C etc.
4. Shipment: by sea by air by courier by post etc.

Free quotes notice:

2020/10/11 - Romania - What's the price for 4"x4"x0.12" (100 mm x 100 mm x 3 mm

2020/10/11 - Greece - We are looking Ceramic Cylinder. We need 3 pcs item and one repair kit

2020/10/11 - Italy - Hi We require some ceramic machinery parts for a pump

2020/10/11 - Spain - Please send updated price list of ceramic welding pins

2020/10/11 - Germany - I want to buy alumina ceramic tubes: length 250 - 500 mm, OD: ~ 6mm,

2020/10/08 - Anguilla - Hi i need blue pins but i need my dimensiones.I could send You a drawin

2020/10/08 - Canada - Hello I am looking for a replacement shaft part for this machine

2020/10/08 - America - Good day,Please kindly quote us,ceramic ball bearing

2020/10/08 - Islands - I have drawings for small aluminum parts I would like you to quote on.

2020/10/08 - Mexico - Dear mam,we have requirement of component attached with this mail.

2020/10/08 - America - I need this ceramics modling plate to test in a new design machined too

2020/10/08 - Canada - Hello.I need a sample of 96%Al2O3 bushing...

2020/10/07 - Turkey - looking for valves with channel .4mm

2020/10/07 - India - 99 Alumina Ceramic Tube height: 9mmwidth: 10mmhole:

2020/10/07 - Philippines - Greetings 10 mm outer 5 mm inner 30 mm long piston spindle required pri

2020/10/07 - Singapore - Hi, I'm looking for Ceramic threaded rod, ØM6 x 45mm Length.

2020/10/07 - Malaysia - We are in need of thin alumina sheets of dimension 101.5 x 230 mm.

2020/10/06 - Thailand - Hello,I'm looking for cylinders made of alumina ceramic...

2020/10/06 - Malaysia - I need for my scientific researh to buy about 10 ceramic rods with

2020/10/06 - Singapore - we want to purchase porous ceramic rods size 1mm to 1.25 mm round.

2020/10/06 - Korea - Hi, we have 2 end effects that we need qty 2 of each. Thanks

2020/10/06 - Japan - working temperature over 1200℃ plate I'm looking for 3 pieces

2020/10/05 - Ireland - how much a few (60) samples of heat resistant ceramic plates

2020/10/05 - Switzerland - Dear We need your price offer for blue ZrO2 ceramic centering pins

2020/10/05 - Germany - Hi I am looking for a ceramic impellar rod with rubber cap

2020/10/05 - Poland - we are interested in thicker plates that range from 2 mm to 3 mm

2020/10/05 - Russia - We would be interested in plates with a thickness of 1mm. If possible,

2020/10/05 - Brazil - Good dayI am interested i a small of ceramicplate about 120 mm long and

2020/10/05 - Colombia - Please send the quote for Alumina rod size 3.17mm dia x 40 mm length

2020/09/28 - America - Please send me fob price on White Alumina Ceramic Rod Porcelain Parts

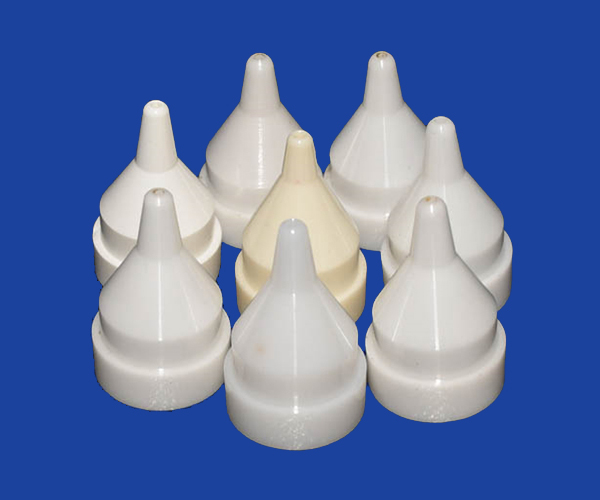

Dispensing Nozzle Ceramic Customized Zirconia Alumina Ceramic Dispensing Nozzle

We process and manufacture high precision dispensing nozzles for flip chip filling and packaging applications. Precision tolerances, combined with a smooth concentric tip, improve dispensing consistency.

Part of us machinable ceramic dispenving nozzles:

I.D. (Ф)	O.D. (Ф)	I.D. (Ф)	O.D. (Ф)	I.D. (Ф)	O.D. (Ф)
0.1	0.2	0.25	0.35	0.4	0.5
0.15	0.25	0.3	0.4	0.45	0.55
0.2	0.3	0.35	0.45	0.5	0.6
0.1	0.2	0.15	0.25	0.6	0.7

Alumina ceramic is the most mature of the engineering ceramics, offering excellent electrical insulation properties together with high hardness and good wear resistance,but relatively low strength and fracture toughness.Alumina ceramics are generally white but may also be pink or ivory.The color is derived from either the sintering additives or impurities in the raw materials.

The excellent advance ceramic propeties:

· Flexural strength	· Chemical resistance	· Electrical insulation	· Corrosion resistance	· Dielectric strength
· Wear resistance	· Temperature resistance	· Thermal conductivity	· High voltage	· Hardness...

Part of ceramic materials parameter:

	Al 2O 3	ZrO2/Y2O3	ZrO2/MgO	MgO	SiC	Si3N4 Reaction sintered	Si3N4 Hot pressed	ALN
Physical properties
Density (g/cm3)	3,9	5,9	5,75	3,58	3,2	3,27	3,29	3,26
Molecular weight (g/mole)	102	-	-	40,4	40,1	140	140	41
Maximum service temperature air (°C)	1700- 1800	1500	1000	2200	1500	1200- 1500	1100- 1600	1000- 1800
Mechanical properties
Hardness (Mohs)	9	-	-	5,5	9	-	-	7
Modulus of elasticity (GPa)	300-400	200	200	250-300	420	170-220	280-310	318
Poisson's ratio	0,25	-	-	0,18	0,14	0,25-0,26	0,27	0,25
Fracture toughness (MPa.m1/2)	2-3	7-13	6-10	-	2,5-3,5	3,5-5	6,1	4,5
Electrical properties
Dielectric constant	9-10	-	-	9-10	-	10	10	9,2
Electrical resistivity at 20°C (Ohm.cm)	>10 14	10 13-10 14	>10 10	-	10 2-10 6	>10 7	10 12- 10 15	>10 14
Dielectric strength (kV/mm)	10-20	9	2-10	-	-	-	-	15
Thermal properties
Specific heat (J/K/kg)	900	400-500	420	870-880	750	690	680-800	800
Thermal conductivity (W/m/K) at 20°C	26-35	2,2-3,2	1,5-2,5	40-50	63-155	9-30	15-43	180
Coefficient of thermal expansion ( 10-6) from 20 to 1000°C	8-9	10-11	5-16	10-13	4-5	3	3,3	4,4-5,3
Melting point (°C)	2050	2590	-	2800	2500	1900	1900	2200

Technical reference of manufacture
Dimensional accuracy	Up to 0.001mm
Concentricity	Up to 0.003mm
Parallelism	Up to 0.002mm
The inner hole tolerance	The minimum 0.005mm
Straight flute	The narrowest 0.1x100mm
The thickness of the size	Minimum to 0.02mm
The screw thread	Minimum internal thread M2
Cylindricity	Up to 0.004mm
The linear tolerance	Up to 0.001mm
The smallest aperture	The minimum 0.07mm
Precision process	CNC maching,grinding,lapping
Surface finish	Glazed,polishing or metallized
Visual quality:
1. No cracks, no dark dots, no contamination and sharp edges;
2. Evenly distributed glaze with very smooth surface

As a profesion ceramic component manufacturer,we can machining and customied the ceramic nozzles or ceramic dispensing nozzles by customer requirments.

1. Precision manufactuering
2. Fast delivery on time
3. Excellent ceramic materials
4. Competitive price
5. Free sample for the mass
6. Quality testing

For more information about ceramics,please contact our engineers in time
