Ceramic bushing
Ceramic bushing bearing with sleeve bearing
  • Brand:OEM
  • Material:Alumina Zirconia Si3N4 SiC
  • Precision:Ra0.1 um tolerance 0.001mm
  • Features:Heat resistance / Wear resistance / High purity / Refractory / High Corrosion / Good Insulation
  • Color:Can be customized
  • Customized:YES OEM


Ceramic Bushing Bearing With Sleeve Bearing



The Ceramic bushing bearing action Ring sleeve in the valve application field, bushing within the valve cover, generally uses the advanced ceramics and other corrosion-resistant materials, used for sealing effect. The bushings made of grinding bearings with abrasion-reducing materials are also called bearing bushings and bushings. Usually cast on the inner surface of the bearing, mainly in order to reduce costs, save valuable grinding materials. Thickness 0.5-6mm, for large size or important bearings. Ceramic bushing bearing  are mainly to replace the wear of the shaft, in addition to the support shaft operation, friction and wear reduction, vibration reduction role.

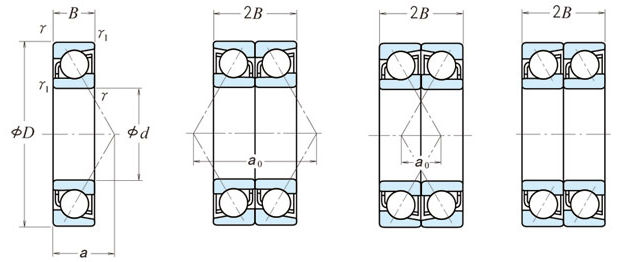

Part of available ceramic bushing bearing:

inner diameter: d outer diameter: D wide: B Basic dynamic load rating Maximum permissible speed Basic static load rating
(φ) (φ) (mm) (N) (rpm) (N)
62 9 13000 15000 8150 -
40 68 9 13800 14000 10200
45 75 10 16500 12000 10800
50 80 10 16800 11000 11400
55 90 11 20300 10000 14000
60 95 11 20800 9500 15000
80 125 14 35100 7000 31500
85 130 14 35800 6700 33500
100 150 16 46200 5600 44000
110 170 19 60500 5000 57000
12 32 14 10600 20000 6200


As a professional manufacturer of industrial ceramic components.We can custom the sepcial specifications of ceramic bushing bearing or other ceramic parts.

Ceramic bushing bearing is a kind of inorganic nonmetallic ceramic material made of natural or synthetic compound through forming and sintering at high temperature.It has high melting point, high hardness, high wear resistance, oxidation resistance and other advantages.

Best stiffness, highest hardness, high compressive strength, dimensional stability, electrical insulation, corrosion resistance
Delivery:
Custom OEM will be shipped within 15 days after determining the parameters
The samples will be shipped within 3 days
Quick Delivery Via Fedex,DHL,UPS,TNT Etc.
Support customer to designate shipping company

For more informations (the price,delivery time,moq etc)about the ceramic plates, please contact us or email:admin@cerampart.com

Machining process
Raw materials-Molding process - Sintering - Machining & Grinding - Quality Inspector


Mingrui ceramic parts property
· Flexural strength · Chemical resistance · Electrical insulation · Corrosion resistance · Dielectric strength
· Wear resistance · Temperature resistance · Thermal conductivity · High voltage · Hardness...
Ceramic materials(include but not limited belows)
· 95%--99.99% Alumina (Al2O3)   · Silicon Carbide   · Silicon Nitride  · TTZ: Magnesia partially stabilized Zirconia (ZrO2)
· YTZP: Yttria partially stabilized Zirconia (ZrO2)   · ZDY: Yttria fully stabilized Zirconia (ZrO2)...



Al 23
ZrO2/Y2O3 ZrO2/MgO MgO SiC Si3N4 Reaction sintered Si3N4 Hot pressed ALN
Physical properties
Density (g/cm3) 3,9 5,9 5,75 3,58 3,2 3,27 3,29 3,26
Molecular weight (g/mole) 102 - - 40,4 40,1 140 140 41
Maximum service temperature air (°C) 1700- 1800 1500 1000 2200 1500 1200- 1500 1100- 1600 1000- 1800
Mechanical properties
Hardness (Mohs) 9 - - 5,5 9 - - 7
Modulus of elasticity (GPa) 300-400 200 200 250-300 420 170-220 280-310 318
Poisson's ratio 0,25 - - 0,18 0,14 0,25-0,26 0,27 0,25
Fracture toughness (MPa.m1/2) 2-3 7-13 6-10 - 2,5-3,5 3,5-5 6,1 4,5
Electrical properties
Dielectric constant 9-10 - - 9-10 - 10 10 9,2
Electrical resistivity at 20°C (Ohm.cm) >10 14 10 13-10 14 >10 10 - 10 2-10 6 >10 7 10 12- 10 15 >10 14
Dielectric strength (kV/mm) 10-20 9 2-10 - - - - 15
Thermal properties
Specific heat (J/K/kg) 900 400-500 420 870-880 750 690 680-800 800
Thermal conductivity (W/m/K) at 20°C 26-35 2,2-3,2 1,5-2,5 40-50 63-155 9-30 15-43 180
Coefficient of thermal expansion ( 10-6) from 20 to 1000°C 8-9 10-11 5-16 10-13 4-5 3 3,3 4,4-5,3
Melting point (°C) 2050 2590 - 2800 2500 1900 1900 2200



Customization & Machining Service:
As a ceramic parts manufacturer,us offer a wide of the ceramic specification,and customized&machinables. Get a Quote On Your Customized Now!!  or up a files by EMAIL.

Our Custom Capabilities:
1.High Purity Martoxid Powder
2.OEM Support, More Than 10 Technicians With 5-Year R&D Experience
3.35000 ㎡workshop, annual output could reach hundred million pieces.
4.All crafts are inspected strictly based on drawings,checked each month.
5.Best Service And Quick Delivery Via Fedex,DHL,UPS,TNT Etc.



Technical reference of manufacture
Dimensional accuracy Up to 0.001mm
Concentricity Up to 0.003mm
Parallelism Up to 0.002mm
The inner hole tolerance The minimum  0.005mm
Straight flute The narrowest 0.1x100mm
The thickness of the size Minimum to 0.02mm
The screw thread Minimum internal thread M2
Cylindricity Up to 0.004mm
The linear tolerance Up to 0.001mm
The smallest aperture The minimum 0.07mm
Precision process CNC maching,grinding,lapping
Surface finish Glazed,polishing or metallized



FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-20 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.

Feedback
1. For any query or doubt, please contact us firstly, we will update with you soon;
2. For any other satisfaction, please also feedback to us, which could improve our service better and better.

For more information about ceramics parts,please contact our engineers in time  >>>
