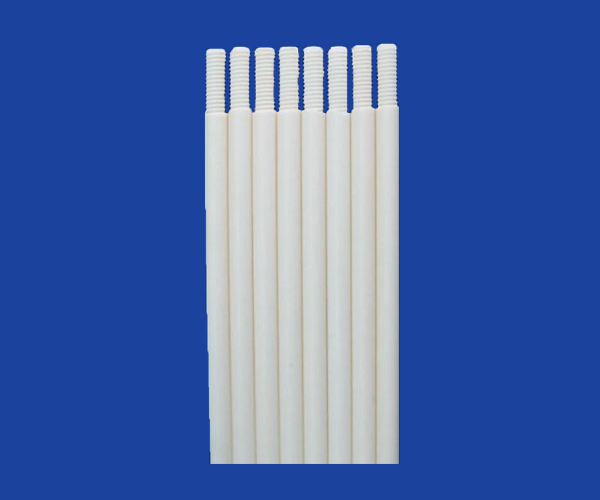

Alumina ceramic rod bar insulator heater threaded precision ceramic rods

Brand：Mingrui Ceramic
Material：Alumina ceramic
Precision：0.001mm
Features：Heat resistance High purity
Color：White Blue Ivory Black etc.
Customized：YES OEM

CONTACT

Send Message

Alumina Ceramic Rod Bar Insulator Heater Threaded Precision Ceramic Rods

High precision Alumina Ceramic Parts

We can supply alumina ceramic rod of different specifications.Alumina ceramic rod is made of different proportions of high purity alumina from high-performance technical ceramic materials. Enhance performance and product life by using the material best suited to your application.

The shape of the ceramic bar:

Cylindrical, Square, Screw Threadand, Porous...

Application of ceramic rods：

Filter,Shaft,Plunger Rod,Piston Rod,Cylinder Rod,Insulating Rod,Electric Heater,Heat Conducting Bar,Sharper rod,Honing rod and others.

High purity alumina ceramics:
99.99% Alumina ceramic; 99.9% Alumina ceramic

Ordinary alumina ceramics:
99.7% Alumina ceramic,99.5% Alumina ceramic,99% Alumina ceramic,97% Alumina ceramic,96% Alumina ceramic,95% Alumina ceramic.

Part of us machining case specifications:

OuterDiameter (Inch)	Outer Diameter (mm)	Maximum Length
0.137	3.48	36in / 914mm
0.188	4.78	36in / 914mm
0.197	5.00	36in / 914mm
0.212	5.38	36in / 914mm
0.250	6.35	36in / 914mm
0.264	6.71	36in / 914mm
0.313	7.95	36in / 914mm
0.375	9.53	36in / 914mm
0.388	9.86	36in / 914mm
0.4	10.16	36in / 914mm
0.44	11.18	36in / 914mm
0.500	12.70	36in / 914mm
0.518	13.16	36in / 914mm

All of cermaic rods can be machinable for industry applications

Secifications of the alumina cermaics:

Properties	Unit	Alumina (AL2O3)
Properties	Unit	AL2O3≥95	AL2O3≥99	AL2O3≥99.5	AL2O3≥99.8
Volumetric density	g/cm3	3.7	3.80-3.85	3.85	3.9
Hardness	HRA≥	86	88	88	88
Flexural Strength	Mpa≥	300	350	400	400
Maximum temperature	℃	1500	1500	1500	1500
Line expansion coefficient	×10-6/℃	7.5	8.2	8.2	8.2
Dielectric constant	εr(20℃,1MHz)	9	9.2	9.2	9.2
Media loss	tanδ×10-4,1MHz	3	2	2	2
Volumetric resistivity	Ω·cm(20℃)	1013	1014	1014	1014
Breakdown strength	KV/mm,DC≥	20	20	20	20
Acidic resistance	mg/cm2≤	0.7	0.7	0.7	0.7
Alkaline resistance	mg/cm2≤	0.2	0.1	0.1	0.1
Abrasion resistance	g/cm2≤	0.2	0.1	0.1	0.1
Compressive strength	Mpa≥	2500	2500	2500	2800
Flexural Strength	Mpa≥	200	350	350	350
Elastic modulus	Gpa	300	350	350	350
Poisson-Pine ratio		0.2	0.22	0.22	0.22
Thermalcoefficient	W/m·K(20℃)	20	25	25	25

Precision of manufacture
Dimensional accuracy	Up to 0.001mm
Smoothness	Highest possible mirror
Concentricity	Up to 0.003mm
Parallelism	Up to 0.002mm
The inner hole tolerance	The minimum 0.005mm
Straight flute	The narrowest 0.1x100mm
The thickness of the size	Minimum to 0.02mm
The screw thread	Minimum internal thread M2
Cylindricity	Up to 0.004mm
The linear tolerance	Up to 0.001mm
The smallest aperture	The minimum 0.07mm
Precision process	CNC maching,grinding,lapping
Surface finish	Glazed,polishing or metallized
Visual quality: 1. No cracks, no dark dots, no contamination and sharp edges; 2. Evenly distributed glaze with very smooth surface

As a manufacturer of ceramic parts, we offer customization of ceramic bars of special sizes and shapes.High Precision, Fast Delivery Time, High Composition.
