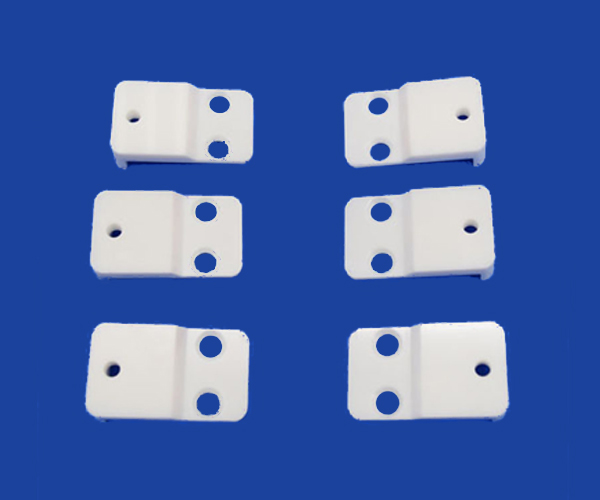

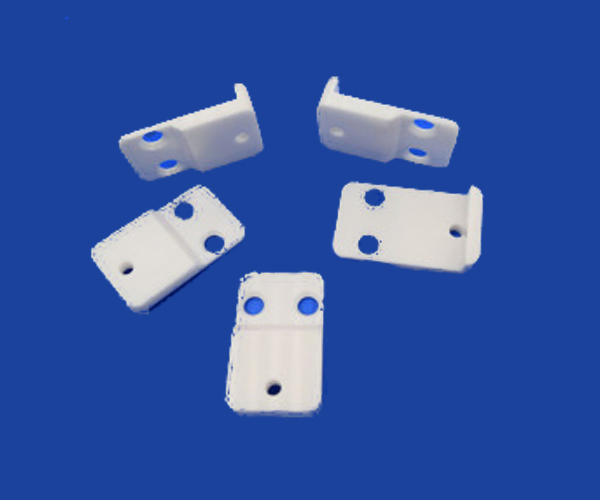

Ceramic base plates custom machinable ceramic plates

Materials：Alumina (Al2O3)/ Zirconia(ZrO2) /Si3N4 /SiC ...etc
Sizes：Custom according to the drawings
Delivery times：2 -25 days(depends on the quantity)
Precision：Ra 0.1um tolerance: 0.001mm... etc
Features：Heat resistance / Wear resistance / High purity / Refractory / High Corrosion / Good Insulation
Customized：Can be custom for special sizes and shapes
1. Factory price and shipment within 24 hours In stocks
2. MOQ:1qty
3. Payment Term: PayPal; T/T; L/C etc.
4. Shipment: by sea by air by courier by post etc.

Ceramic base plates custom machinable ceramic plates

Injection molding is a common way of forming zirconia ceramics. The injection molding principle of zirconia ceramics is basically the same as that of plastic injection molding, but only a large amount of zirconia ceramic powder is mixed in plastic. In order to improve the injection molding conditions of zirconia ceramics, it is necessary to choose the organic materials that match the raw materials, and the amount of addition must be selected.

The particle size of zirconia ceramics is generally 1 mu m, and the binder (or additive) is added, and it is fully mixed and stirred. In the process of mixing, the ceramic powder is wetted and wrapped by the binder, and all of them become homogeneous compounds to be injected. After the need for cooling, drying, and grinding, the particles suitable for the feeding of the funnel of the injection molding machine are obtained.

Materials parameter:

Property	Alumina	Property	Zirconia
Bulk density(g/cm3)	3.85-3.93	The density (g/cm3)	6.05
Hardness(HRA≥)	86	Bibulous rate(%)	0
Bending strength（Mpa≥）	300	Thermal expansion coefficient(10-6 /k)	10.5
Maximum service temperature（℃）	1500	Young's modulus of elasticity(Gpa)	210
Linear expansion coefficient（×10-6/℃）	7.15-7.67	Poisson's ratio(/)	0.3
Dielectric constant（εr(20℃,1MHz)）	9.21	Hardness (MPa)	1200
Dielectric loss（tanδ×10-4,1MHz）	2.5	Bending strength (MPa)	950
Volume resistivity（Ω·cm(100℃)）	9.2*1016	The bending strength (MPa)	210
The compressive strength（Mpa≥）	2500	Compressive strength (MPa)	2000
Flexural strength（Mpa≥）	200	Fracture toughness(Mpa.m1/2)	10
Modulus of elasticity（Gpa）	300	Thermal conductivity (W/m.k)	2
Poisson's ratio	0.2	Specific resistivity(Ω.mm2/m)	＞1015
Thermal conductivity Coefficient(W/m·K(20℃))	20	Maximum service temperature(℃)	1350
Dc breakdown strength	43.7	Acid and alkali corrosion resistance(/)	strength
Tensile seal strength(Mpa)	104.4

Dimensional accuracy	Up to 0.001mm
Smoothness	Highest possible mirror
Concentricity	Up to 0.003mm
Parallelism	Up to 0.002mm
The inner hole tolerance	The minimum 0.005mm
Straight flute	The narrowest 0.1x100mm
The thickness of the size	Minimum to 0.02mm
The screw thread	Minimum internal thread M2
Cylindricity	Up to 0.004mm
The linear tolerance	Up to 0.001mm
The smallest aperture	The minimum 0.07mm
Visual quality: 1. No cracks, no dark dots, no contamination and sharp edges; 2. Evenly distributed glaze with very smooth surface

Properties :

1. High Hardness wear resistance
2. High precision
3. Good mechanical strength
4. High temperature and chemical resistance
5. Electric insulation
6. Low thermal expansion
7. Smooth surface finish
8. Thermal Shock Resistance

Material :

1. Alumina ceramic
2. Zirconia ceramic
3. Silicone carbide
4. Silicone nitride
Lead-time: 20-30 days for mass production, 7-15 days for samples.
