Ceramic rod

Location：Home > Ceramic Product > Ceramic structure parts > Ceramic rod >

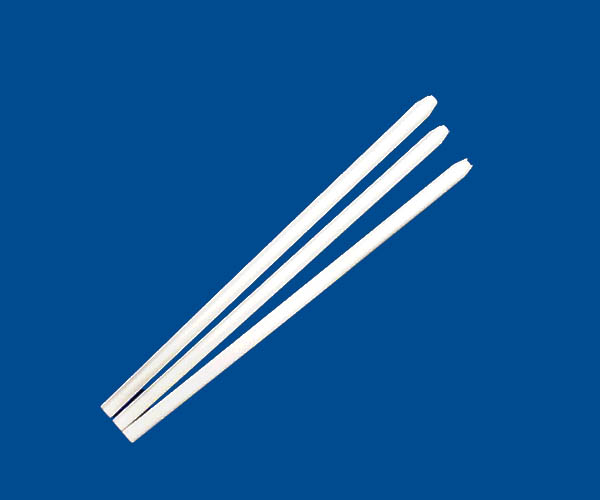

High heat rod ceramic rod wear insulator high temperature resistant alumina zirconia ceramic rods

Brand：OEM
Material：Alumina Zirconia Si3N4 SiC
Precision：±0.001mm
Features：Heat resistance / Wear resistance / High purity / Refractory / High Corrosion / Good Insulation
Color：Can be customized
Customized：Can be customized according to customer requirements

Send Message

High Heat Rod Ceramic Rod Wear Insulator High Temperature Resistant Alumina Zirconia Ceramic Rods

The properties of alumina/ zirconia ceramics

· Flexural strength	· Chemical resistance	· Electrical insulation	· Corrosion resistance	· Dielectric strength
· Wear resistance	· Temperature resistance	· Thermal conductivity	· High voltage	· Hardness...

Ceramic rod has the characteristics of wear insulator high temperature resistant with the excellent ceramics.

High heat and temperature resistant
The ceramic have a excellent high heat temperature resistant ability. Ceramic can be used under 2200 ℃ high temperature environment.Coefficient of thermal expansion up to 13* 10^∧⁶from 20°C -1000°C. up to 2800°C Melting point.

Wear and hardness resistant
The ceramic is better wear and abrasion resistant property than metal. The ceramic hardness (mohs)up to 9, HRA 80 - 90. Ceramic hardness is not second only to diamond, but far beyond the wear resistance of steel and stainless steel.

High voltage and Insulator
High frequency insulating ceramics have small dielectric constant, low dielectric loss, high mechanical strength, high dielectric strength, insulation resistance and thermal conductivity.Dielectric constant up to 10; Electrical resistivity up to 10^∧14 Ohm.cm at 20°C ;Dielectric strength up to 20 kV/mm...

Part of us oem ceramic rod sizes:

Outer Diameter (Inch)	Outer Diameter (mm)	Maximum Length
0.011	0.28	12in / 305mm
0.020	0.51	12in / 305mm
0.022	0.56	12in / 305mm
0.024	0.61	12in / 305mm
0.029	0.74	12in / 305mm

Dimension and tolerance
·Diameter as small as 0.2mm， depends on length
·Length as long as 400mm, as short as 0.5mm
·Diameter tolerance we could make as fine as 0.001mm
The customized type of rod

Additional Information
·Discounts on large quantities of Ceramic Rod
·In stock items will typically ship in a few working days.
·Unit price and estimated ship dates will be calculated when the length and quantity are specified.
·The length and special sizes can be customized

Cylindrical, Square, Screw Threadand, Porous...

Shaft,Plunger Rod,Piston Rod,Cylinder Rod,Insulating Rod,Heat Conducting Bar,sharpening rod,honing rod...

Ceramic materials
· 95%--99.99% Alumina (Al2O3) · Silicon Carbide · Silicon Nitride · TTZ: Magnesia partially stabilized Zirconia (ZrO2)
· YTZP: Yttria partially stabilized Zirconia (ZrO2) · ZDY: Yttria fully stabilized Zirconia (ZrO2)...

	Al ₂O ₃	ZrO2/Y2O3	ZrO2/MgO	MgO	SiC	Si3N4 Reaction sintered	Si3N4 Hot pressed	ALN
Physical properties
Density (g/cm3)	3,9	5,9	5,75	3,58	3,2	3,27	3,29	3,26
Molecular weight (g/mole)	102	-	-	40,4	40,1	140	140	41
Maximum service temperature air (°C)	1700- 1800	1500	1000	2200	1500	1200- 1500	1100- 1600	1000- 1800
Mechanical properties
Hardness (Mohs)	9	-	-	5,5	9	-	-	7
Modulus of elasticity (GPa)	300-400	200	200	250-300	420	170-220	280-310	318
Poisson's ratio	0,25	-	-	0,18	0,14	0,25-0,26	0,27	0,25
Fracture toughness (MPa.m1/2)	2-3	7-13	6-10	-	2,5-3,5	3,5-5	6,1	4,5
Electrical properties
Dielectric constant	9-10	-	-	9-10	-	10	10	9,2
Electrical resistivity at 20°C (Ohm.cm)	>10 ₁₄	10 ₁₃-10 ₁₄	>10 ₁₀	-	10 ₂-10 ₆	>10 ₇	10 ₁₂- 10 ₁₅	>10 ₁₄
Dielectric strength (kV/mm)	10-20	9	2-10	-	-	-	-	15
Thermal properties
Specific heat (J/K/kg)	900	400-500	420	870-880	750	690	680-800	800
Thermal conductivity (W/m/K) at 20°C	26-35	2,2-3,2	1,5-2,5	40-50	63-155	9-30	15-43	180
Coefficient of thermal expansion ( 10-6) from 20 to 1000°C	8-9	10-11	5-16	10-13	4-5	3	3,3	4,4-5,3
Melting point (°C)	2050	2590	-	2800	2500	1900	1900	2200

Precision of manufacture
Dimensional accuracy	Up to 0.001mm
Smoothness	Highest possible mirror
Concentricity	Up to 0.003mm
Parallelism	Up to 0.002mm
The inner hole tolerance	The minimum 0.005mm
Straight flute	The narrowest 0.1x100mm
The thickness of the size	Minimum to 0.02mm
The screw thread	Minimum internal thread M2
Cylindricity	Up to 0.004mm
The linear tolerance	Up to 0.001mm
The smallest aperture	The minimum 0.07mm
Precision process	CNC maching,grinding,lapping
Surface finish	Glazed,polishing or metallized
Visual quality: 1. No cracks, no dark dots, no contamination and sharp edges; 2. Evenly distributed glaze with very smooth surface

Customization & Machining Service
As a professional manufacturer of industrial ceramic components.We can custom the sepcial specifications of ceramic rod, tubes or other ceramic parts.High quality,Factory price, on-time delivery, High composition of ceramics

FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-10 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.

Feedback
1. For any query or doubt, please contact us firstly, we will update with you soon;
2. For any other satisfaction, please also feedback to us, which could improve our service better and better.

For more information about ceramics parts,please contact our engineers in time >>>
