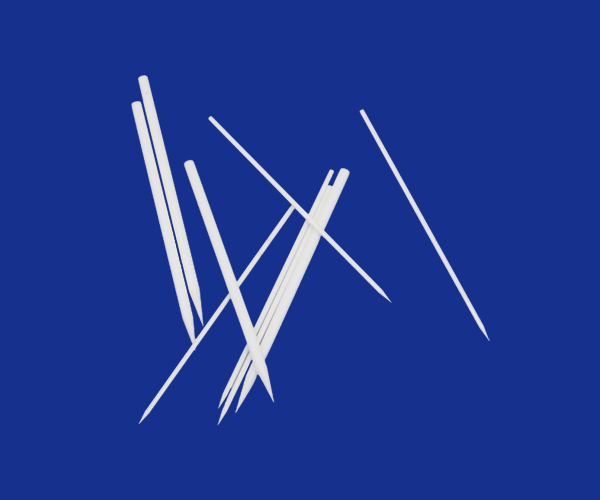

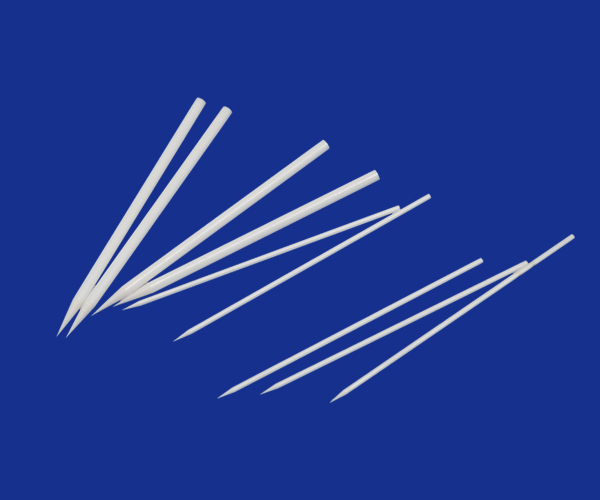

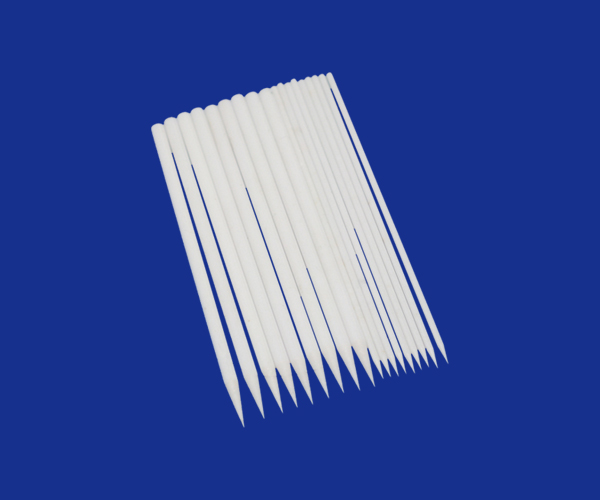

Custom White Zro2 Zirconia Ceramic Pin Gauge Pins Dowel

• Brand：Mingrui
• Material：Alumina Zirconia Si3N4 SiC
• Precision：Ra 0.1um tolerance: 0.001mm
• Features：Heat resistance / Wear resistance / High purity / Refractory / High Corrosion / Good Insulation
• Color：Black / White / Blue / Yellow / Ivory
• Customized：YES OEM

Contact Us

Send Message

(1). Simple shape

(2). Stability value
(3). Good abrasion resistance
(4). Easy to use
(5). Accurate size between two parallel plane, the cross section is rectangular or square.
(6). Two parallel plane is called the measuring surface. Measuring surface is flat, bright and clean, so it is of good research integration.
It can be used separate, also can be combined different sizes for different testing.

Zirconia ceramic Rods  is the most widely applied and cost effective technical ceramic material. It offers a combination of superior mechanical strength and electrical properties, wear resistance and corrosion resistance. The maximum working temperature is up to 1700 °C with relatively high thermal conductivity. It is also an electrically insulating material with a high electrical resistivity. The good corrosion resistance makes it insoluble in water and slightly soluble in strong acid and alkaline solution.

We have both PSZ (partially stabilized zirocnia) and FSZ (fully stabilized zirconia)with high density and good surface roughness.

We can provide Y2O3-ZrO2,CaO-ZrO2,MgO-ZrO2 and also ZTA ceramics.
