Ceramic tube

High temperature ceramic tube max 1800 degree

  • Materials：Alumina (Al2O3)/ Zirconia(ZrO2) /Si3N4 /SiC
  • Sizes：Custom according to the drawings
  • Delivery times：2 -25 days(depends on the quantity)
  • Precision：Ra 0.1um tolerance: 0.001mm... etc
  • Features：Max up 1800 degree temperature resisting

Hotline

+86181-2297-4730

E-mail

admin@cerampart.com

High Temperature Ceramic Tube 1800 Degree Heat Resistance Alumina Zirconia Ceramic Tube Pipes



High heat and temperature resistant of ceramic tube
The high temperature ceramic tube have a excellent high heat temperature resistant ability. Ceramic tube can be used under 1800 ℃ high temperature environment.Coefficient of thermal expansion up to 13* 10∧6 from 20°C- 1000°C. up to 2800°C Melting point.

High temperature ceramic pipe tubes made by advance technical ceramics,like:95%--99.99% Alumina(Al2O3), Zirconia(ZrO2) ,Silicon Carbide,Silicon Nitride ...etc which have a excellent Physical properties,Mechanical properties,Electrical properties,Thermal properties. Wear hardness strength resistance.

we can produce ceramic tubes of different sizes, not limited to the following table.
The sizes of some high temperature ceramic tubes are as follows :
Outer Diameter
(Inch)		 Outer Diameter
(mm)		 Length
(mm)(in)
0.212 5.38 84 3.31
0.25 6.35 340 13.39
0.264 6.71 210 8.27
0.327  8.3 110 4.33
0.339  8.6 95 3.74
0.354  9 84 3.31
0.433  11 340 13.39
0.551  14 210 8.27
0.64 16.26 180 7.09
0.75 19.05 360 14.17
0.775 19.69 440 17.32
1.1 27.94 520 20.472
1.35 34.29 340 13.386
0.157  4 340 13.386
0.472  12 150 5.906
0.492  12.5 180 7.087
0.433  11 210 8.268
0.520  13.2 240 9.449
0.551  14 270 10.630
0.575  14.6 300 11.811
0.638  16.2 330 12.992
0.594  15.1 360 14.173
0.827  21 390 15.354
1.102  28 420 16.535
1.181  30 450 17.717
1.378  35 480 18.898

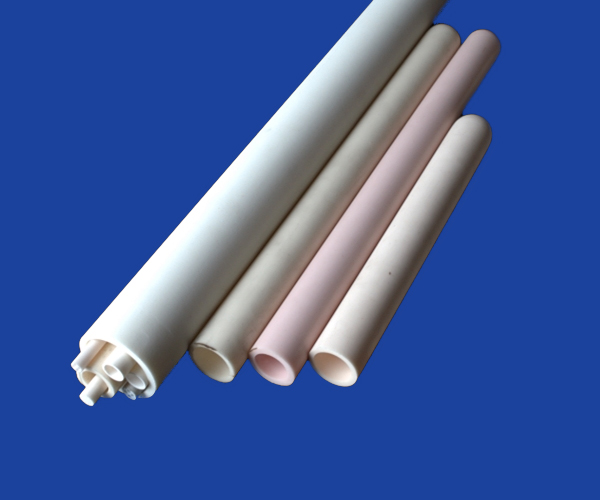

high temperature ceramic tube
Materials options:
· 95%--99.99% Alumina (Al2O3)
· Silicon Carbide   · Silicon Nitride
· TTZ: Magnesia partially stabilized Zirconia (ZrO2)
· YTZP: Yttria partially stabilized Zirconia (ZrO2)
· ZDY: Yttria fully stabilized Zirconia (ZrO2)

Heat resistance of different ceramic materials:
Al 2O 3 Alumina ceramics up to 1800℃（3272℉）high temperature resistance
ZrO2 Zirconia ceramics up to 1500℃（2732℉）high temperature resistance
SiC Silicon carbide ceramics up to 1500℃（2732℉）high temperature resistance
Si3N4 Silicon Nitride ceramics up to 1600℃（2912℉）high temperature resistance

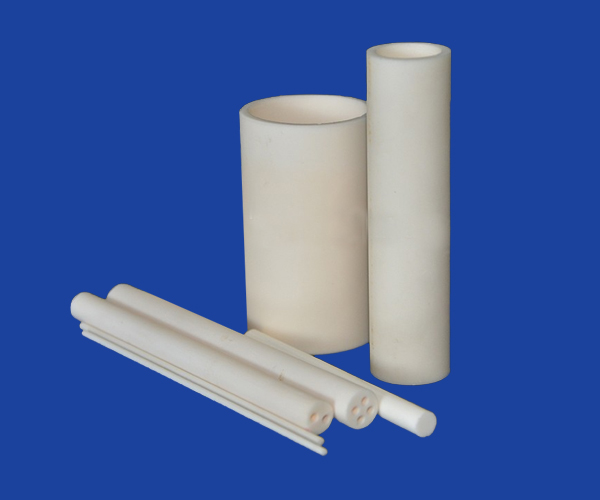

high temperature ceramic tube

As for the price, please provide the detailed requirements of the high temperature ceramic tube to us, such as: size, region, quantity, whether to customize and so on.If you provide detailed information, we will check all the costs and the delivery time is faster.

Quick Free Quote . Our official E mail: admin@cerampart.com (Mr admin)

The properties

1. Refractory, High Temperature Resistance, Maximum Used Temperature: 1800 ºC (3272ºF)...
2. Hardness Strength, Wear Resistance Up To Mohz 9.0 Levels...
3. High Voltage, Good Insulation Performance ,Electrical Resistivity Up To 10∧14 Ohm.Cm...
4. High Polished Surface Up To Rz0.8(Ra0.1) ...
5. Anti-High Corrosion Resistance, Such As Acid  Alkali Resistance...
6. Long Service Life...Other excellent property

Some fields of high temperature ceramic tube application

  • Furnace construction (heat conductor supports, pipes, burner nozzles)
  • Hot air generators (multi-hole pipes, honeycombs)
  • Heating element production (helical coil cartridges, cast-iron radiators)
  • Foundry technology such as cast steel (immersion-type sensors, moulded parts for foundries, casting filters)
  • Welding technology (Welding ceramics in the form of welding tubes, welding bars, welding chips)
  • and many others

The general specifications service
1. Factory price with a discounts
2. Fast shipment within 24 hours
3. In stocks for hot sales sizes
4. MOQ:1qty
5. Online service      high temperature ceramic tube		 The Custom service
1. Can be custom for special sizes by drawing
2. Can offer a samples within 2 days
3. The delivery time within 20 days after confirmed the order
4. Factory price and Senior ceramic engineer service
5. Online service      high temperature ceramic tube

Customization & Machining Service:
As a high temperature ceramic tubes manufacturer,us offer a wide of the high temperature ceramic tube,and customized&machinables. Get a Quote On Your Customized Now!!  or up a files by EMAIL.

Our Custom Capabilities:
1.High Purity Martoxid Powder
2.OEM Support, More Than 10 Technicians With 5-Year R&D Experience
3.35000 ㎡workshop, annual output could reach hundred million pieces.
4.All crafts are inspected strictly based on drawings,checked each month.
5.Best Service And Quick Delivery Via Fedex,DHL,UPS,TNT Etc.

Technical reference of manufacture high temperature ceramic tube
Dimensional accuracy Up to 0.001mm
Concentricity Up to 0.003mm
Parallelism Up to 0.002mm
The inner hole tolerance The minimum  0.005mm
Straight flute The narrowest 0.1x100mm
The thickness of the size Minimum to 0.02mm
The screw thread Minimum internal thread M2
Cylindricity Up to 0.004mm
The linear tolerance Up to 0.001mm
The smallest aperture The minimum 0.07mm
Precision process CNC maching,grinding,lapping
Surface finish Glazed,polishing or metallized


FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-20 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.

Feedback
1. For any query or doubt, please contact us firstly, we will update with you soon;
2. For any other satisfaction, please also feedback to us, which could improve our service better and better.

For more information about high temperature ceramic tubes,please contact our engineers in time  >>> high temperature ceramic tube      high temperature ceramic tube
