Ceramic insert tube custom multi alumina zirconia ceramic pipes

Ceramic insert tube can be used for many parts in defferant industries. due to the ceramic insert tube have a excellent ceramic ability than metal inserts.

Ceramic insert tube was produced by our factory include alumina ceramic insert tube, zirconia ceramic tubes  and other ceramic insert with other raws.

The feature of the ceramic insert tubes:

1. Refractory, High Temperature Resistance, Maximum Used Temperature: 1800 ºC (3272ºF)...
2. Hardness Strength, Wear Resistance Up To Mohz 9.0 ; HRA 80-90...
3. High Voltage, Good Insulation Performance ,Electrical Resistivity Up To 10∧14 Ohm.Cm...
4. High Polished Surface Up To Rz0.8(Ra0.1) ...
5. Superior Mechanical Strength, MAX 10 MPa.m1/2 Fracture toughness,
6. Pressure Resistance, Max 2300MPa compressive strength...
7. Anti-High Corrosion Resistance, Such As Acid  Alkali Resistance...
8. Long Service Life...
9. Other excellent property

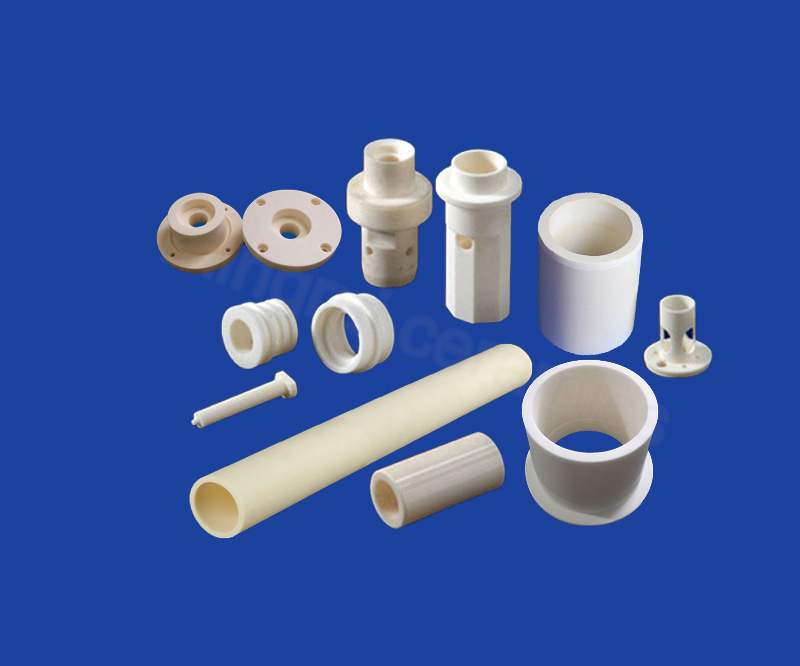

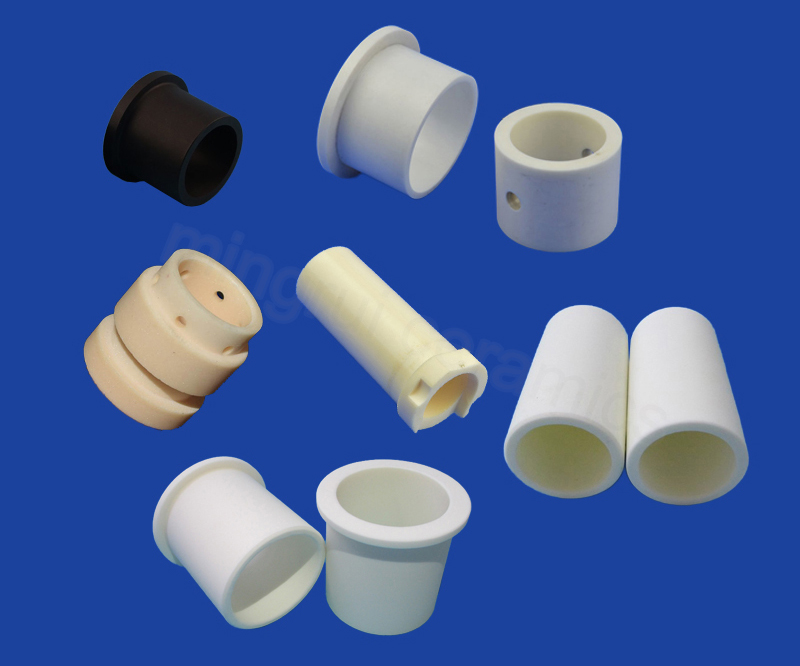

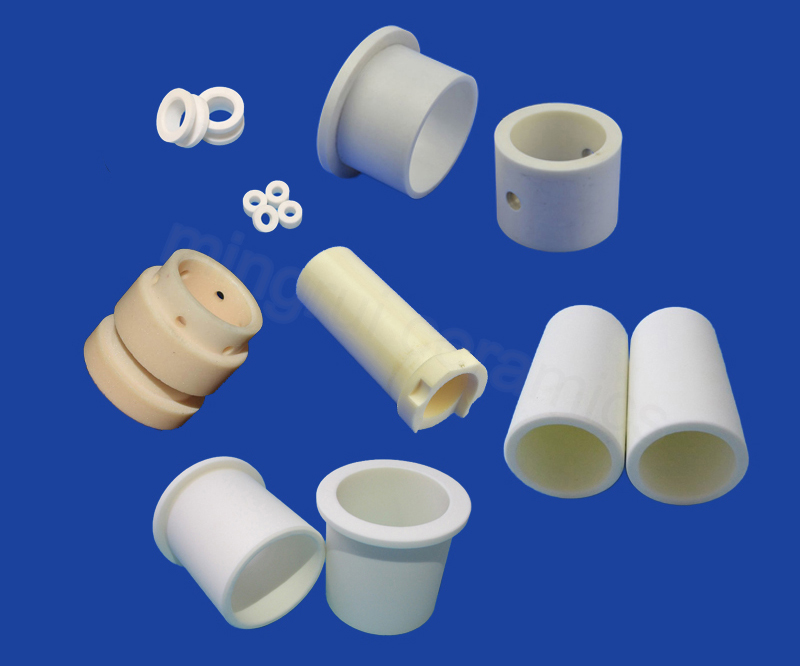

The shapes of our ceramic insert tubes:


We manufacture ceramic insert tube shapes in both popular and custom types.

Customization type:

Tubular: Short, long

Flanged: one flange, two flanges,

Thread: all threads, one thread, internal thread

The pipe punching

semicircle

The specific shape and parameters of the ceramic insert  tube can be manufactured according to the requirements of our customers.

User industries of ceramics insert tube
automotive, aviation, space travel
electrical and thermal insulation
electronics and sensors
energy technology, power generation
environmental technology
fluid technology
friction-reduction, wear- and corrosion -protection
high temperature applications
laboratory technology
laser technology
mechanical and chemical process engineering
metal industry
optics
semiconductor processing equipment
surface treatment
vacuum technology

Ceramic materials of ceramics insert tube
· 95%--99.99% Alumina (Al2O3)   · Silicon Carbide   · Silicon Nitride  · TTZ: Magnesia partially stabilized Zirconia (ZrO2)
· YTZP: Yttria partially stabilized Zirconia (ZrO2)   · ZDY: Yttria fully stabilized Zirconia (ZrO2)...


Customization & Machining Service
As a professional manufacturer of ceramics insert tube components.We can custom the sepcial specifications of ceramic tubes, rod or other ceramic parts.High quality,Factory price, on-time delivery, High composition of ceramics

FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-10 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.

Feedback
1. For any query or doubt, please contact us firstly, we will update with you soon;
2. For any other satisfaction, please also feedback to us, which could improve our service better and better.


For more information about ceramics insert tube,please contact our engineers in time  >>>
