Ceramic rod

Customized ceramic shaft rod good heat conductivity

  • Materials：Alumina (Al2O3)/ Zirconia(ZrO2) /Si3N4 /SiC
  • Sizes：Custom according to the drawings
  • Delivery times：2 -25 days(depends on the quantity)
  • Precision：Ra 0.1um tolerance: 0.001mm... etc
  • Features：Heat resistance / Wear resistance / High purity / Refractory / High Corrosion / Good Insulation...

Hotline

+86181-2297-4730

E-mail

admin@cerampart.com

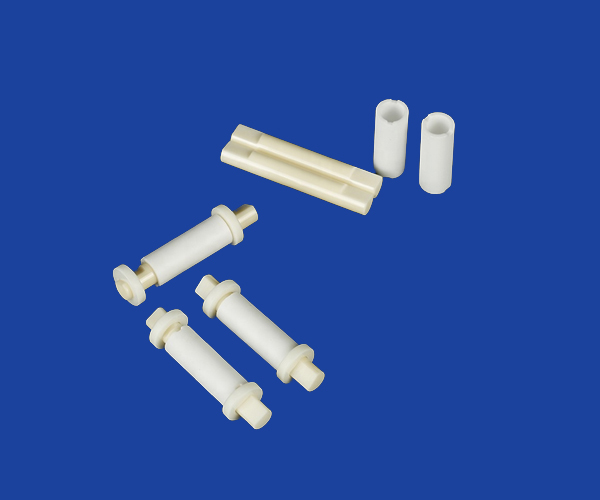

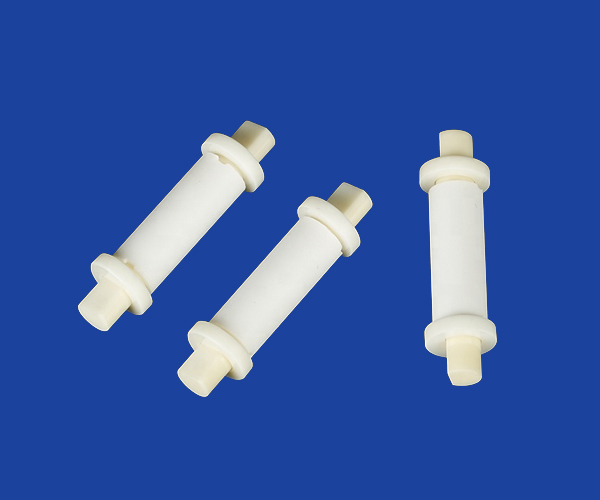

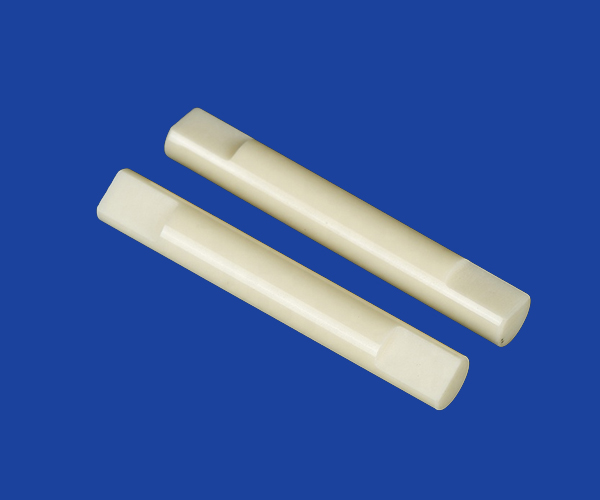

Customized ceramic shaft rod good heat conductivity



High precision ceramic shaft rods we produce have good heat conductivity , high thermal conductivity. we offer custom ceramic shaft rod with multi sizes and shape due to the ceramic shaft have a wide range use for industry which have own sizes demands and diameters.



Advantages of ceramic shaft rod:

- High thermal conductivity
- Low coefficient of expansion

- High strength
- High temperature resistance
- Chemical resistance
- High resistivity
- Small dielectric constant
- No toxicity


Note: 1.Surface roughness can be reached 0.1μm after polished.

           2.Size tolerance can be controlled in +-0.10mm with laser machined.

           3.Special specifications can be supplied upon requests.


Ceramic materials
· 95%--99.99% Alumina (Al2O3)   · Silicon Carbide   · Silicon Nitride
· TTZ: Magnesia partially stabilized Zirconia (ZrO2)
· YTZP: Yttria partially stabilized Zirconia (ZrO2)
· ZDY: Yttria fully stabilized Zirconia (ZrO2)
....
Properties Units AL2O3 ZrO2 SiC Si3N4
Density g/cm3 3.65-3.93 5.95-6.0 3.12 3.23
Water absorption 0 0 0 0 0
Coefficientof thermal expansion 10-16/k 7.9-8.5 10.5 3 3.2
Modulus of elasticity young`s mod GPa 280-340 210 440 300
Poission`s ratio / 0.21-0.22 0.3 0.17 0.26
HV hardness hv MPa 1650 1300-1365 2800 1500
Flexural strength MPa 310 950 390 720
Flexural strength(700℃) MPa 230 210 380 450
Compressive strength MPa 2200 2000 1800 2300
Fracture toughness MPa*m1/2 4.2 10 3.9 6.2
Heat conductivity W/m*k 26-30 2-2.2 120 25
Electrical resistivity Ω*mm2/m >1016 >1015 >103 >1013
Max use temperature ℃ 1750 1050 1550 1050
Resistance to acid alkaline / high high high high
Dielectric constant / 9.6 29 9.66-10.03 /
Dielectric strength KV/mm 8.7 9 / /
Thermal shock resistance △T（℃） 180-220 280-350 230-260 /
Tensile strength MPa 248 250 / /

Precision of manufacture
Dimensional accuracy Up to 0.001mm
Smoothness Highest possible mirror
Concentricity Up to 0.003mm
Parallelism Up to 0.002mm
The inner hole tolerance The minimum  0.005mm
Straight flute The narrowest 0.1x100mm
The thickness of the size Minimum to 0.02mm
The screw thread Minimum internal thread M2
Cylindricity Up to 0.004mm
The linear tolerance Up to 0.001mm
The smallest aperture The minimum 0.07mm
Precision process CNC maching,grinding,lapping
Surface finish Glazed,polishing or metallized
Visual quality:
1. No cracks,  no dark dots, no contamination and sharp edges;
2. Evenly distributed glaze with very smooth surface


Customization & Machining Service
As a professional manufacturer of industrial ceramic shaft rod components.We can custom the sepcial specifications of ceramic shaft rod or other ceramic parts.High quality,Factory price, on-time delivery, High composition of ceramics

FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-10 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.

Feedback
1. For any query or doubt, please contact us firstly, we will update with you soon;
2. For any other satisfaction, please also feedback to us, which could improve our service better and better.


For more information about ceramics ceramic shaft rod,please contact our engineers in time  >>>
