Ceramic terminal block Higher Dielectric thermal cable wire connector High Temperature ceramic blocks
- Materials：Alumina (Al2O3)/ Zirconia(ZrO2) /Si3N4 /SiC ...etc
- Sizes：Max Length/width:450mmThickness:0.2mm...
- Delivery times：2 -25 days(depends on the quantity)
- Precision：Ra 0.1um tolerance: 0.001mm... etc
- Features：Heat resistance / Wear resistance / High purity / Refractory / High Corrosion / Good Insulation...

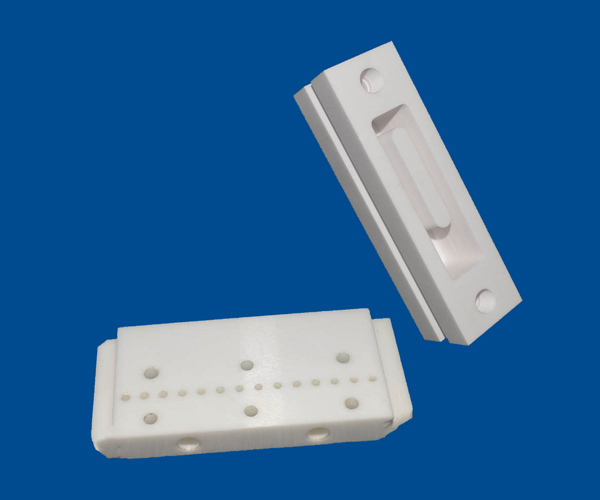

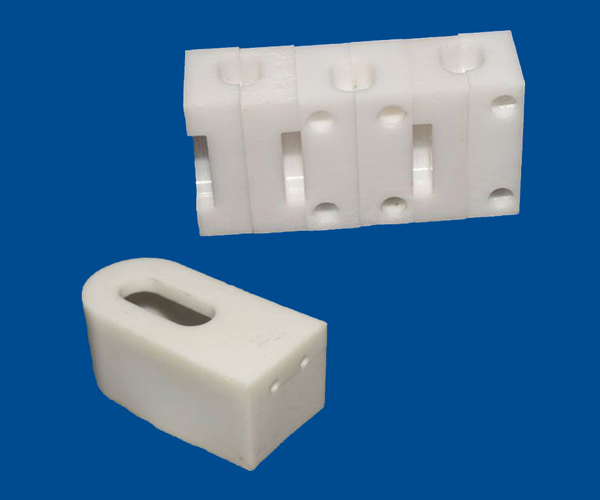

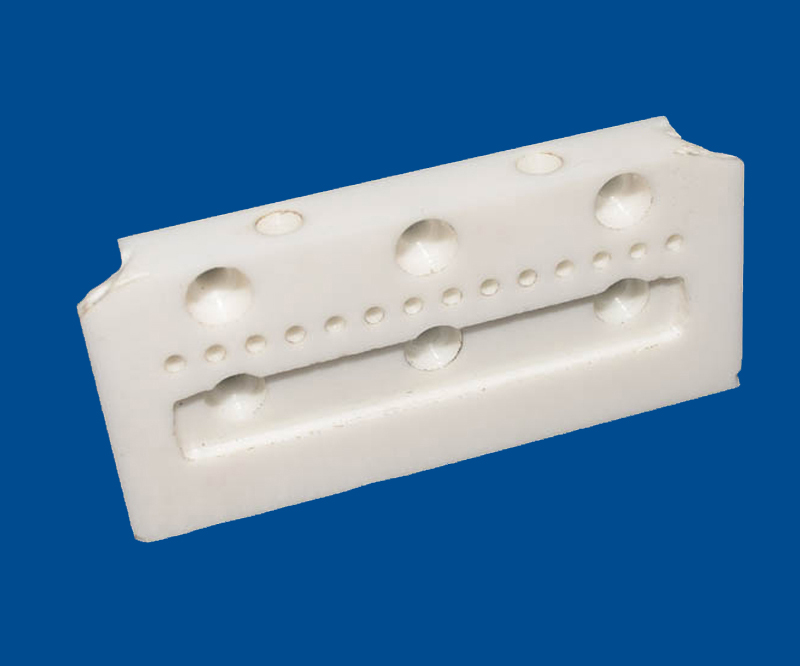

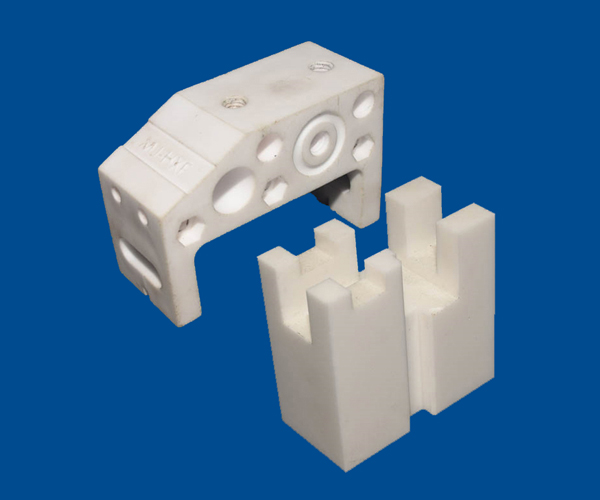

Ceramic Terminal Block Higher Dielectric Thermal Cable Wire Connector High Temperature Ceramic Blocks
Ceramic Terminal Block have higher density, better bending/compression strength, greater elasticity, higher dielectric strength and being non-flammable and temperature resistant with dimensional stability up
Company Advantage
OEM factory, High quality, Precision processing, Pipelining assembly, 100% QC process, Plentiful stocks, Fast and Safe shipping.
The feature of ceramic terminal block
· High temperature ceramic terminal block
· ceramic material
· Integral fixing hole
· Voltage Rating: 450V
· Temperature Rating: 1350°C
The size of ceramic terminal block from 21 mm x 18 mm x 15 mm (L x W x H) 53 mm x 30 mm x 23 mm.
Ceramic Terminal Block Connector :
Component : Copper Metal + Ceramic Body
Ration of voltage and current : 110V-600V; 3A-75A
Us can support to constomized the ceramic terminal block with specials requipments.
The properties of ceramics
| · Flexural strength | · Chemical resistance | · Electrical insulation | · Corrosion resistance | · Dielectric strength |
| · Wear resistance | · Temperature resistance | · Thermal conductivity | · High voltage | · Hardness... |
· 95%--99.99% Alumina (Al2O3) · Silicon Carbide · Silicon Nitride
· TTZ: Magnesia partially stabilized Zirconia (ZrO2)
· YTZP: Yttria partially stabilized Zirconia (ZrO2)
· ZDY: Yttria fully stabilized Zirconia (ZrO2)
....
| Precision of manufacture | |
| Dimensional accuracy | Up to 0.001mm |
| Smoothness | Highest possible mirror |
| Concentricity | Up to 0.003mm |
| Parallelism | Up to 0.002mm |
| The inner hole tolerance | The minimum 0.005mm |
| Straight flute | The narrowest 0.1x100mm |
| The thickness of the size | Minimum to 0.02mm |
| The screw thread | Minimum internal thread M2 |
| Cylindricity | Up to 0.004mm |
| The linear tolerance | Up to 0.001mm |
| The smallest aperture | The minimum 0.07mm |
| Precision process | CNC maching,grinding,lapping |
| Surface finish | Glazed,polishing or metallized |
|
Visual quality: 1. No cracks, no dark dots, no contamination and sharp edges; 2. Evenly distributed glaze with very smooth surface |
|
Customization & Machining Service
As a professional manufacturer of industrial ceramic components.We can custom the sepcial specifications of ceramic connectors or other ceramic parts.High quality,Factory price, on-time delivery, High composition of ceramics
FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-10 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.
Feedback
1. For any query or doubt, please contact us firstly, we will update with you soon;
2. For any other satisfaction, please also feedback to us, which could improve our service better and better.
| For more information about ceramics parts,please contact our engineers in time >>> |
  |
