Ceramic pin

Precision Ceramic Plug Gauge Zirconia Stop Gauge Precision Needle Gauge

  • Materials：Alumina (Al2O3)/ Zirconia(ZrO2) /Si3N4 /SiC ...etc
  • Sizes：Mini-OD: 0.02mm;Max-length: 500mm
  • Delivery times：2 -25 days(depends on the quantity)
  • Precision：Ra 0.1um tolerance: 0.001mm... etc
  • Features：Heat resistance / Wear resistance / High purity / Refractory / High Corrosion / Good Insulation...

Hotline

+86181-2297-4730

E-mail

admin@cerampart.com

Precision Ceramic Plug Gauge


Ceramic Plug Gauge accuracy: 0.001mm Spec.: 0.20mm~25.00mm.

Scope of application: Mainly used to measure the size of the hole, the distance of the hole, hole depth, can do the use of the valve is a standardized testing necessary tools, and widely scope in electronic panels, circuit boards, molds, precision machinery manufacturing and other sophisticated technical fields.

Metric Plug Gauge: Specification range 0.10mm~40.00mm; interval: 0.005mm 0.01mm 0.02mm 0.025mm 0.05mm 0.10mm 0.50mm 1.00mm, etc.; accuracy ±0.001mm.

Second, the British Plug gauge: Specification range 0.011in~1.000in; interval 0.001in; accuracy ±0.001mm. Third, can be customized a variety of non-standard plug gauge.

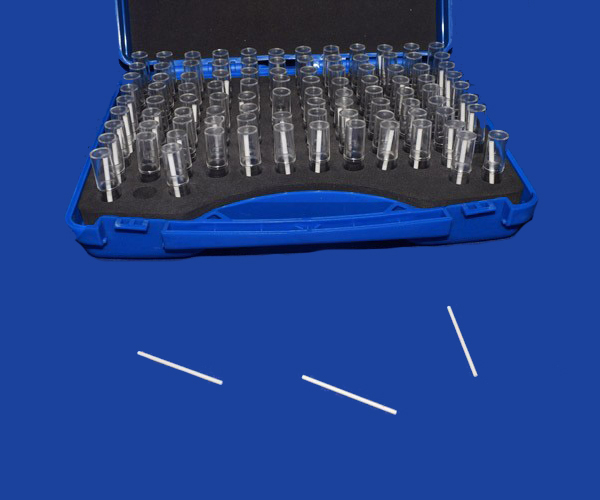

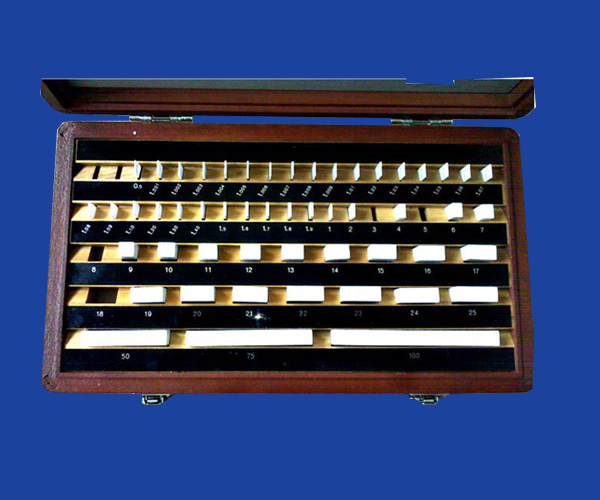

Four, packaging methods: bulk, plastic box sets, wooden box sets, single intubation, set intubation, etc. can be freely combined according to customer requirements.

Five, technical parameters: roughness ≤0.2um; heat treatment hrc86-91; material: zirconia ceramic material. Six, plug gauge use and scope: mainly used to measure the size of the hole, the distance of the hole, hole depth, can do the use of the valve is a standardized testing necessary tools, and widely scope in electronic panels, circuit boards, molds, precision machinery manufacturing and other sophisticated technical fields.

Materials:
Property Alumina  Property Zirconia
Bulk density(g/cm3) 3.85-3.93 The density (g/cm3) 6.05
Hardness(HRA≥) 86 Bibulous rate(%) 0
Bending strength（Mpa≥） 300 Thermal expansion coefficient(10-6 /k) 10.5
Maximum service temperature（℃） 1500 Young's modulus of elasticity(Gpa) 210
Linear expansion coefficient（×10-6/℃） 7.15-7.67 Poisson's ratio(/) 0.3
Dielectric constant（εr(20℃,1MHz)） 9.21 Hardness (MPa) 1200
Dielectric loss（tanδ×10-4,1MHz） 2.5 Bending strength (MPa) 950
Volume resistivity（Ω·cm(100℃)） 9.2*1016 The bending strength (MPa) 210
The compressive strength（Mpa≥） 2500 Compressive strength (MPa) 2000
Flexural strength（Mpa≥） 200 Fracture toughness(Mpa.m1/2) 10
Modulus of elasticity（Gpa） 300 Thermal conductivity (W/m.k) 2
Poisson's ratio 0.2 Specific resistivity(Ω.mm2/m) ＞1015
Thermal conductivity Coefficient(W/m·K(20℃)) 20 Maximum service temperature(℃) 1350
Dc breakdown strength 43.7 Acid and alkali corrosion resistance(/) strength
Tensile seal strength(Mpa) 104.4


Dimensional accuracy Up to 0.001mm
Smoothness Highest possible mirror
Concentricity Up to 0.003mm
Parallelism Up to 0.002mm
The inner hole tolerance The minimum  0.005mm
Straight flute The narrowest 0.1x100mm
The thickness of the size Minimum to 0.02mm
The screw thread Minimum internal thread M2
Cylindricity Up to 0.004mm
The linear tolerance Up to 0.001mm
The smallest aperture The minimum 0.07mm
Visual quality:
1. No cracks,  no dark dots, no contamination and sharp edges;
2. Evenly distributed glaze with very smooth surface

Properties :

1. High Hardness wear resistance
2. High precision
3. Good mechanical strength
4. High temperature and chemical resistance
5. Electric insulation
6. Low thermal expansion
7. Smooth surface finish
8. Thermal Shock Resistance

Material :
1. Alumina ceramic
2. Zirconia ceramic
3. Silicone carbide
4. Silicone nitride
Lead-time: 20-30 days for mass production, 7-15 days for samples.

Us can be based on customer drawings and requirements to provide non-standard ceramic accessories and provide related solutions.
