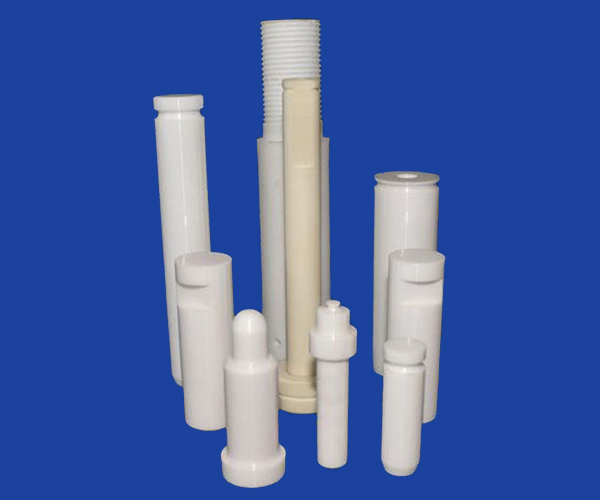

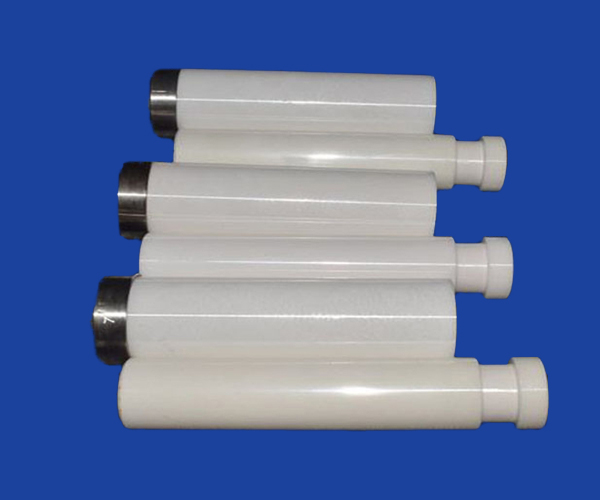

Ceramic Pump Plunger Wear And High Temperature Resistant Soomthness Alumina Zirconia Pump Plungers
- Materials：Alumina (Al2O3)/ Zirconia(ZrO2) /Si3N4 /SiC ...etc
- Sizes：Diameter:3-60mm;length:20-650mm
- Delivery times：2 -25 days(depends on the quantity)
- Precision：Ra 0.1um tolerance: 0.001mm... etc
- Features：Heat resistance / Wear resistance / High purity / Refractory / High Corrosion / Good Insulation...
Ceramic Pump Plunger Wear And High Temperature Resistant Soomthness Alumina Zirconia Pump Plungers
Custom ceramic spare partsHigh precision Advance Technical Ceramic Parts OEM
The plunger of our ceramic pump is manufactured and customized with different specifications suitable for different pumps. The ceramic pump plunger adopts advanced ceramic materials and advanced molding technology. The surface treatment of the ceramic pump plunger is very smooth, hard, high temperature resistant, abrasion resistant, chemical corrosion resistant and other characteristics.
The feature of ceramic plunger:
1. Refractory , High Temperature Resistance, Maximum Used Temperature: 1800 ℃ （3272℉）...
2. Hardness Strength, Wear Resistance Up To Mohs' scale 8.0 HRA 80-90
3. High Voltage, Good Insulation Performance ,Electrical Resistivity Up To 10∧14 Ohm.Cm...
4. High Polished Surface Up To Rz0.8(Ra0.1) ...
5. Superior Mechanical Strength...
6. Pressure Resistance...
7. Anti-High Corrosion Resistance, Such As Acid Alkali Resistance...
8. Long Service Lift...
9. Other Excellent Property
By changing material to alumina(Al2O3), zirconia(ZrO2), silicon carbide(SiC), sapphire, etc., and through optimized machining method for ceramic pump plunger plungers, we are making the products meeting customers' needs in terms of circularity, straightness, surface roughness, etc., and enhancing the work efficiency, product lifetime, and precision.

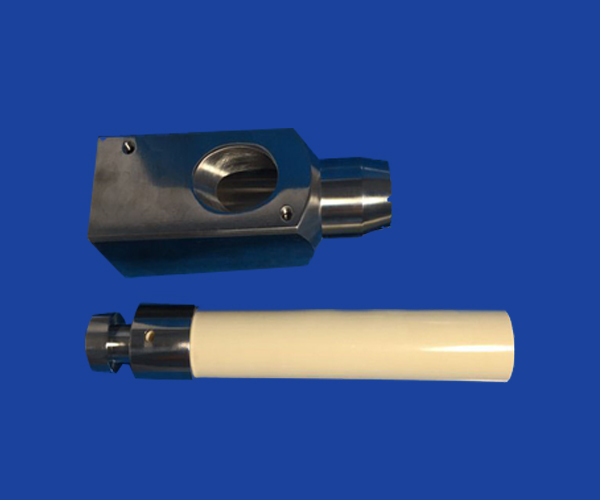

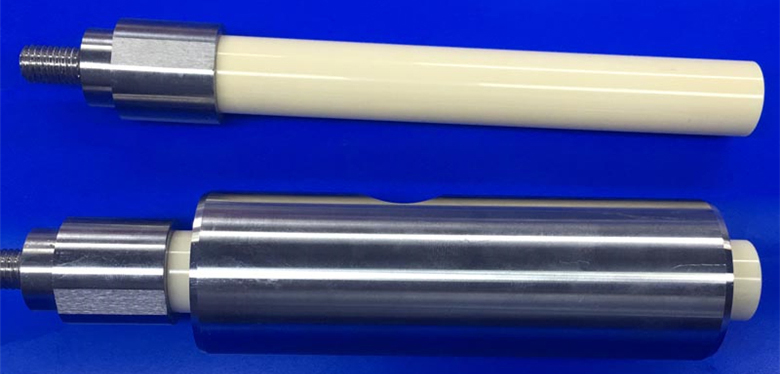

Related accessories of ceramic pump plunger
Plunger rod, sealing parts, pump liner, pump body, washer, shaft...

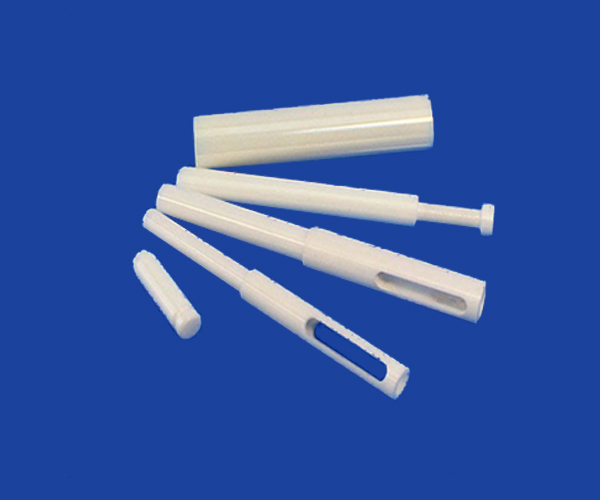

Type of ceramic plunger shaft piston rod us manufacturer (including but not only belows)
| Shaft plunger | Pump plunger |
| Wear Plunger rod | Filling Pump plunger |
| Pins rod | Water Pump plunger |
| Pump piston rod | Plunger rod |
| Pump shaft rod | Sleeve and bushing plunger |
| Machinable plunger | Piston plunger |
|
Tip: For different industries, equipment,and environment, ceramic plunger have different function, We can machining ceramic plunger shaft piston rod , such as surface polishing, internal and external pipe wall threads, metal parts bonded, different shapes etc by custom requirement. |
|

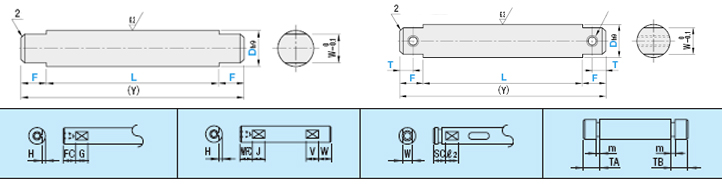

Parts of us oem pump plunger(include but not limited belows)
| D (mm) | L (mm) | F (mm) | T (mm) |
| 6 | 20 ～ 286 | 7 ～ 15 | 3 ～ 8 |
| 8 | 20 ～ 384 | 8 ～ 20 | 4 ～ 10 |
| 10 | 20 ～ 482 | 9 ～ 20 | 5 ～ 10 |
| 12 | 30 ～ 582 | 9 ～ 20 | 5 ～ 10 |
| 15 | 30 ～ 660 | 10 ～ 25 | 6 ～ 13 |
| 20 | 40 ～ 656 | 12 ～ 30 | 8 ～ 15 |
| 25 | 50 ～ 656 | 12 ～ 30 | 8 ～ 15 |
| 30 | 60 ～ 652 | 14 ～ 35 | 10 ～ 18 |
| 35 | 70 ～ 648 | 16 ～ 45 | 12 ～ 23 |
For more informaitons （the price,delivery time,moq etc）about the ceramic plunger,please contact us or email:admin@cerampart.com
Ceramic spare parts for pump series
| Cylinder | Valve Plate | Piston | Set Plate |
| Ball Guide | Pump Liner | Shaft | Shoe Plate |
| Pin | Rod | Ring And Sealing Parts | Washer |
| Disc | Block | Tube | Flange |
| Bushing | Sleeve | Impeller | Others... |
Applied to the pump
| Rotary lobe pump | Diaphragm pump | Vane pump | Progressing cavity pump |
| Rotary gear pump | Screw pump | Peristaltic hose | Plunger Pumps |
| Piston pump | Gear pump | Bladder Pumps | Double Diaphragm Pumps |
| Peristaltic Pumps | Rotary Lobe Pumps | Rotary Vane Vacuum Pumps | Others... |
Ceramic materials(include but not limited belows)
· 95%--99.99% Alumina (Al2O3) · Silicon Carbide · Silicon Nitride · TTZ: Magnesia partially stabilized Zirconia (ZrO2)
· YTZP: Yttria partially stabilized Zirconia (ZrO2) · ZDY: Yttria fully stabilized Zirconia (ZrO2)...
· 95%--99.99% Alumina (Al2O3) · Silicon Carbide · Silicon Nitride · TTZ: Magnesia partially stabilized Zirconia (ZrO2)
· YTZP: Yttria partially stabilized Zirconia (ZrO2) · ZDY: Yttria fully stabilized Zirconia (ZrO2)...
|
|
Al 2O 3 |
ZrO2/Y2O3 | ZrO2/MgO | MgO | SiC | Si3N4 Reaction sintered | Si3N4 Hot pressed | ALN |
| Physical properties | ||||||||
| Density (g/cm3) | 3,9 | 5,9 | 5,75 | 3,58 | 3,2 | 3,27 | 3,29 | 3,26 |
| Molecular weight (g/mole) | 102 | - | - | 40,4 | 40,1 | 140 | 140 | 41 |
| Maximum service temperature air (°C) | 1700- 1800 | 1500 | 1000 | 2200 | 1500 | 1200- 1500 | 1100- 1600 | 1000- 1800 |
| Mechanical properties | ||||||||
| Hardness (Mohs) | 9 | - | - | 5,5 | 9 | - | - | 7 |
| Modulus of elasticity (GPa) | 300-400 | 200 | 200 | 250-300 | 420 | 170-220 | 280-310 | 318 |
| Poisson's ratio | 0,25 | - | - | 0,18 | 0,14 | 0,25-0,26 | 0,27 | 0,25 |
| Fracture toughness (MPa.m1/2) | 2-3 | 7-13 | 6-10 | - | 2,5-3,5 | 3,5-5 | 6,1 | 4,5 |
| Electrical properties | ||||||||
| Dielectric constant | 9-10 | - | - | 9-10 | - | 10 | 10 | 9,2 |
| Electrical resistivity at 20°C (Ohm.cm) | >10 14 | 10 13-10 14 | >10 10 | - | 10 2-10 6 | >10 7 | 10 12- 10 15 | >10 14 |
| Dielectric strength (kV/mm) | 10-20 | 9 | 2-10 | - | - | - | - | 15 |
| Thermal properties | ||||||||
| Specific heat (J/K/kg) | 900 | 400-500 | 420 | 870-880 | 750 | 690 | 680-800 | 800 |
| Thermal conductivity (W/m/K) at 20°C | 26-35 | 2,2-3,2 | 1,5-2,5 | 40-50 | 63-155 | 9-30 | 15-43 | 180 |
| Coefficient of thermal expansion ( 10-6) from 20 to 1000°C | 8-9 | 10-11 | 5-16 | 10-13 | 4-5 | 3 | 3,3 | 4,4-5,3 |
| Melting point (°C) | 2050 | 2590 | - | 2800 | 2500 | 1900 | 1900 | 2200 |
|
Customization & Machining Service: As a ceramic plunger manufacturer,us offer a wide of the ceramic plunger specification,and customized&machinables. Get a Quote On Your Customized Plunger Now!! or up a files by EMAIL. Our Custom Capabilities: 1.High Purity Martoxid Powder 2.OEM Support, More Than 10 Technicians With 5-Year R&D Experience 3.35000 ㎡workshop, annual output could reach hundred million pieces. 4.All crafts are inspected strictly based on drawings,checked each month. 5.Best Service And Quick Delivery Via Fedex,DHL,UPS,TNT Etc. Lead time: within 20 working days after comfirmed order. the samples within 3 days |
|
|||||||||||||||||||||||||||
FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-20 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.
Feedback
1. For any query or doubt, please contact us firstly, we will update with you soon;
2. For any other satisfaction, please also feedback to us, which could improve our service better and better.
| For more information about ceramics parts,please contact our engineers in time >>> |
  |
